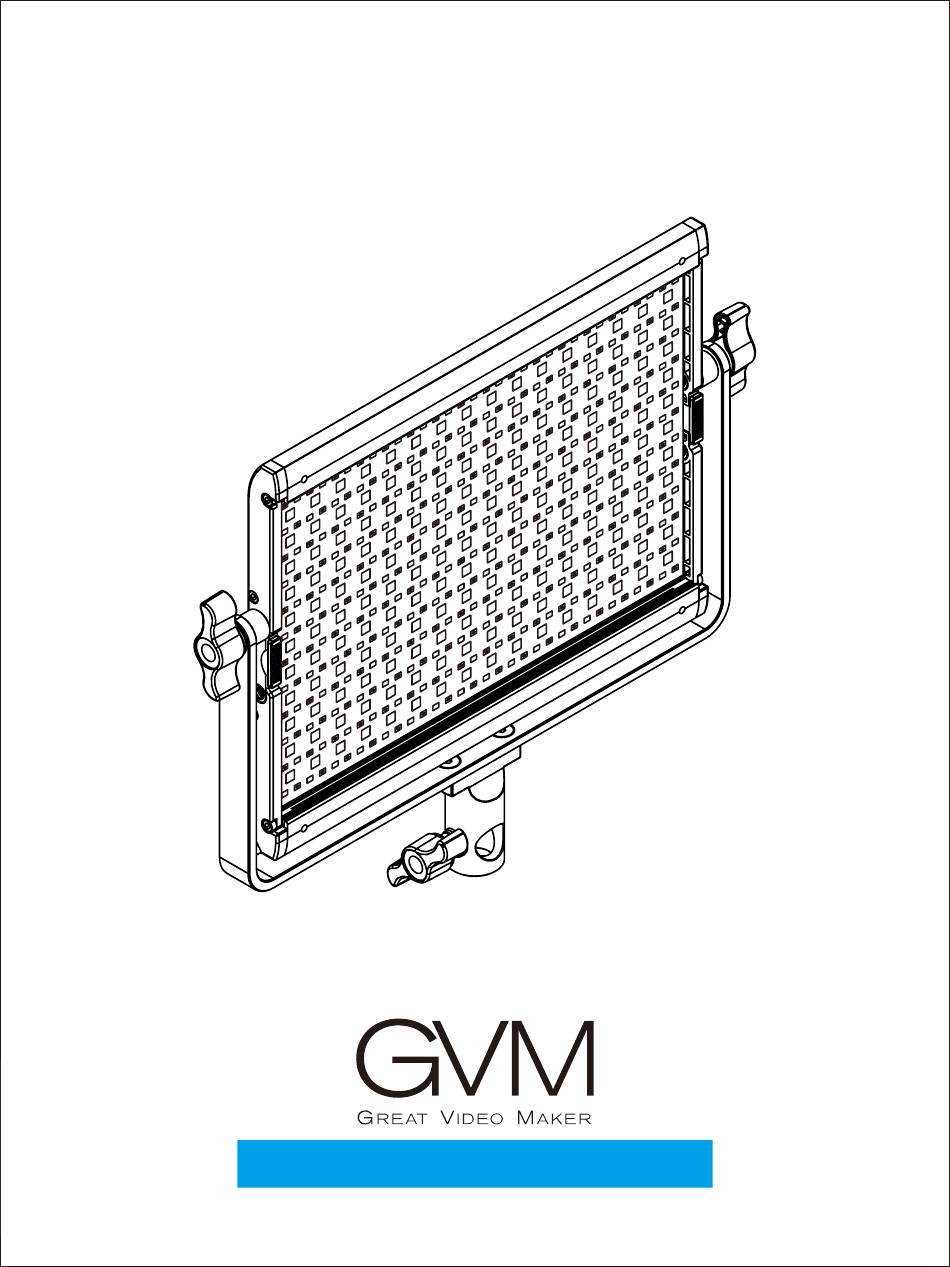

- Page 1 GVM-680RS / GVM-880RS...
-
Page 2: Daftar Isi
DAFTAR ISI Product introduction ------------------------------------------- Page 1 Disclaimers -------------------------------------------------------- Page 2 Precautions ------------------------------------------------------- Page 2 Product Detail ------------------------------------------------- Page 3~4 Product structure analysis ------------------------------------ Page 5 Installation method ---------------------------------------- Page 6~8 Accessories installation method ---------------------------- Page 9 Description of product control keys ----------------------- Page 10 Function introduction and instruction for use... -
Page 3: Pengenalan Produk
PENGENALAN PRODUK Welcome to use "GVM-680RS / GVM-880RS". This product is specially designed for senior photographers. The product usage scenarios are suitable for live broadcast/outdoor/studio photography, etc., and can also be used for YouTube video shooting. The main features of the product are: ①... - Page 4 CATATAN PENTING Before using this product, please read the instructions carefully and make sure use the product correctly. If you don’t obey the instructions and warnings, you maybe cause harm to yourself and the people around, or even damage the product and other things around.
- Page 5 GVM-680RS SPESIFIKASI PRODUK Product model : GVM-680RS Brand : GVM Product Name : Photography lights Product Type : Photography Fill Light Product material : Aluminum alloy Lamp beads quantity : 560 Color rendering index : ≥97 Color temperature : 3200K~5600K Hue : RGB 0~360°...
- Page 6 GVM-880RS SPESIFIKASI PRODUK Product model : GVM-880RS Brand : GVM Product Name : Photography lights Product Type : Photography Fill Light Product material : Aluminum alloy Lamp beads quantity : 752 Color rendering index : ≥97 Color temperature : 3200K~5600K Hue : RGB 0~360°...
- Page 7 BAGIAN PRODUK Soft light spot locking mouth LED lamp beads Angle fixing knob U-frame Lamp rack interface Lamp holder fixing knob Lamp rack interface LED display screen Cooling hole Button Battery tank Mode button MODE Adapter Battery Adapter CCT / HUE / SAT / SCE interface Power switch Brightness...
-
Page 8: Cara Pemasangan
CARA PEMASANGAN The lamp can be installed and fixed on the bracket by rotating the knob clockwise, and unloaded by rotating in the counterclockwise direction. - Page 9 Insert the diffuser from the side of the light panel. Loosen the adjustment knobs on both sides of the U-bracket, adjust the angle of the panel you need, and then tighten the adjustment knobs on both sides of the U-bracket.
- Page 10 There are two power supply modes to choose. ① Connect the power cord and adapter for power supply. ② Purchase two other suitable lithium batteries and use them for power supply. ( both battery cells must be plugged in to power ) Batter y Installation Slot （Battery sold separately）...
- Page 11 CARA PEMASANGAN AKSESORIS Only some packages include the following accessories, subject to the actual purchase of the package Light control folding : Light control folding can control the Angle of light. Align the front mounting holes with the screw holes of the hinges and lock the latches with screws.
- Page 12 CARA PENGGUNAAN TOMBOL PADA PRODUK S C : C H : Rotate Slave Master CCT : HUE : TIM : SAT : MODE Battery Adapter CCT / HUE / SAT / SCE DC15V power input interface Power switch Mode control button: Change mode control Change channel button: When is in master/slave mode, press this button to select the channel.
- Page 13 CARA PENGGUNAAN MENU ① LED screen： The screen display the current brightness, control mode, light mode, light parameters, scene number, channel numerical, and battery power of the light. Channel value S C : C H : Battery power Scene number Rotate (lights only when the light mode is a scene)
- Page 14 Master mode: Master mode: Adjust the light and channel of the light through the controller behind the light, and the slaves of the same channel will also be adjusted synchronously. APP mode: APP mode: Adjust the light parameters through APP. Short press the compound knob to switch the light mode, which are: CCT, HUE, SAT;...
- Page 15 In APP mode, connect to APP and adjust hue through APP. ⑥ Adjust SAT: range 0%~100% In Master mode / Rotate mode, short press the composite knob to switch the light mode to SAT, and then turn the composite knob button to adjust the color purity.
- Page 16 ⑩ On-line control (Joint control between lamps): Prepare two or more photography lights, set one to Master mode, and the others to Slave mode, and set the channel (CH) of the master and slave. When the master and slave channels are the same, the slave of the same channel can be synchronously controlled through the controller behind the master.
- Page 17 Scan the QR code on the back of the manual to download the APP Turn on the video light and set the mode to APP mode. Open the “GVM LED” application software on the phone ( The phone needs to turn on bluetooth and →...
- Page 18 PERAWATAN Do not put the product in a highly humid, strong electromagnetic field, direct sunlight, high-temperature environment. If not use the product for a long time, disconnect the power and take out the battery. Clean：Before clean, disconnect the power plug. And use wet cloth rather than any Clean：...
- Page 19 Solution Check the product Phenomenon Check if the mode were set as The brightness/ slave mode, lightness and color Pressthe“MODE”button for once, color temperature temperature of the products switch the mode from slave mode knob is out of cannot be controlled in slave to master mode.
- Page 20 ISI DALAM PAKET Q u a n t i t y N a m e N o t e s GVM- GVM- GVM- GVM- GVM- GVM- 680RS 680RS 880RS 880RS 680RS 880RS Photography lights Power cord Adapter Diffuser Folding Light stand...
- Page 21 GVM Official Facebook Download APP website Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA...
