Summary of Contents for GVM GVM-PRO-SD200B

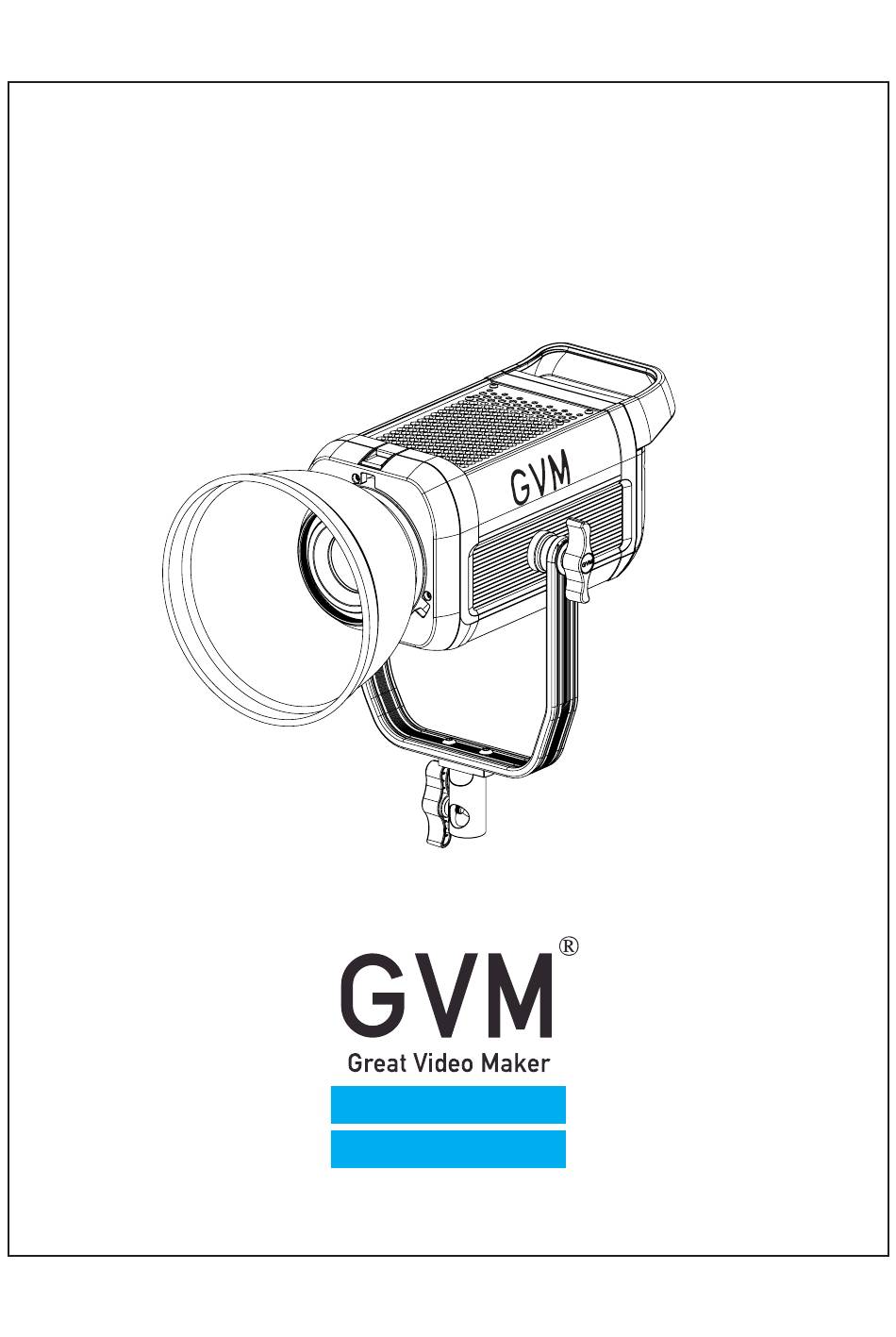

- Page 1 封面 GVM-PRO-SD200B GVM-PRO-SD300B...
-
Page 2: Table Of Contents
Product introduction ---------------------------------------------------------- Page 3 Warning ------------------------------------------------------------------------ Page 3 Use and save ------------------------------------------------------------------ Page 4 Disclaimers -------------------------------------------------------------------- Page 4 GVM-PRO-SD200B product parameter -------------------------------------- Page 5 GVM-PRO-SD300B product parameter -------------------------------------- Page 6 Product structure diagram ---------------------------------------------------- Page 7 Installation method ------------------------------------------------------- Page 8~10 Description of product control keys ----------------------------------------- Page 11 Function introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is a professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow cautions below: 1．Read the product manual carefully before use. - Page 4 15.When cleaning the device, do not wipe it with a wet cloth. Use a dry and soft cloth to wipe off the dirt. 16.If an extension cord is required, it needs to have the necessary capacity o power the respective unit. Using an extension cord with a lower current capacity the devices need may cause overheating.
-
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our "GVM-PRO-SD200B/GVM-PRO-SD300B", this product is designed for senior photography enthusiasts, The product is suitable for live broadcast / outdoor / film shooting / studio photography，It can also be used for YouTube video shooting. 1．It has high-definition COB beads, which help to restore and enrich the color of objects, providing you with natural and vivid shooting effects. -
Page 6: Use And Save
USE AND SAVE Do not place the product in high humidity, strong electromagnetic field, high temperature environment, or under direct sunlight. If the product is not to be used for a long time, disconnect the power supply. Clean: Please unplug the power before cleaning. And use a damp cloth instead of any detergent or soluble liquid, so as not to damage the surface layer. -
Page 7: Gvm-Pro-Sd200B Product Parameter
GVM-PRO-SD200B PRODUCT PARAMETER Brand: GVM ◆ Product name: Photography lights ◆ Product Type：Photography fill light ◆ Function/Features: A variety of light effect mode, high-display finger light beads ◆ ◆ Control mode: APP Bluetooth MESH network control, Wireless remote control, Light body manipulation and control, DMX ◆... -
Page 8: Gvm-Pro-Sd300B Product Parameter
GVM-PRO-SD300B PRODUCT PARAMETER Brand: GVM ◆ Product name: Photography lights ◆ Product Type：Photography fill light ◆ Function/Features: A variety of light effect mode, high-display finger light beads ◆ ◆ Control mode: APP Bluetooth MESH network control, Wireless remote control, Light body manipulation and control, DMX ◆... -
Page 9: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Vents Bowens bayonet Angle lock knob Light beads U-frame Lamp holder fixing knob Light Stand Interface Menu button Return button Mode button Cooling button MODE MENU BACK COOL Display screen Knob ②: Knob ①: INT/SELECTOR CCT/SPD CCT adjustment / PUSH Intensity adjustment / SPEED adjustment... -
Page 10: Installation Method
INSTALLATION METHOD Loosen the light stand fixing knob, install the light to the light stand as shown below, then tighten the light stand fixing knob. Loosen the angle locking handle, adjust the angle of the spotlight, then turn the angle locking handle tightly. - Page 11 Insert the standard cover into the corresponding Bowens bayonet socket of the light, then turn it clockwise gently. To remove the cover on the light, pull it outward and rotate it counterclockwise. Install Uninstall Install the light mixing mirror: Screw the light mixing mirror into the socket clockwise to install it and do the opposite to uninstall.
- Page 12 Connect the power cord to the power supply. DC IN DC IN GVM-PRO-SD200B GVM-PRO-SD300B...
-
Page 13: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS MODE MENU BACK COOL INT/SELECTOR CCT/SPD PUSH DMX IN DMX OUT DC IN Display: Display current settings, modes and parameters. Mode key: light mode switch button. Menu key: press this key to enter the settings menu. Return key: Press this key to return to the previous level menu. -
Page 14: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① Menu key (MENU): Press the MENU button to enter the menu setting screen → Rotate [Knob 1] to select the item → Press [Knob 1] to enter the item setting screen → Set the parameters of the item by pressing or rotating [Knob 1] →... - Page 15 Figure6 FAN SETTINGS (Figure 6): Set the cooling fan mode. LANGUAGE (Figure 7): Figure7 Set the system language. SYSTEM SETTINGS (Figure8): View system information and Figure8 restore Factory Settings. ② Mode key（MODE）： Press MODE button ,enter the main page of mode selection Figure 9 (Figure 9) →...
-
Page 16: App Control
APP CONTROL APP download method (Scan the QR code on the back of the manual to download the APP) Android version : Official website QR code, Google Play, Figure 1 Huawei Store, etc. iOS version : App Store Register Account Register and sign in with your email address;... - Page 17 Equipment management 1．After successfully adding your 2．Click the device bar to enter lighting device, your device the device control. (Figure 4) will be displayed in the “My Devices" list; (Figure 3) Figure 4 Figure 3...
-
Page 18: Simple Faults And Troubleshooting
SIMPLE FAULTS AND TROUBLESHOOTING Phenomenon Check the product Troubleshooting ① W h e t h e r t h e c o n n e c t i o n Make sure the adapter is well between the lamp and the contacted with the power plug. -
Page 19: Packing List
PACKING LIST Name Quantity Notes Photography Light Snoot Power Cable AC Power AC Power Fixed Strap Carrying Case Spotlight protective cover Magic cable tie Light Mixing Mirror Instructions PRECAUTIONS 1．The product is not waterproof, it needs to be protected against wet conditions, condensation, dripping and splashing water, air humidity. -
Page 20: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is an important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address... - Page 21 8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that render the product unable to function properly are not covered by the warranty.
- Page 22 封底 GVM Official website Facebook Download APP Huizhou City Latu Photographic Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA...
