Summary of Contents for GVM GVM-CXT-36

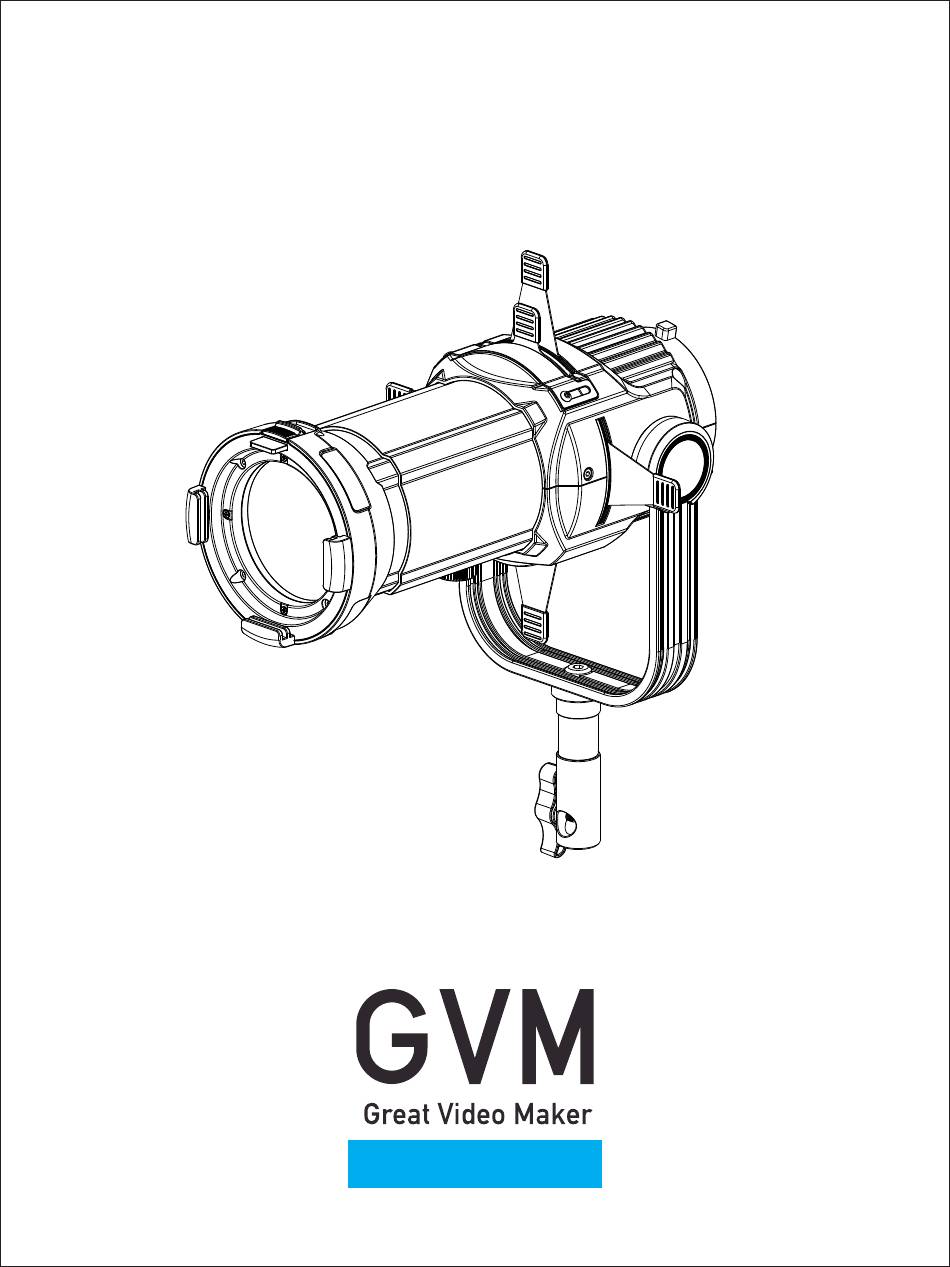

- Page 1 GVM-CXT-36...
-
Page 2: Table Of Contents
CONTENTS Product Introduction ---------------------------------------------------------- Page 1 Disclaimers -------------------------------------------------------------------- Page 1 Safety Instructions ------------------------------------------------------------ Page 2 Warning ----------------------------------------------------------------------- Page 2 High Temperature Warning --------------------------------------------------- Page 2 Product Parameter ------------------------------------------------------------ Page 3 Product Parts Introduction ---------------------------------------------------- Page 3 Product Structure Analysis ---------------------------------------------------- Page 4 Installation And Use ------------------------------------------------------- Page 5~8 Packing List -------------------------------------------------------------------- Page 8 Illuminances Used With Different Products ---------------------------------- Page 9... -
Page 3: Product Introduction
PRODUCT INTRODUCTION Welcome to use " GVM-CXT-36". This product is an optical accessory composed of a high-quality optical system. It has undergone rigorous optical calculations and experimental research and development. It can be used with the GVM-PR150D, GVM-PRO-SD200B, GVM-PRO-SD300B, and other series (≤ 300W) of photography lights, transforming instantly into spotlight, follow light, and projector light. -
Page 4: Safety Instructions
Allow the device to cool completely before storing it, and then place it in the corresponding location in your handbag. HIGH TEMPERATURE WARNING GVM-CXT-36 is used with a 300W photography light for a long time, the surface temperature reaches up to 70 degrees Celsius. Please do not touch it with your hands! -
Page 5: Product Parameter
Product Type: Photographic Light Optical Kit ◆ Compatible Models: ≤ 300W Bowens Photography Light ◆ Functional Features: Used with GVM Photography Lights, to provide users with focusing, chasing, beam cutting, optical zoom, beam pr ojection, and beam shaping. ◆ Lens: 36°... -
Page 6: Product Structure Analysis
PRODUCT STRUCTURE ANALYSIS Bowens Mount Cut Slice Slide Show Folder Aperture Mount & Cover Color Chip Clip Lock Color Chip Clip Mount Focus Knob U-shaped Bracket Support Base Fastening Screws Angle-fixing Handle... -
Page 7: Installation And Use
INSTALLATION AND USE 1. Install the lens Insert the lens into the condenser tube and fix the lens by passing the focusing knob through the sliding groove of the condenser tube. ② ① 2. Install the slide show Fix the slide into the slide clip and insert it into the corresponding slot of the condenser. - Page 8 3. Install the color chip holder Fix the color chip to the color chip clip, push back the color chip clip lock and snap the color chip clip into the color chip card slot. ② ① 4. Install the aperture Loosen the screws on both sides of the aperture cover, move the aperture cover, and insert the aperture into the aperture groove.
- Page 9 5. Adjust the angle Loosen the angle-fixing handle to adjust the angle, and then tighten the angle- fixing handle. 6. Mount to tripod Insert the condenser tube into the tripod sleeve, adjust the angle and tighten the knob to secure the condenser tube. Note: The tripod is an optional item and is not included in the set.
-
Page 10: Packing List
7. Install and remove photography lights Installation: Align the video light with the mount of the condenser, insert it, and rotate it to the right. Disassembly: Slide the lock on the video light and turn it to the left. Install Disassembly PACKING LIST Name... -
Page 11: Illuminances Used With Different Products
ILLUMINANCES USED WITH DIFFERENT PRODUCTS Paired with Paired with Paired with GVM-PR150D GVM-PRO-SD200B GVM-PRO-SD300B Illuminances at different Illuminances at different Illuminances at different distances and color distances and color distances and color temperatures. temperatures. temperatures. Distance Illuminance Distance Illuminance Distance... -
Page 12: Spot Uniformity
SPOT UNIFORMITY Paired with GVM-PR150D, diameter 1M, spot uniformity - 50 - 40 - 30 - 20 - 10 2030 lux 2322 lux 2614 lux 2906 lux 3198 lux 3490 lux 3174 lux 2858 lux 2542 lux 2326 lux 2015 lux... -
Page 13: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... - Page 14 8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty.
- Page 15 GVM Official Website Facebook Huizhou City Latu Photographic Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154，USA...
