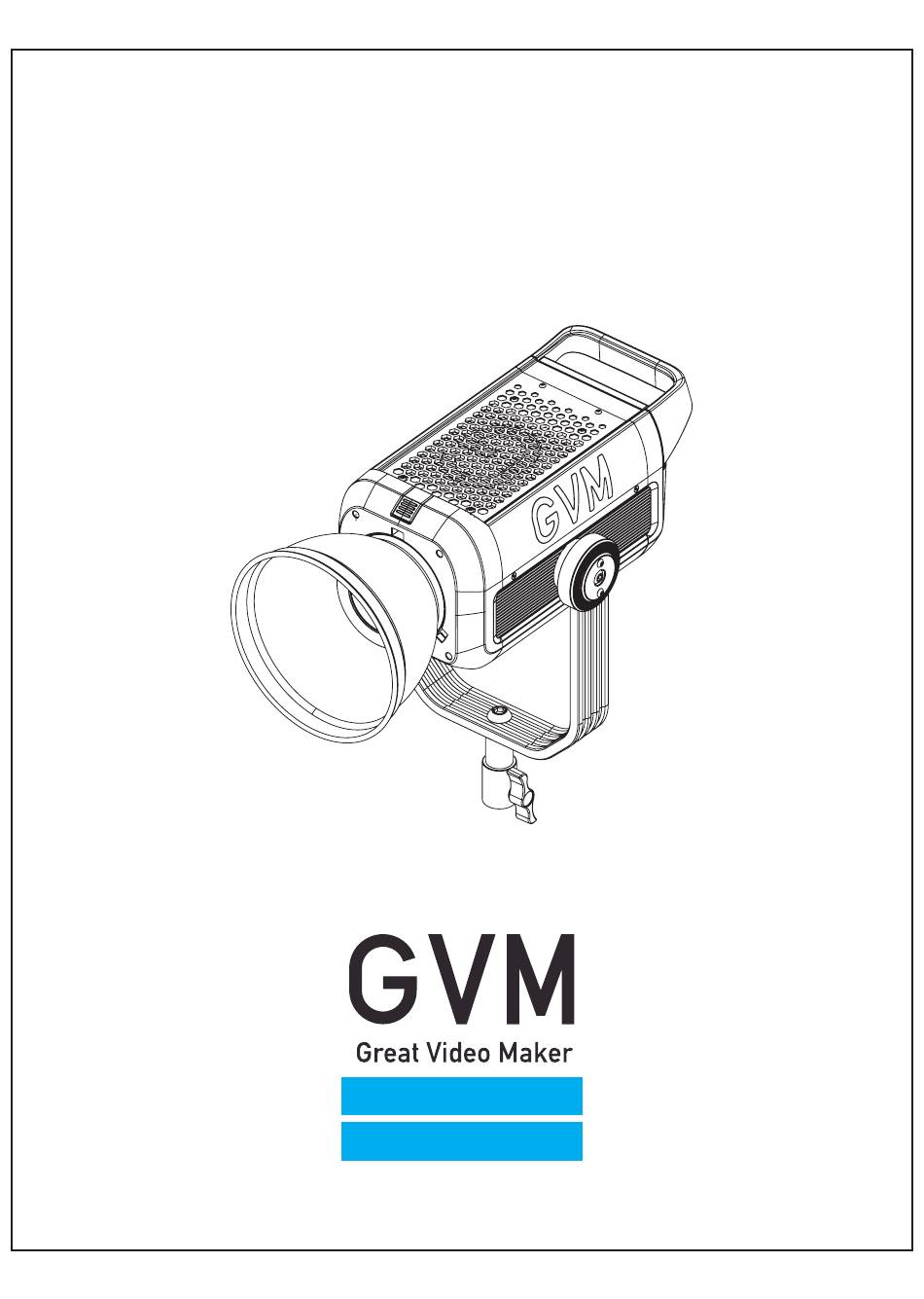

- Page 1 GVM-PRO-SD400B GVM-PRO-SD500B...
-
Page 2: Table Of Contents
CONTENTS Product introduction ---------------------------------------------------------- Page 1 Disclaimers -------------------------------------------------------------------- Page 1 GVM-PRO-SD400B Product parameter --------------------------------------- Page 2 GVM-PRO-SD500B Product parameter --------------------------------------- Page 3 Product structure diagram ---------------------------------------------------- Page 4 Installation method -------------------------------------------------------- Page 5~9 Description of product control keys ---------------------------------------- Page 10 Function introduction &... -
Page 3: Product Introduction
PRODUCT INTRODUCTION Welcome to use " GVM-PRO-SD400B/GVM-PRO-SD500B", this product is designed for senior photography enthusiasts, The product is suitable for live broadcast / outdoor / film shooting / studio photography，It can also be used for YouTube video shooting. ① It has high-definition COB beads, which help to restore and enrich the color of objects, providing you with natural and vivid shooting effects. -
Page 4: Gvm-Pro-Sd400B Product Parameter
GVM-PRO-SD400B PRODUCT PARAMETER ◆ Brand: GVM ◆ Product Name: Photography light ◆ Product type: photography fill light ◆ Function control: multiple light effect modes, high display index lamp beads ◆ Control mode: DMX, wireless remote control, light body control, APP Bluetooth MESH network control ◆... -
Page 5: Gvm-Pro-Sd500B Product Parameter
GVM-PRO-SD500B PRODUCT PARAMETER ◆ Brand: GVM ◆ Product Name: Photography light ◆ Product type: photography fill light ◆ Function control: multiple light effect modes, high display index lamp beads ◆ Control mode: DMX, wireless remote control, light body control, APP Bluetooth MESH network control ◆... -
Page 6: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Vents Control input Bowens mount lamp beads Vents U-frame Fixture knob Angle lock handle Light stand interface 灯 Return key Display screen Menu key Mode key Battery plate Cooldown key controller output Knob①: interface Brightness adjustment / selection confirmation DMX output interface... -
Page 7: Installation Method
INSTALLATION METHOD Loosen the light stand fixing knob, install the light to the light stand as shown below, then tighten the light stand fixing knob. Loosen the angle locking handle, adjust the angle of the spotlight, z then turn the angle locking handle tightly. - Page 8 Insert the Bowens bayonet of the standard cover into the Bowens bayonet of the lamp correspondingly, and then turn it clockwise lightly. you can install the standard cover to the light. Push the Bowens removal catch upward to the right while rotating the standard cover counter clockwise to remove the standard cover.
- Page 9 Follow the steps shown in the figure below to install the controller on the controller fixing clip first.
- Page 10 As shown in the figure below, use the control wire to connect the light and the controller.
- Page 11 There are two power supply modes to choose from: ①Use the AC power cord for power supply. ② Use two V button batteries for power supply. (Batteries must be inserted into both battery slots to provide power, and the power is halved when using batteries.)
-
Page 12: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS Display: Display current settings, modes and parameters. Mode key: light mode switch button. Menu key: press this key to enter the settings menu. Return key: Press this key to return to the previous level menu. Cooling key: start a large air volume cooling until the temperature is reduced to a touchable temperature. -
Page 13: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① MENU ： Figure 1 DMX SETTINGS (Figure 1): Set the DMX parameters, [address (001-512)] and configure the mo mode [(8bit/16bit)]. Figure 2 DIM CURVE (Figure 2): Set the dimming curve, [linear / logarithmic / exponential / S curve]. - Page 14 Figure 7 LANGUAGE (Figure 7): Set the system language. SYSTEM SETTINGS (Figure 8): Figure 8 View x system information and restore Factory Settings. ① MODE ： Figure 9 Press MODE button ,enter the main page of mode selection (Figure 9) →...
-
Page 15: App Control
APP CONTROL APP download method (Scan the QR code on the back of the manual to download the APP) Figure 1 Android version : Official website QR code, Google Play, Huawei Store, etc. iOS version : App Store Register Account Register and sign in with your email address;... -
Page 16: Use And Save
Equipment management ① After successfully adding your ② Click the device bar to enter the lighting device, your device will be device control. (Figure 4) displayed in the "My Devices" list; Figure 4 (Figure 3) Figure 3 USE AND SAVE Do not place the product in high humidity, strong electromagnetic field, direct sunlight, high temperature environment. -
Page 17: Simple Faults And Troubleshooting
SIMPIE FAULTS AND TROUBLESHOOTING Troubleshooting Check the product Phenomenon ① Whether the connection Make sure the adapter is well between the lamp and the contacted with the power plug. power supply is normal. The switch indicator does ② When using a lithium battery not light up. -
Page 18: Packing List
PACKING LIST Name Quantity Notes Photography lights AC Power Cable Controller cable Controller Controller clip Standard cover Spotlight protective cover Magic cable tie Carrying case Manual PRECAUTIONS ① When using DC/battery power supply, ensure that the DC/battery power supply voltage is 24-36V/180W range to achieve maximum brightness; ②... - Page 19 GVM Official Facebook Download APP website Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA...
