GVM -PRO-YU600C Manual page 13

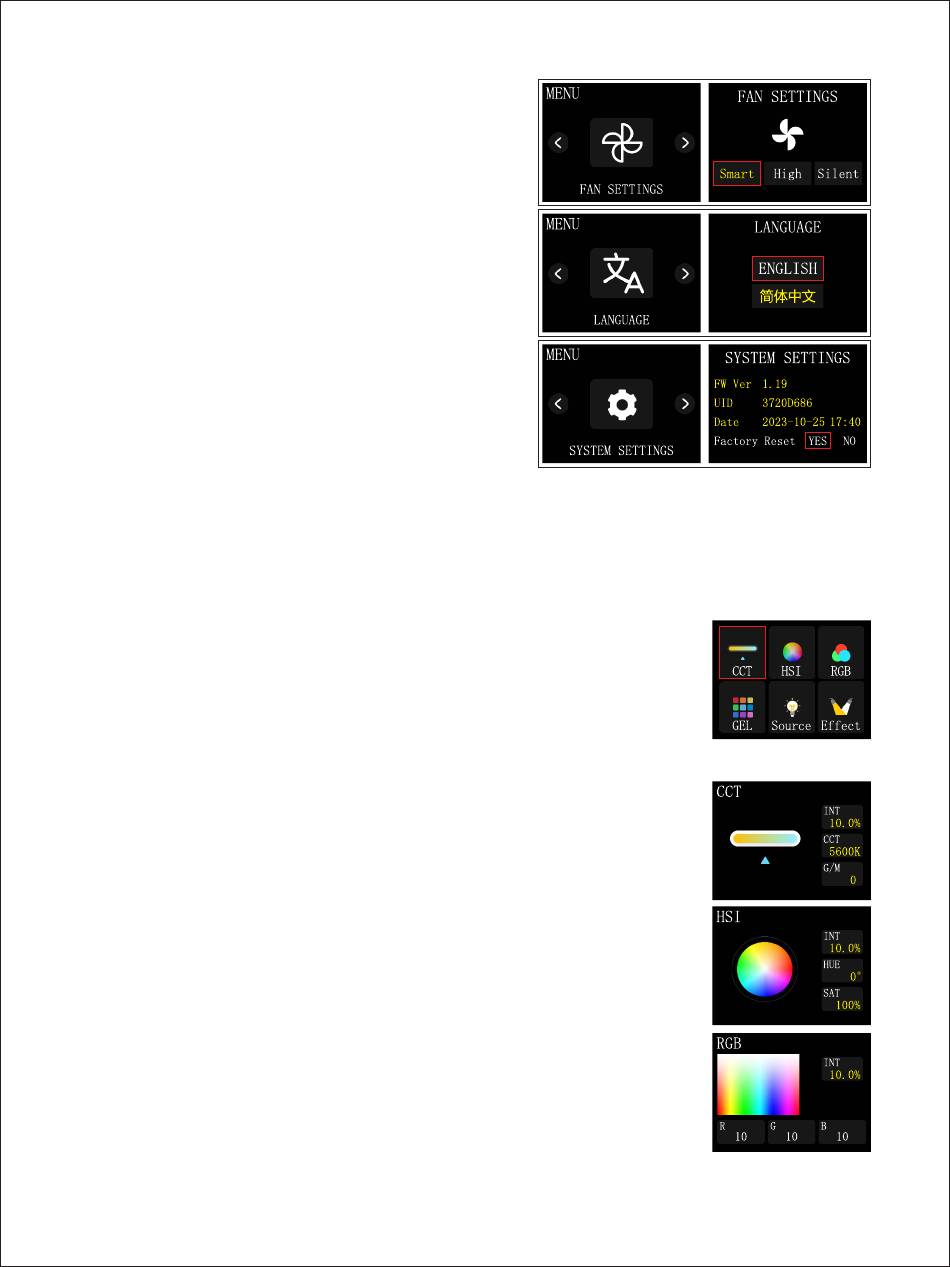

FAN SETTINGS
(Figure6)
fan mode.
LANGUAGE :
(Figure7)
SYSTEM SETTINGS
information and restore factory settings.
② MODE ：
6 lighting modes : CCT, HSI, RGB, GEL color paper, light source
matching, and field light effect.
Press the [MODE] button to enter the mode selection main page
→ rotate [Knob 1] to select the mode → press [Knob 1] to enter
the corresponding mode interface → Set the parameter of the
project by pressing or rotating [Knob 1] → press [BACK] Back to
previous.
CCT MODE : White light mode with adjustable light intensity and
color temperature.
[Knob1] Adjust INT, [Knob2] Adjust CCT, [Knob3] Adjust G/M.
HSI MODE : Color light mode, adjustable hue, saturation, light
intensity(HSI=hue, saturation, light intensity), 36 million adjustable
colors.
[Knob 1] Adjust INT, [Knob 2] Adjust HUE, [Knob 3] Adjust SAT.
RGB MODE : Color light mode, adjustable red light, green light,
blue light, to achieve 1.6X10 adjustable colors.
[Knob 1] Adjust overall INT, Press [Knob 1] Button, Switch to RGB
adjustment, [Knob 1] Adjust the brightness of the red light,
[Knob2] Adjust the brightness of the green light, [Knob 2] Adjust
the brightness of blue light.
: Set the cooling
Set system language.
: View system
(Figure8)
10
Figure 6
Figure 7
Figure 8
11
