Summary of Contents for GVM GVM-PRO-YU150R

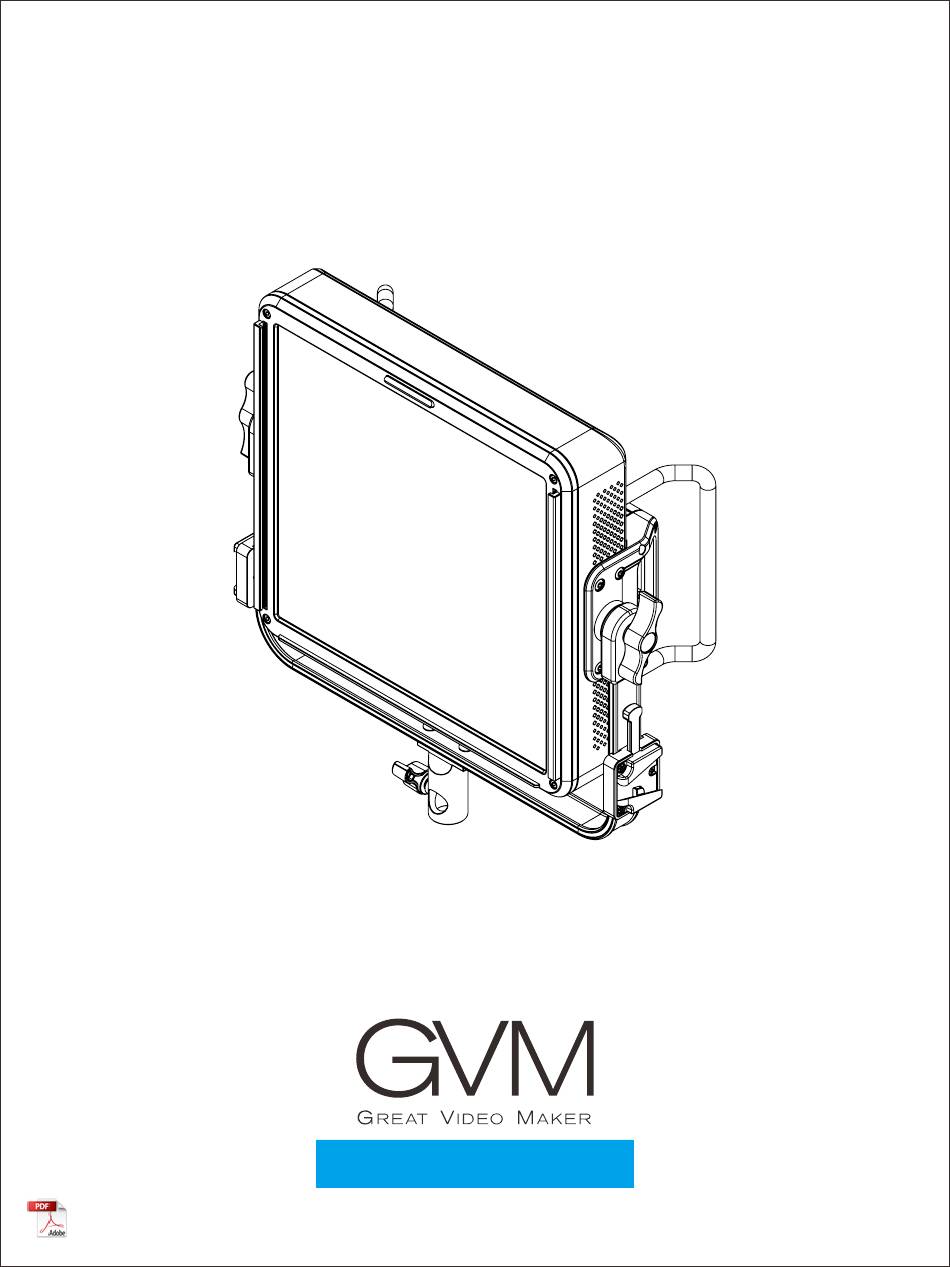

- Page 1 GVM-PRO-YU150R...
-
Page 2: Table Of Contents
C O N T E N T S Product introduction -------------------------------------------- Page 1 Disclaimers --------------------------------------------------------- Page 1 Product parameter ---------------------------------------------- Page 2 Product structure icon ------------------------------------------ Page 3 Installation method ------------------------------------------ Page 4~8 Description of product control keys ----------------------- Page 9 Function introduction &... -
Page 3: Product Introduction
③ APP control, which can be controlled by your iOS and Android smart mobile devices; At the same time, it supports Bluetooth Mesh networking, and can work with GVM brand devices that support Mesh networking to ready for group control. -
Page 4: Product Parameter
Brand: GVM ◆ Product Name: Photography light ◆ Product type: photography fill light ◆ Product model: GVM-PRO-YU150R ◆ Functions/features: Multi-scene mode / Bluetooth meshnet working / APP(Bluetooth connection) / DMX / high-definition indicator lamp beads ◆ Lumen: 17200lux/0.5m; 4640lux/1m ◆... -
Page 5: Product Structure Icon
PRODUCT STRUCTURE ICON Carrying handle Accessory lock Locking screw handle Carrying handle Battery plate Locking screw handle Battery plate Power switch DMX interface AC input DC/Battery input... -
Page 6: Installation Method
INSTALLATION METHOD Loosen the lamp holder fixing knob, install the lamp on the lamp holder as shown in the figure below, and then tighten the lamp holder to fix the knob. Loosen the locking screw handle, adjust the angle of the light, and then tighten the locking screw handle. - Page 7 Connect the AC power cord for the power supply. AC power cord connector The DC battery cable is connected to the power supply. DC/Battery powered interface (①+/②-)
- Page 8 Install two V-button batteries on the U-shaped frame, and then connect the batteries through the battery cable and light to supply power. (V button battery needs to be purchased separately) The installation steps of the diffuser are shown in the figure below.
- Page 9 The installation steps of the barn door are shown in the figure below. (The barn door needs to be purchased separately) The installation steps of the Honeycomb Grid are as follows. (Honeycomb Grid needs to be purchased separately)
- Page 10 The installation steps of the softbox are shown in the figure as below. (Softbox needs to be purchased separately)
-
Page 11: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS knob①: INT/SELECTOR/R, Multifunctional coding knob, "INT/SELECTOR/ R" can be adjusted by pressing or rotating knob②: CCT/HUE/G，Multifunctional coding knob, "CCT/HUE/G" can be adjusted by rotating knob③: SAT/GM/B, Multifunctional coding knob，"SAT/GM/B" can be adjusted by rotating Display: Displays current settings, modes, and parameters MODE: Lighting mode switch button MENU: Press this key to enter the settings menu BACK: Press this key to return to the previous menu... -
Page 12: Function Introduction & Instruction For Use
FUNCTION INTRODUCTION & INSTRUCTION FOR USE ① Menu (MENU) : Press the MENU button to enter the menu setting page → Rotate [Knob①] select project → Press [Knob①] Enter the project settings interface → Press or rotate [Knob①] set the parameters of the project → Press [BACK] Return to the previous menu DMX SETTINGS(Figure1) : SETTINGS DMX parameter, [ADDRESS(001-512)]... - Page 13 ② Mode key (MODE) : Press the [MODE] button to enter the mode selection main page → rotate [Knob 1] to select the mode → press [Knob 1] to enter the corresponding mode interface →Set the parameter of the project by pressing or rotating [Knob 1] Source Effect →...
-
Page 14: App Control
APP CONTROL APP download method (Scan the QR code on the back of the manual to download the APP) Android version : Official website QR code, Google Play, Figure 1 Huawei Store, etc. iOS version : App Store Register account Use your email to register and log in;... -
Page 15: Ues And Save
Device management ① After successfully adding your ② Click the device bar to enter lighting device, your device the device control. (Figure 4) will be displayed in the "My device" list; (Figure 3) Figure 4 Figure 3 USE AND SAVE Do not put the light in a highly humid, strong electromagnetic field, direct sunlight, or high-temperature environment. -
Page 16: Simple Faults And Troubleshooting
SIMPLE FAULTS AND TROUBLESHOOTING Phenomenon Check the product Solution ①Whether the light is connected Make sure the power cord plug t o t h e p o w e r s u p p l y i s is in good contact. energized normally. -
Page 17: Packing List
PACKING LIST Name Quantity Notes Photography Lights Power Cable Battery Connection Cable Need to be purchased Barn Door separately Need to be purchased Honeycomb separately Grid Need to be purchased Softbox separately Carrying Case Manual PRECAUTIONS ① When using DC/battery power supply, make sure the DC/battery power supply voltage is 24-36V/180W range to achieve maximum brightness;... - Page 18 GVM Official Facebook Download APP website Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA...
