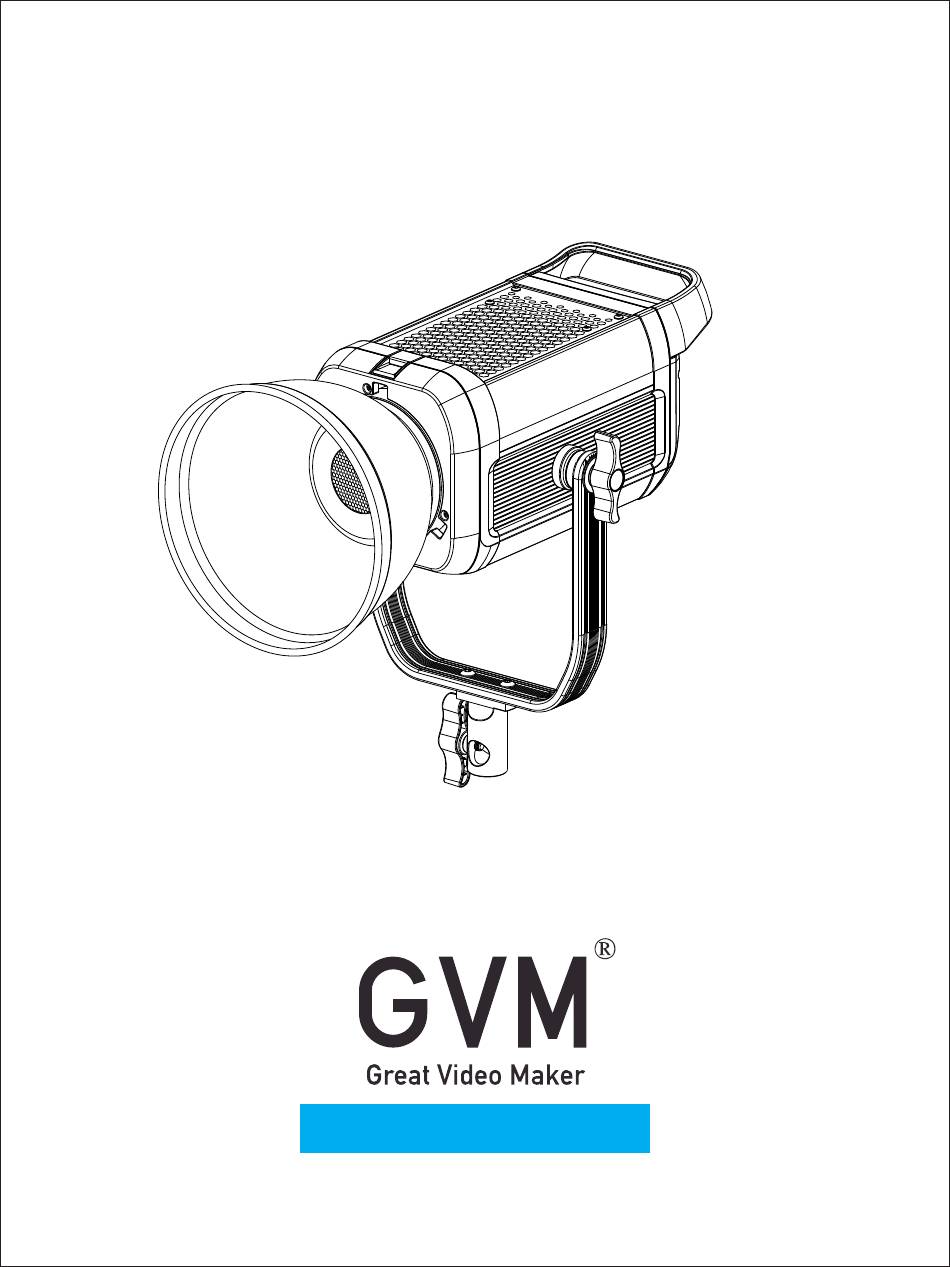

- Page 1 GVM-PRO-SD300C...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Precautions -------------------------------------------------------------------- Page 4 Product Structure Diagram --------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~7 Description Of Product Control Keys ----------------------------------------- Page 8 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our "GVM-PRO-SD300C”. This product is specially designed for photography and videography enthusiast. The product is suitable for use in live stream , outdoors , studio settings, and can also be used in YouTube video shooting. -
Page 6: Product Parameter
PRODUCT PARAMETER ◆ Brand: GVM ◆ Product Model : GVM-PRO-SD300C ◆ Product Name: Photographic Light ◆ Product Type: COB Video Light ◆ Functions & Features: Multiple Light Effect Modes, High CRI Light Chips ◆ Control Method: Bluetooth APP Control, Bluetooth Mesh Networking, Build in Light Control, Wireless Remote Control, DMX Control ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Cooling Vents Bowens Mount Rosette angle COB Light Chip locking handle Yoke T-Handle / Baby Pin Mounting Screw Baby Pin Receiver/ Mounting Column Menu button Return button Mode button Cooling button Display screen Knob 2: Knob 1: Parameter adjustment Brightness adjustment / Selection confirmation... -
Page 8: Installation Method
INSTALLATION METHOD Loosen the angle locking handle, adjust the angle of the spotlight, then tighten the angle locking handle to fix the light in desired position. Attach the adopter clamp to the light stand and tighten the fixing knob. - Page 9 Attach the power adapter to the adopter clamp. Loosen the light stand fixing knob, then mount the light onto the light stand as shown below, then tighten the light stand fixing knob to fix the light in place.
- Page 10 Insert the standard Bowens Reflector into the corresponding Bowens mount socket of the light, then turn it clockwise gently. To remove the reflector from the light, pull back the retaining clip and rotate the reflector counterclockwise. Install Uninstall Connect the power cord to the power supply. DC IN...
- Page 11 DESCRIPTION OF PRODUCT CONTROL BUTTONS MODE MENU BACK COOL INT/SELECTOR CCT/GM PUSH DMX IN DMX OUT DC IN Display screen: Display current settings, modes and parameters. Mode button: Light mode switch button. Menu button: Press this button to enter the menu setting page. Back button: Press this button to return back to the previous menu page.
- Page 12 FUNCTIONS INTRODUCTION & INSTRUCTIONS ① MENU: Press the [MENU] button to enter the menu setting page. Rotate [Knob 1] to select a sub menu. Press [Knob 1] to enter the corresponding menu interface. The menu setting interface includes output modes, DMX settings, DIM curve, WL settings, studio, frequency settings, fan settings, language, and system settings.
- Page 13 FREQUENCY SETTINGS: Rotate [Knob 1] to set the dimming frequency, the frequency range is 15KHZ-25KHZ. MENU FAN SETTINGS FAN SETTINGS: Rotate [Knob 1] to adjust the fan settings, short press [Knob 1] to confirm the Smart High Silent selection. FAN SETTINGS LANGUAGE: Rotate [Knob 1] to set the system language, supporting Chinese and English.
- Page 14 RGB mode: Color light mode, in this mode you can adjust red, green, blue light to achieve upto 16 billion colors. INT: Rotate [Knob 1] to adjust the brightness. R: Rotate [Knob 2] to adjust the [R] red light parameter. G: Short press and then rotate [Knob 2] to adjust the [G] green light parameter.
-
Page 15: App Control
APP CONTROL APP Download Method (Scan the QR code on the back of the manual to download the APP) Android Device：Official website QR code, Google Play, Huawei Store, etc. iOS Device：App Store Figure 1 Figure 2 Device-adding 1．Before adding a device, please make sure you have turned on your phone’s B l u e t o o t h a n d n e t w o r k d a t a , accessibility to Bluetooth and network... - Page 16 Account Login Figure 5 ◆ Use e-mail to get the verification code to log in (the first login automatically registers the account). (Figure 5) ◆ There may be a delay in sending the verification code, and the speed of delivery depends on the e-mail server you are using.
-
Page 17: Quick Troubleshooting
QUICK TROUBLESHOOTING Check the product Troubleshooting Issue Whether the connection The indicator Make sure the adapter is well between the light and the does not light up. connected with the power plug. power supply is normal. Follow these steps: 1. Turn on phone’s Bluetooth and While using the network data function, android APP to add a... -
Page 18: Use And Preservation
Warranty: Do not modify the product, or you will lose the right to maintenance. PACKING LIST Name Quantity Notes GVM COB Spotlight Standard Cover Power Cable Power Adapter Adopter Clamp Spotlight Protective Cover Magic Cable Tie... -
Page 19: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... - Page 20 8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty.
- Page 21 GVM Official website Facebook Download APP Huizhou City Latu Photographic Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 4301 N Delaware Ave, unit D. PHILADELPHIA, PA19137, USA...
