- Page 1 GVM-50RS Buku Manual...
-
Page 2: Pengenalan Produk

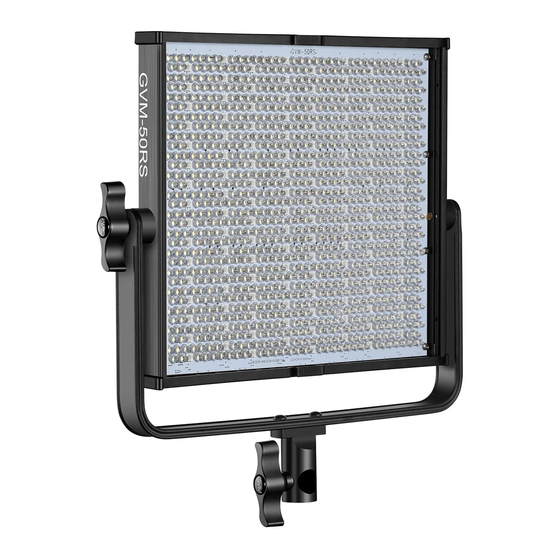

Pengenalan Produk Welcome to "GVM-50RS". This product is specially designed for senior photography enthusiasts. The product is suitable for live / outdoor / studio photography, and also for youtube video shooting. The main features of the product are: ① step-less adjustable RGB color and dual color temperature feature, color... - Page 3 Spesifikasi Brand : GVM Name : photography light Type : photography fill light Number : GVM-50RS Material : aluminum alloy Number of light beads : 384 Color-rendering Index : ≥97 Color Temperature : 3200K---5600K Luminance : 6500lux/0.5m, 1600lux/1m Function/Characteristics : RGB, APP, joint control, high color-rendering...
- Page 4 Bagian External diffuser mounting screw hole Angle fixing knob Folding installation LED lamp beads screw hole Soft light spot locking mouth U-frame Lamp rack interface Lamp holder fixing knob Lamp rack interface LCD display screen Cooling hole Integrated Battery tank control channel Select button Mode /...
- Page 5 Cara Memasang The lamp can be installed and fixed on the bracket by rotating the knob clockwise, and unloaded by rotating in the counterclockwise direction.
- Page 6 Insert the Subdued light board from the top of the light panel. Loosen the adjustment knobs on both sides of the U-bracket, adjust the angle of the panel you need, and then tighten the adjustment knobs on both sides of the U-bracket.
- Page 7 There are two power supply modes to choose. ① connect the power cord and adapter for power supply. ② purchase two other suitable lithium batteries and use them for power supply. ( both battery cells must be plugged in to power ) Batter y installation slot （b a tte ry l e a d ）...
- Page 8 Pemasangan Aksesoris Light control folding (aksesoris dijual terpisah) You can buy a set of light control folding to control the angle of light. Install the hinge: align the front mounting hole with the screw hole of the hinge, and lock the door latch with the screw.
- Page 9 External soft-board (aksesoris dijual terpisah) Make the light softer and achieve the effect of soft light box. Install the external Diffuser: install the diffuser support frame to the lamp, align the diffuser with the screw hole, and lock the diffuser with the screw.
- Page 10 Fungsi Bagian DC15V power input interface Power switch Mode button / WIFI reset button: Modes include host mode and slave mode; WIFI username and password reset button Channel addition and subtraction key: adjust channel ( 0~11 ) Brightness adjustment button: adjust the brightness ( 10%~99% ) Hue / Saturation / Color Temperature Adjustment Knob: Adjust Hue / Saturation / Color Temperature, Hue RGB, Saturation...
-
Page 11: Cara Menggunakan
Cara Menggunakan ① Mode selection： There are two kinds of more which are host mode and slave mode, switching through mode button (automatically as host mode when switch on the machine). In host mode, it is able adjust lightness, color temperature and channel value, and it is also able to connect APP, and control the parameters through APP. - Page 12 ⑦ Color temperature adjustment： Prepare two or more photography lights, set on as host mode and the other slave mode, and set a same channel value, in this way, it is able to control the lightness hue and saturation and color temperature of slave machine through adjusting the knob of the host machine.
- Page 13 WiFi ( ), after the mobile WiFi initial user name: GVM - LED, password: GVM - admin phone displays "connected GVM - LED", return to the APP main interface, when the APP main interface displays "RGB LED light ( successfully )", you can control the brightness,Hue,saturation, color...
- Page 14 WIFI username and password resetting It is able to reset the WIFI username and password if long press the WIFI reset button for over 5 seconds. After resetting, the username and the password will return to the initial ( WIFI username: GVM_LED, WIFI password: gvm_admin ) Catatan Keselamatan ①...
-
Page 15: Troubleshooting
Troubleshooting Troubleshooting Check the product Phenomenon make sure the adapter ① check the matching power adapter is well contacted with indicator light up or not. the switch the power plug indicator does ② when using lithium battery, make not light up charge the battery s u r e t h e r e ’s n o “... - Page 16 Catatan Penting Before using this product, please read the instructions carefully and make sure use the product correctly. If you don’t obey the instructions and warnings, you maybe cause harm to yourself and the people around, or even damage the product and other things around.
