MaxFit FE Series
Expandable Power Systems
Models Include:
MaxFit11FE
- 12VDC/24VDC @ 4A.
- 12VDC/24VDC @ 4A.
MaxFit13FE
- 12VDC/24VDC @ 4A.
- 12VDC/24VDC @ 6A.
MaxFit33FE
- 12VDC/24VDC @ 6A.
- 12VDC/24VDC @ 6A.
MaxFit35FE
- 12VDC/24VDC @ 6A.
- 12VDC @ 10A.
Installation Guide
Rev. MFE2PS072319
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
MaxFit37FE
- 12VDC/24VDC @ 6A.
- 24VDC @ 10A.
MaxFit55FE
- 12VDC @ 10A.
- 12VDC @ 10A.
MaxFit75FE
- 24VDC @ 10A.
- 12VDC @ 10A.
MaxFit77FE
- 24VDC @ 10A.
- 24VDC @ 10A.
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix MAXIMAL FIT MaxFit11FE
Summary of Contents for Altronix MAXIMAL FIT MaxFit11FE
- Page 1 MaxFit FE Series Expandable Power Systems Models Include: MaxFit11FE MaxFit37FE - 12VDC/24VDC @ 4A. - 12VDC/24VDC @ 6A. - 12VDC/24VDC @ 4A. - 24VDC @ 10A. MaxFit13FE MaxFit55FE - 12VDC/24VDC @ 4A. - 12VDC @ 10A. - 12VDC/24VDC @ 6A. - 12VDC @ 10A.

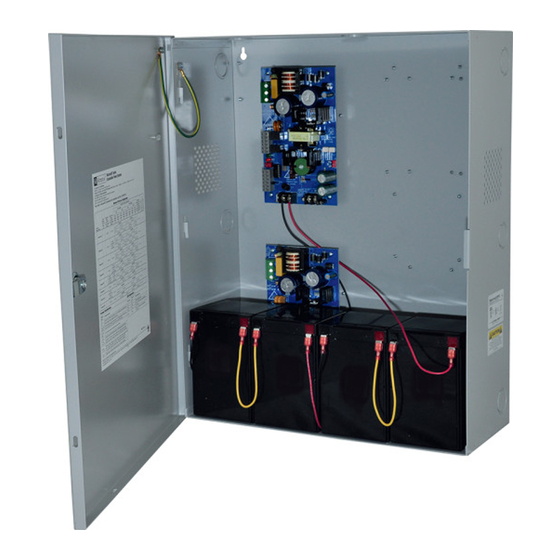

- Page 2 MaxFitFE Series Overview: Altronix MaxFit Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC or 24VDC via single output power supply/ charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
- Page 3 *MaxFit13FE, MaxFit33FE, MaxFit35FE, MaxFit37FE, MaxFit55FE, MaxFit75FE and MaxFit77FE: The DC output for these power supplies are not power-limited (except for eFlow4NBs in MaxFit13FE). If a power- limited output is required in the end-product application, the DC output from the power supply must be connected to a separately Listed control unit or accessory board that provides power-limited outputs.
-
Page 4: Maintenance
5. Connect devices or Altronix sub-assembly modules to be powered to the terminals marked [– DC +] (Fig. 1h, pg. 5). For auxiliary device connection, this output will not be affected by Low Power Disconnect or Fire Alarm Interface. Connect device to the terminals marked [+ AUX –] (Fig. -
Page 5: Power Supply Board Output Voltage Settings
Fig. 1 - eFlow Board configuration 10A 32V 5A 250V 5A 250V AC FAIL BAT FAIL AC DELAY SHUTDOWN 1 min. enable TRIGGER EOL NC C NO NC C NO + AUX – 2 hr. disable SUPERVISED RESET Power Supply Board Output Voltage Settings: Fig. -
Page 6: Terminal Identification
Terminal Identification: Terminal Function/Description Legend Connect 120VAC 60Hz to these terminals: L to hot, N to neutral. L, N Do not use terminal marked [G] (Fig. 1a, pg. 5). + DC – Refer to MaxFitFE Series Configuration Chart, pg. 2 (Fig. 1h, pg. 5). Trigger EOL Fire Alarm Interface trigger input from a short or FACP. -
Page 7: Nec Power-Limited Wiring Requirements
NEC Power-Limited Wiring Requirements: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below. - Page 8 1.25” (31.8mm) 1.25” (31.8mm) 7.00” (177.8mm) 7.00” (177.8mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER...
