Summary of Contents for Norton CTC701

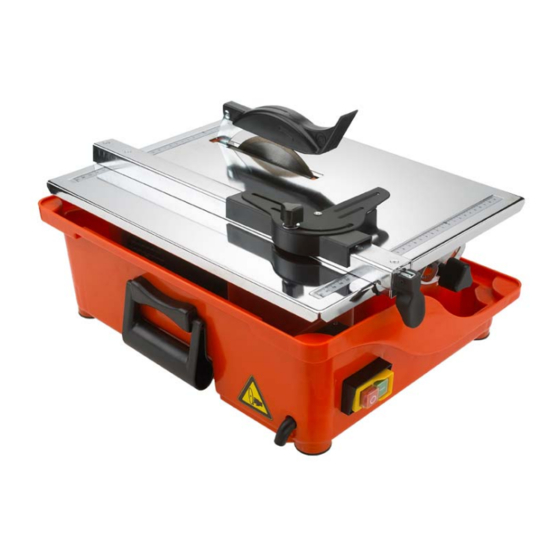

- Page 1 OWNERS MANUAL 7” Table Top Tile Saw MODEL:CTC701 FORM <<CTC701 rev 2/2010...
- Page 2 In no event shall Norton be liable for consequential or incidental damages arising out of the failure of any product to operate properly. Integral units such as gasoline engines, electric motors, batteries, tires, transmissions, etc., are excluded from this warranty and are...
-
Page 3: Table Of Contents
1.4 Safety instructions for working with the machine 2. Machine Description 10-12 2.2 Use of Machine 2.3 Layout 10-11 2.3 Technical Specifications 2.4 Items Includes With The CTC701 3. Assembly 12-14 3.1 Tool Assembly 3.2 Blade Installation 3.3 Guide-A-Cut Assembly 3.4 Electrical Connections 3.5 Starting The Machine... -
Page 4: Ctc701 Safety Instructions
I. CTC701 Safety Instructions 1. Basic Safety Instructions The CTC701 is exclusively designed for the cutting of ceramic tiles, porcelain tiles, natural stone flooring materials, artificial stone flooring materials, and terracotta materials up to 2-1/4” (57mm). Uses other than the manufacturer's instructions will violate the machine’s warranty. -
Page 5: Safety Precautions
1.2 Safety Precautions Important! The following safety precautions must always be observed. Additional Warning/Hazard Symbols Keep all guards in place when operating any piece of equipment Keep hands, feet, hair, and clothing away from all rotating parts Never tamper with the governor components of settings to increase the maximum speed. -
Page 6: Dust And Silica Warning
1.3 Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheet and/or consult your employer, the material manufacturer/supplier, governmental agencies such as OSHA and... -
Page 7: Safety Instructions For Working With The Machine
• Always cut with the blade guard in position. • Only use Norton diamond blades with continuous rim with the machine! The use of other tools can damage the machine and will void the warranty! • Read the blades’ specifications carefully to choose the correct tool for your application. - Page 8 • Use only three-wire grounded extension cords suitable for use outdoors and of sufficient gage to accommodate power requirements. • Ground the machine! The tile saw must be grounded while in use to protect the operator from electric shock. The motor is equipped with a three prong grounding type plug to fit the proper type receptacle.
- Page 9 1. Before mounting any blade on the saw, the blade should be inspected for any damage which might have occurred during shipment, handling or previous use. 2. The blade collars and arbors should be cleaned and examined for damage before mounting the blade. 3.
-
Page 10: Machine Description
The CTC701 Tile saw is designed for durability and high performance for onsite wet and dry cutting operations of a wide range of tiles. As with all other Norton Clipper products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. - Page 11 Tilting Table (4) The cutting table tilts to 45 ° for making miter cuts. To tilt the cutting table loosen the two screws on the side and pivoting the table. The CTC701 has a built in gauge for precise angle adjustments.
-
Page 12: Technical Specifications
Guide-A-Cut Small Phillips Head Screw Driver Blade Shaft Wrenches: 19mm Wrench and Spanner Wrench Norton Continuous Rim Diamond Blade for Cutting Tile 3. Assembly The machine is delivered fully equipped. It is ready for operation after assembling the diamond blade, the blade guard and the guide-a-cut, and connection to the appropriate... -
Page 13: Tool Assembly
Only use NORTON CLIPPER continuous rim blades with a maximum diameter of 7” (177mm) can be used with the CTC701. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. -
Page 14: Transport And Storing
Keep other staff out of the area, so you can work securely. 5.1.2 Space Required For Operation And Maintenance Leave 6-1/2 feet (2 m) around the machine for usage and maintenance of the CTC701. 5.2 Cutting Methods To use the machine correctly, you must face it with the two hands on the tile to be cut, pushing the tile against the blade. -
Page 15: General Advice For Cutting
Do not force on the motor. This machine is not designed for a continuous use. 6. Maintenance And Servicing To ensure a long-term quality from the cutting with the CTC701, please follow the maintenance plan below: 6.1 Maintenance Of The Machine Always perform the maintenance of the machine with the machine isolated from the electrical supply. -
Page 16: Cleaning The Ctc701
Your machine will last longer if you clean it thoroughly after each day of work, especially water pan, motor and blade flange. To clean disconnect the machine from the power source and wipe down the CTC701 with a damp cloth. 7. Trouble Shooting 7.1 Trouble Shooting Procedures... -
Page 17: Parts List Section
In the case of a warranty claim, the part may be needed to be returned for evaluation. Warranty can be claimed and technical support obtained from your local distributor where machines, spare parts and Norton Diamond Blades can be purchased as well: For the nearest Clipper distributor call 1-800-554-8003 Common Replacement Parts... -
Page 18: Ctc701 Service Parts
8.1 CTC701 Service Parts... - Page 19 SCR M6 X 16 1.0 DIN933 243013 SPRING 243014 SECURING STRAP 243015 CABLE INNER 243016 00310361102 FOOT RUBBER 243017 SWITCH POWER PUSH BUTTON CTC701 243018 00310301207 GASKET SWITCH CTC701 243019 BRACKET SWITCH CTC701 243020 00310361104 CABLE GUIDE 243021 POWER CABLE CTC701...
- Page 20 Any wear due to normal use of the machine will not be considered as a case of warranty. Genuine Norton Clipper replacement parts should always be used. All items are sold as each unless otherwise noted.
- Page 21 NOTES:...
