5.2.14.1.

Wallstand Mounting

The wallstand is mounted to the floor using four M10 bolts. Holes for anchors must be 16mm in diameter and
80mm deep.
If required, the wallstand can be additionally fixed in place with the wall bracket. The location of the wall bracket
on the wall is determined by positioning the wallstand as desired, then mounting the bracket to the wallstand and
marking the hole locations on the wall. The wallstand can then be moved and the holes (D12 x 70mm) drilled.
M6X12mm metallic anchor fishers are required to fix the bracket to the wall.
5.2.14.2.

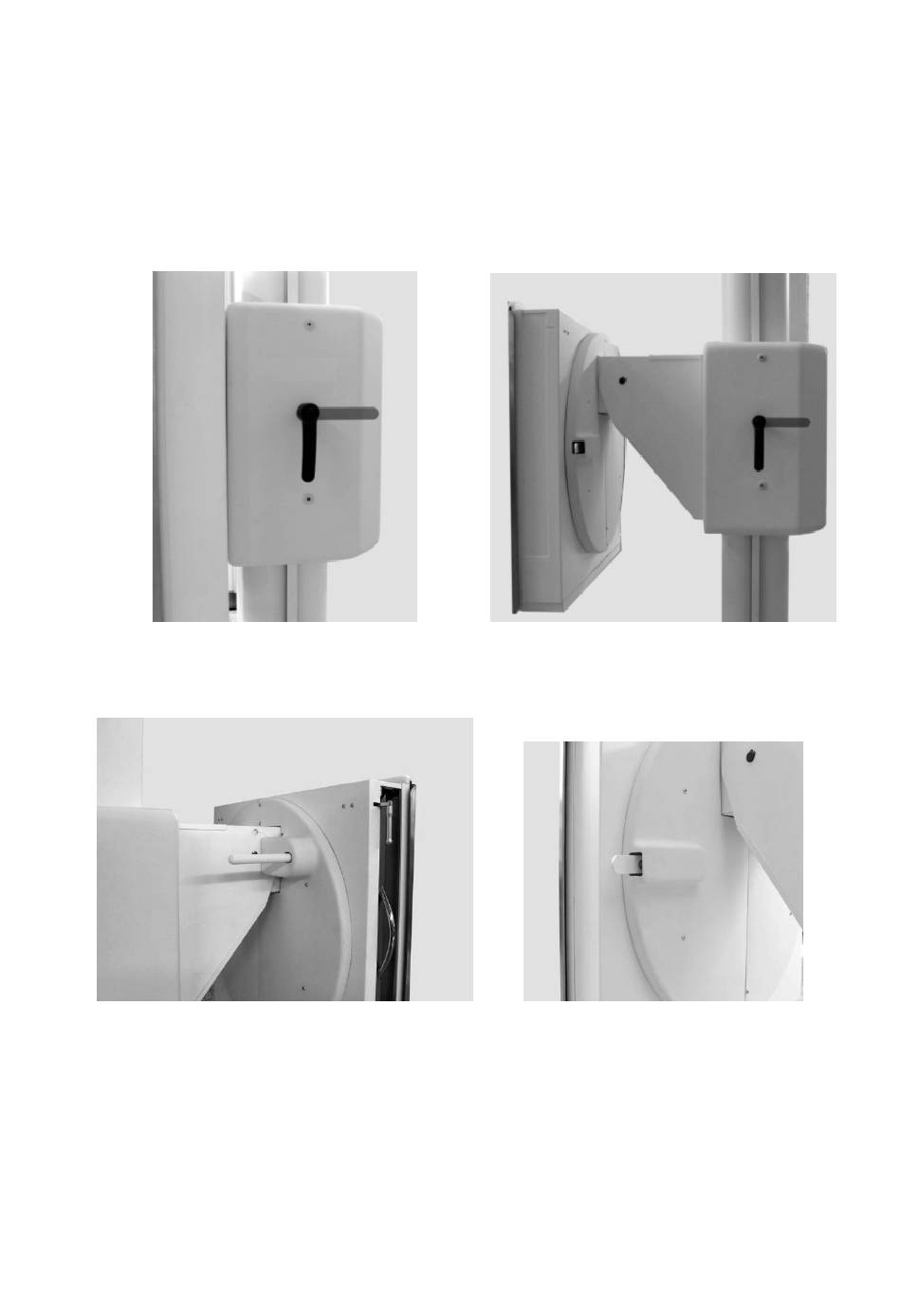

Moving the Bucky

The handle for the vertical Bucky movement is on the right side of the column.
For model WS-T only: the handle for the tilting movement is on the left side and the handle for the rotating
movement is on the right side.
