Table 1-3 Ports and Buttons on the Front Panel
Mark
1
3
1.2.2

Rear Panel

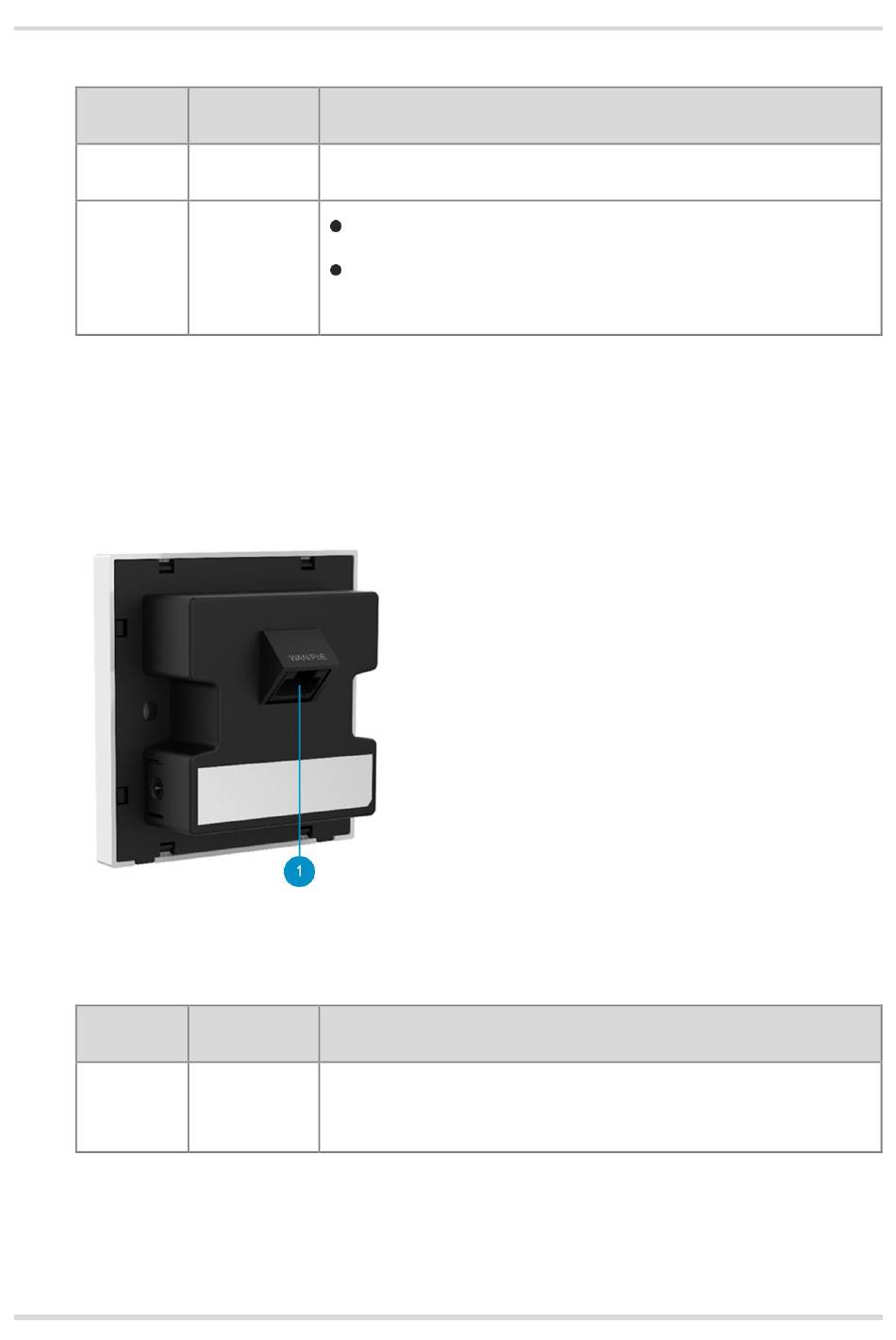

Figure 1-2 Rear Panel
Table 1-4 Ports on the Rear Panel
Mark
1
Item Description
LAN port 10/100/1000 Base-T Ethernet port for wired connection
Stick the pin to the Reset hole: Restart the access point.
Reset hole
Press and hold the pin to the Reset hole for more than 5
seconds: Restore the access point to factory settings.
Port Description
WAN/PoE 10/100/1000 Base-T Ethernet port for wired Ethernet
port connection to transmit both data and power
3
Product Overview
