The RG-CS83-24GT4XS-P switch has a built-in power supply module. The back panel has an an AC power plug.
Cooling
The RG-CS83-24GT4XS-P switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a
minimum clearance of 100 mm (3.94 in.) around the device for air circulation.

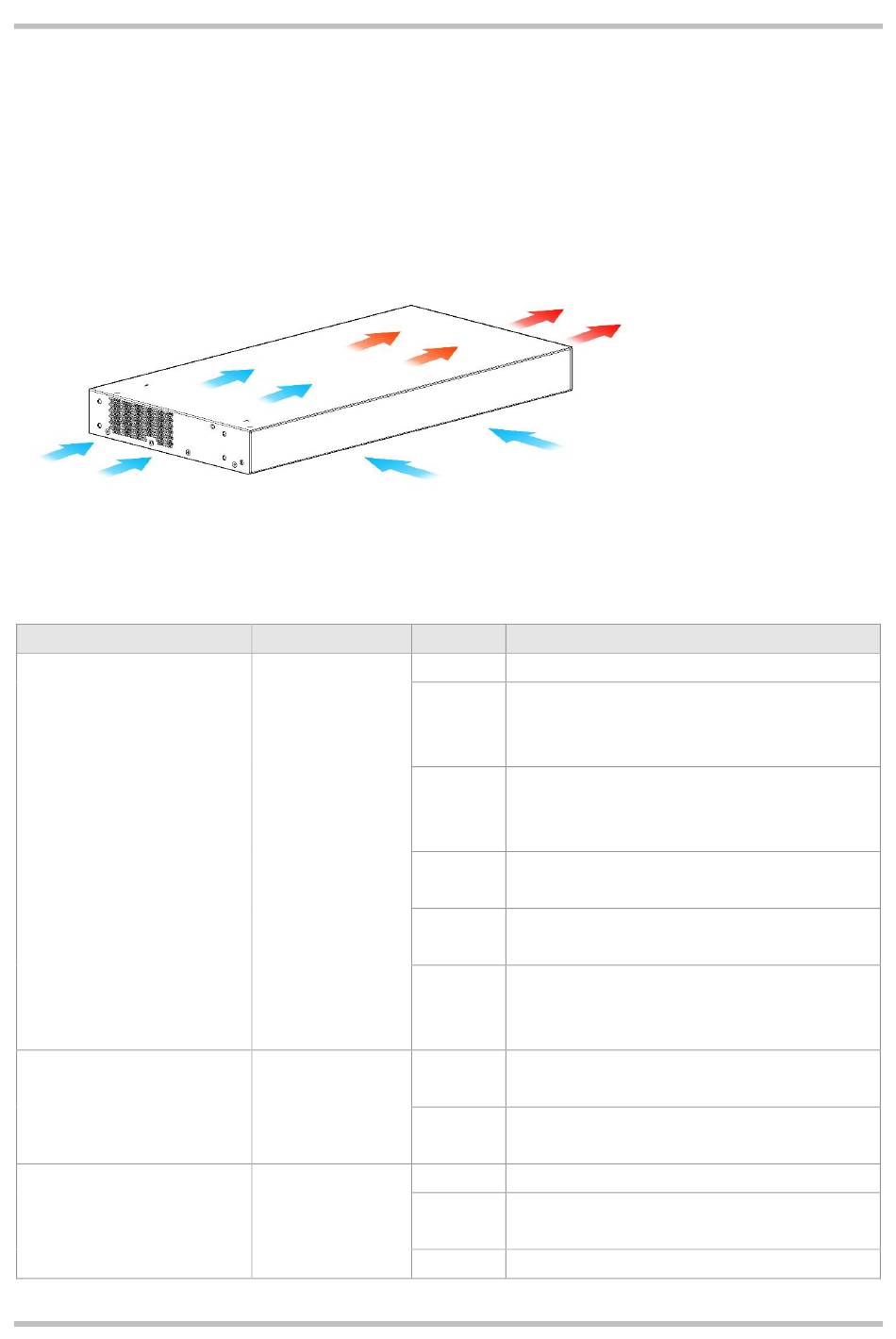

Figure 1-11 Airflow Direction
LED
Function
System Status LED
LED Mode LED
10GE SFP+ Port LED
Panel ID Color
Off
Blinking
Green (3
Hz)
Blinking
Green (10
Hz)
Status
Solid
Green
Solid
Yellow
Solid Red
Solid
green
LED Mode
Solid
yellow
Off
Solid
25F to 28F
Green
Blinking
Status
System is not powered on.
System is being initialized. Continuous blinking
indicates a fault.
System is being located.
System is operating normally.
The temperature at the air intake and exhaust
vents exceeds the threshold.
1. The temperature at the air intake and exhaust
vents well exceeds the threshold.
2. The system is not functioning properly.
The LED indicates the switching status.
The LED indicates the PoE power supply status.
No link is detected for this port.
The port has made a successful 1/10 Gbps link.
The port is sending and receiving traffic at 1/10
