Ruijie RG-CS83-PD Series Switches
Hardware Installation and Reference Guide
Document Version: V1.0
Date: 2023.05.05
Copyright © 2023 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-CS83-24GT4XS-PD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ruijie RG-CS83-24GT4XS-PD

  • Page 1 Ruijie RG-CS83-PD Series Switches Hardware Installation and Reference Guide Document Version: V1.0 Date: 2023.05.05 Copyright © 2023 Ruijie Networks...
  • Page 2 All rights are reserved in this document and this statement. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.
  • Page 3 Preface Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support  Case Portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com ...
  • Page 4 Warning An alert that calls attention to important rules and information that if not understood or followed can result in data loss or equipment damage. Caution An alert that calls attention to essential information that if not understood or followed can result in function failure or performance degradation.
  • Page 5: Product Overview

    Console port: The console port is an RS-232 port that uses an RJ45 connector. The console port is used to connect a PC directly to the management system for debugging, configuration, maintenance, management and program loading. 1.1 RG-CS83-24GT4XS-PD Specifications Model RG-CS83-24GT4XS-PD Dual-core CPU with the clock speed of 1.2 GHz...
  • Page 6 Hardware Installation and Reference Guide Product Overview  SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules.  See Chapter 7 for details. The module types may update without prior notification. Please contact Ruijie Networks for details. Power Supply Module Slots  RG-PA600I-P-F...

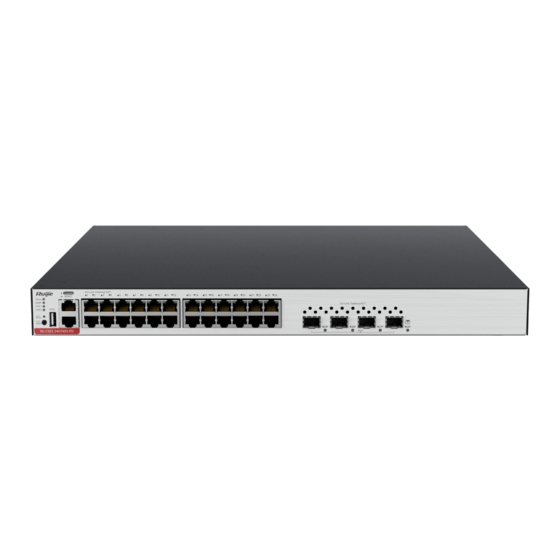

  • Page 7 This device is not suitable for use in locations where children are likely to be present. Appearance The front panel of the RG-CS83-24GT4XS-PD switch provides 24 10/100/1000Base-T Ethernet ports (PoE+ capable), four 10GE SFP+ ports, one management port, one Console port and one USB port. The back panel has two power supply module slots.
  • Page 8: Back Panel

    Power Supply The RG-CS83-24GT4XS-PD switch supports dual power supply modules. See Chapter 1.13 for details about the power supply modules. The switch can be powered on by either one power supply module or dual power supply modules. If both power supply modules are...
  • Page 9 Hardware Installation and Reference Guide Product Overview Cooling The RG-CS83-24GT4XS-PD switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a minimum clearance of 100 mm (3.94 in.) around the device for air circulation. Figure 1-4 Airflow Direction...
  • Page 10 SFP Modules and SFP BIDI Modules  SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules. SFP Module Type  See Chapter 7 for details. The module types may update without prior notification. Please contact Ruijie Networks for details. Power Supply Module Slots  RG-PA600I-P-F...
  • Page 11 Hardware Installation and Reference Guide Product Overview  RG-PA1000I-P-F AC Input Rated Voltage Range: 200 V AC to 240 V AC Maximum Voltage Range: 176 V AC to 264 V AC Frequency: 50 Hz/60 Hz Rated Current Per Circuit: 8 A 10GBase-R Capable SFP+ Port 1000Base-X Capable...
  • Page 12: Front Panel

    Hardware Installation and Reference Guide Product Overview ports, one management port, one Console port and one USB port. The back panel has two power supply module slots. Figure 1-5RG-CS83-48GT4XS-PD Switch Appearance Front Panel Figure 1-6 Front Panel of RG-CS83-48GT4XS-PD 1. System Status LED 7.
  • Page 13 Hardware Installation and Reference Guide Product Overview 1. Grounding Stud 2. Power Supply Module Slot 1 (A filler panel is required if the slot is vacant.) 3. Power Supply Module Slot 2 (A filler panel is required if the slot is vacant.) Product Information Label Figure 1-4 Product Information Label of RG-CS83-48GT4XS-PD Note:...
  • Page 14 Hardware Installation and Reference Guide Product Overview Function Panel ID Color Status System is not powered on. Blinking Green (3 System is being initialized. Continuous blinking indicates a fault. Blinking Green System is being located. (10 Hz) System Status LED Status Solid Green System is operating normally.
  • Page 15: Power Supply Module

    1.3.1 RG-PA600I-P-F Module The RG-CS83-24GT4XS-PD and RG-CS83-48GT4XS-PD switches support the RG-PA600I-P-F power module. The RG-PA600I-P-F is an AC module (AC/HVDC input and DC output) providing an output voltage of 56 V and an output power of up to 600 W (PoE power: 370 W).
  • Page 16 1.3.2 RG-PA1000I-P-F Module The RG-CS83-24GT4XS-PD and RG-CS83-48GT4XS-PD switches support the RG-PA1000I-P-F power module. The RG-PA1000I-P-F module is an AC module (AC/HVDC input and DC output) providing an output voltage of 56 V and an output power of up to 1000 W (PoE power: 740 W).
  • Page 17 Hardware Installation and Reference Guide Product Overview 17.86 A (Input Voltage: 176 V AC to 290 V AC or 190 V DC to 290 V DC) Maximum Output Current 16.61 A (Input Voltage: 90 V AC to 176 V AC, 176 V AC not included) 1000 W (Input Voltage: 176 V AC to 290 V AC or 190 V DC to 290 V DC) Maximum Output Power 930 W (Input Voltage: 90 V AC to 176 V AC, 176 V AC not included)
  • Page 18: Preparing For Installation

    Hardware Installation and Reference Guide Preparing for Installation 2 Preparing for Installation 2.1 Safety Precautions To avoid personal injury and device damage, carefully read the safety precautions before you install the switch. The following safety precautions may not cover all possible dangers. 2.1.1 General Safety Precautions ...
  • Page 19: Installation Environment Requirements

    Hardware Installation and Reference Guide Preparing for Installation mA rated action current supports no more than eight power supplies. In this case, the 16 power supplies in the system require at least two leakage protectors with 30 mA rated action current and each leakage protector supports eight power supplies. If power supplies in a system differ in models, the rated leakage action current of each leakage protector divided by two is greater than the sum of maximum leakage currents of all the power supplies.
  • Page 20: Cleanliness Requirements

    Hardware Installation and Reference Guide Preparing for Installation  Too high temperatures can accelerate the aging of insulation materials, greatly reducing the reliability of the switch and severely affecting its service life. Temperature and Humidity Temperature Relative Humidity 0ºC to 45ºC (32ºF to 113ºF) 10% to 90% (non-condensing) The ambient temperature and humidity of the switch are measured at the point that is 1.5 m (59.06 in.) above the floor and 0.4 m (15.75 in.) before the switch rack when there is no protective plate in front or at the back of the rack...
  • Page 21 Hardware Installation and Reference Guide Preparing for Installation 2.2.5 Grounding Requirements A proper grounding system is the basis for stable and reliable running and is indispensable for preventing lightning strikes and interference. Carefully check the grounding conditions at the installation site according to the grounding specifications, and complete grounding properly based on the actual situation.
  • Page 22 Hardware Installation and Reference Guide Preparing for Installation Electromagnetic interference (EMI) occurs due to electromagnetic radiation or conduction, depending on the transmission path. When the energy, often RF energy, from a component arrives at a sensitive component via the space, the energy is known as radiated interference.
  • Page 23: Installing The Switch

    Hardware Installation and Reference Guide Installing the Switch 3 Installing the Switch Ensure that requirements in Chapter 2 are all met.
  • Page 24: Installing Procedure

    Hardware Installation and Reference Guide Installing the Switch 3.1 Installing Procedure Prepare for installation Prepare for installation Install the rack Mount the switch into the rack Ground the switch Install the modules Turn on the power Connect the cables Bundle the cables Verify the installation...
  • Page 25: Before You Begin

    Hardware Installation and Reference Guide Installing the Switch 3.2 Before You Begin Confirm the following requirements before installation:  The installation site provides sufficient space for heat dissipation.  The installation site meets the temperature and humidity requirements of the switch. ...
  • Page 26 Hardware Installation and Reference Guide Installing the Switch Figure 3-2 Installing Cage Nuts and Screws Secure the switch on the rack rails by tightening the screws. Figure 3-3 Tightening Screws Insert screws into the other two cage nuts and tighten them. Figure 3-4 Tightening Other Screws...
  • Page 27: Installing The Switch On A Workbench

    Hardware Installation and Reference Guide Installing the Switch 3.3.2 Installing the Switch on a Workbench In most cases, users do not have a standard 19-inch rack. Therefore, the most popular method is to place the switch on a clean workbench. ...
  • Page 28 Hardware Installation and Reference Guide Installing the Switch Install the filler panel in the empty slot to allow for adequate airflow. Installing the DC Power Supply Module Remove the module from its packing materials and make sure the input specifications meet requirements. Remove the blank filler panel in the empty slot.
  • Page 29: Grounding The Switch

    Hardware Installation and Reference Guide Installing the Switch Figure 3-9 Removing the Module Pull the module out of the slot gently. Install the filler panel in the empty slot to allow for adequate airflow. 3.5 Grounding the Switch Connect the PGND to the grounding lug of the rack and then connect the grounding lug to the grounding bar of the equipment room. Notes ...
  • Page 30: Verifying Installation

    Hardware Installation and Reference Guide Installing the Switch Connect the RJ45 connector of an Ethernet cable to the Ethernet port on the device, and the other end to a PC. Insert the single-mode or multi-mode fiber into the corresponding interface according to the panel identification, and distinguish the transmitting and receiving ends of the fiber-optic cable.
  • Page 31: Setting Up Configuration Environment

    Hardware Installation and Reference Guide Verifying Operating Status 4 Verifying Operating Status 4.1 Setting up Configuration Environment Setting up Configuration Environment Connect the PC to the management port of the switch with an Ethernet cable. Figure 4-1 Configuring Environment Connecting an Ethernet Cable ...
  • Page 32 Hardware Installation and Reference Guide Verifying Operating Status In the Name box, enter the new connection name and click OK. The Connect to dialog will appear. From the Connect using drop- down list, select a COM port to be used. Figure 4-3 Figure 4-3 Click OK.
  • Page 33: Powering On Switch

    Hardware Installation and Reference Guide Verifying Operating Status Click OK and the HyperTerminal window will appear. 4.2 Powering on Switch Checklist before Power-on  The switch is fully grounded.  The power cord is properly connected.  The power cord retention clip secures the input power cord to the power supply. ...
  • Page 34: Monitoring And Maintenance

    Hardware Installation and Reference Guide Monitoring and Maintenance 5 Monitoring and Maintenance 5.1 Monitoring When the switch is running, you can monitor the module status by observing the module LED.  If the SYS indicator is red, it indicates that the system is faulty. Log in to the web-based management system to troubleshoot the fault.
  • Page 35: Replacing Lithium Battery

    Hardware Installation and Reference Guide Monitoring and Maintenance Replacing Lithium Battery The device has a built-in lithium battery to maintain the real-time clock without external power to the switch. To replace the lithium battery, contact technical support personnel. Replacing the battery with the wrong type may cause explosion or danger. If the battery is damaged, please replace it with the same type.
  • Page 36: Troubleshooting Flowchart

    Check the installation of other modules Check the LEDs on the device Check serial port connection and parameters Check the cable connection Contact Technical Support of Ruijie Networks 6.2 Troubleshooting Fault 1: The login password is forgotten. Symptom Failed to log into the system.
  • Page 37 Check whether the configuration of the serial port on the HyperTerminal is consistent with that in Configuration Guide. If there is still no output on the serial port, please contact Ruijie technical support. Fault 4: The serial port console output is garbled.
  • Page 38 Hardware Installation and Reference Guide Troubleshooting wavelength of 1310 nm cannot be connected to an SFP module of 1550 nm. Check whether the distance between the two sides exceeds the maximum length marked on the SFP module. Check whether the speeds of the two sides match and whether the optical fiber type meets requirements.
  • Page 39 Hardware Installation and Reference Guide Appendix 7 Appendix 7.1 Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet).
  • Page 40: Fiber Connection

    Hardware Installation and Reference Guide Appendix Fiber Connection You can choose single mode or multimode fibers according to the module types. Figure 7- shows connection of fiber-optic cable. Figure 7-3 Fiber-Optic Cable Connection...
  • Page 41: Sfp Modules

    We provide appropriate SFP+ modules according to the port types. You can select the module to suit your specific needs. The following models and technical specifications of some SFP+ modules are listed for your reference. See Ruijie Transceiver Installation and Reference Guide for details.
  • Page 42 Hardware Installation and Reference Guide Appendix 400 (OM1) 66 m XG-SFP-SR- MMF1 (MPO connector) 50/125 2000 (OM3) 300 m SM1270-BIDI XG-SFP-SR- MMF1 (MPO connector) 50/125 2000 (OM3) 300 m SM1330-BIDI XG-SFP-LR- SMF2 (LC connector) 9/125 10 km SM1270-BIDI XG-SFP-LR- SMF2 (LC connector) 9/125 10 km SM1330-BIDI...
  • Page 43 Hardware Installation and Reference Guide Appendix Speed/Distance Paring Models XG-SFP-SR-SM1270-BIDI 10-Gigabit/300 m XG-SFP-SR-SM1330-BIDI XG-SFP-LR-SM1270-BIDI 10-Gigabit/10 km XG-SFP-LR-SM1330-BIDI BIDI modules must be used in pairs. If XG-SFP-SR-SM1270-BIDI is used at one end, then XG-SFP-SR-SM1330-BIDI must be applied to the other end.
  • Page 44: Lightening Protection

    Hardware Installation and Reference Guide Appendix 7.3 Lightening Protection Installing AC Power Arrester (Lightning Protection Power Strip) The AC power port must be connected to an external lightning protection power strip to prevent the switch from being struck by lightning when the AC power cord is introduced from the outdoor and directly connected to the power port of the switch. The lightning protection power strip can be fixed on the rack, workbench, or wall in the equipment room by using cable ties and screws.
  • Page 45 Hardware Installation and Reference Guide Appendix Tools: Phillips screwdrivers or flat-head screwdriver, multimeter, and diagonal pliers Installation Steps: Tear one side of the protective paper for the double-sided adhesive tape and paste the tape to the housing of the Ethernet port arrester.
  • Page 46 Hardware Installation and Reference Guide Appendix 7.4 Cabling When the switch is installed in a standard 19-inch rack, secure the cables around the cable management brackets. Top cabling or bottom cabling is adopted according to the actual situation in the equipment room. All transferred cable connectors should be placed at the bottom of the rack in an orderly manner instead of outside the rack that is easy to touch.
  • Page 47 Hardware Installation and Reference Guide Appendix  The metal hole traversed by cables should have a smooth and fully rounding surface or an insulated lining.  Use cable ties to bundle up cables properly. Please do not connect two or more cable ties to bundle up cables. ...
  • Page 48: Site Selection

    Hardware Installation and Reference Guide Appendix ① Flat washer ② Nut ③ Spring washer ④ Flat washer  Hard power cords should be fastened in the terminal connection area to prevent stress on terminal connection and cable.  Do not use self-tapping screws to fasten terminals. ...
  • Page 49 Hardware Installation and Reference Guide Appendix  Do not build the equipment room in the proximity of livestock farms. Otherwise, the machine room should be located on the windward side of the pollution source perennially. The previous livestock house or fertilizer warehouse cannot be used as the machine room.
