Chapter 3 Control Component Definition and Maintenance
162
Table 15 - Encoder Functions (Continued)
IFM Pin # Quadrature Encoder Function
13 Z2+ (redundant or dual ENC)
14 Z2- (redundant or dual ENC)
15 ENC_COM
16 ENC_COM
17 ENC_COM
18 ENC PWR (+12V)
19 ENC PWR (+12V)
20 ENC PWR (+12V)

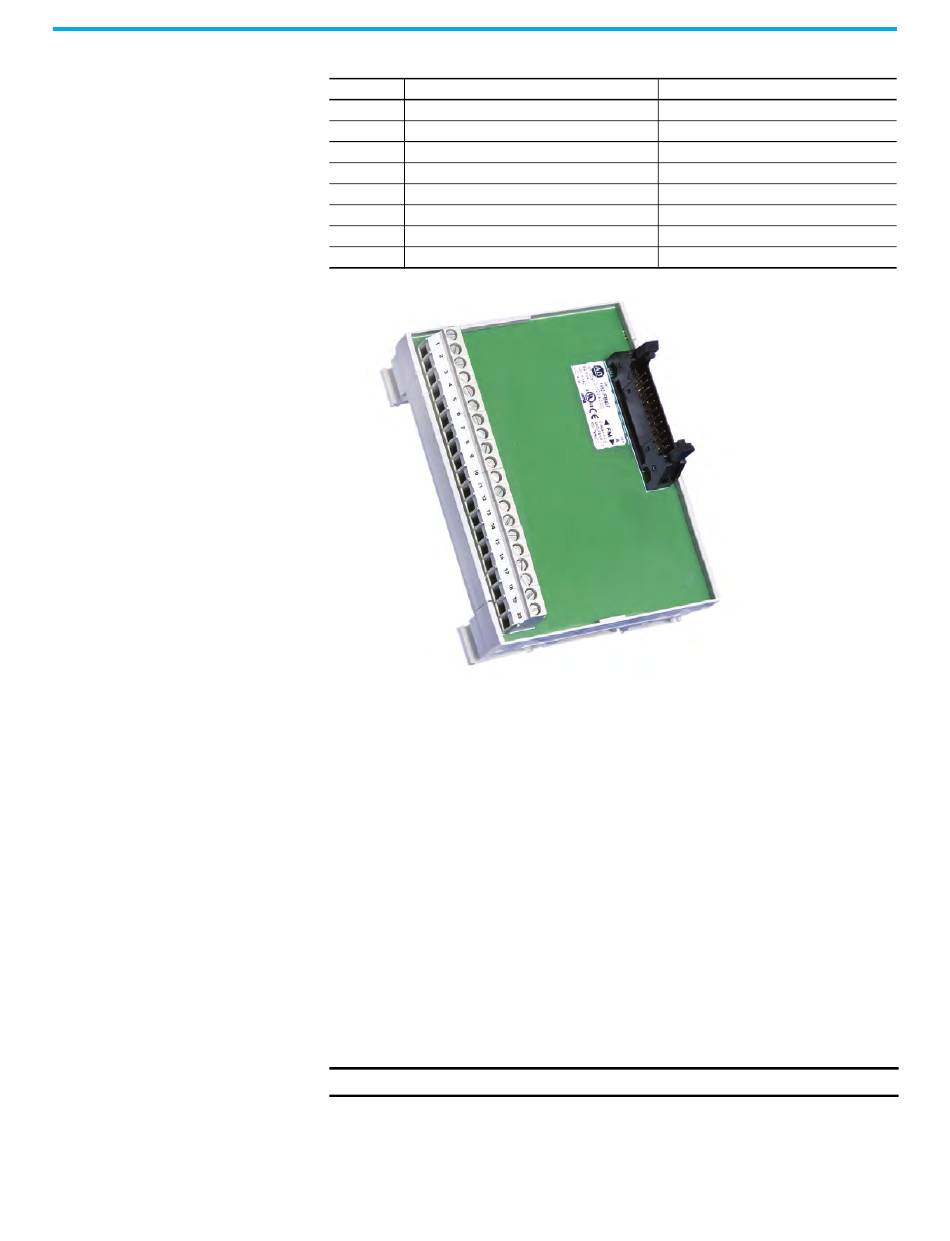

Figure 138 - 20-pin Interface Module (IFM)

Quadrature Encoder Operation

The universal encoder interface accepts either single or dual quadrature
encoders. Configure the board to accept the encoders through jumpers on J4.
Boards shipped from the factory come default to single quadrature encoder
configuration. For dual encoder configurations, the primary encoder wires to
pins 1... 7 on the 1492-IFM20 module.
To select the dual encoder option, remove the CD_QUAD jumper and place it
in PARK. This configures the board to accept two individual quadrature
encoders. In this mode, the drive can switch between encoders for applications
such as Synchronous Transfer between two motors with each having their own
encoder.
For the redundant encoder option, remove both the CD_QUAD and
POL_QRDNT jumpers and place them in PARK. With this configuration, the
drive will switch over to the redundant encoder when it detects a problem with
the primary encoder.
IMPORTANT Consult the factory for availability of dual quadrature encoder options.
When the drive switches over to the redundant encoder, it cannot switch back
without recycling control power.
Rockwell Automation Publication 7000-UM202H-EN-P - November 2023
Absolute Encoder Function
E10
E11
ENC_COM
ENC_COM
ENC_COM
ENC PWR (+12V)
ENC PWR (+12V)
ENC PWR (+12V)
