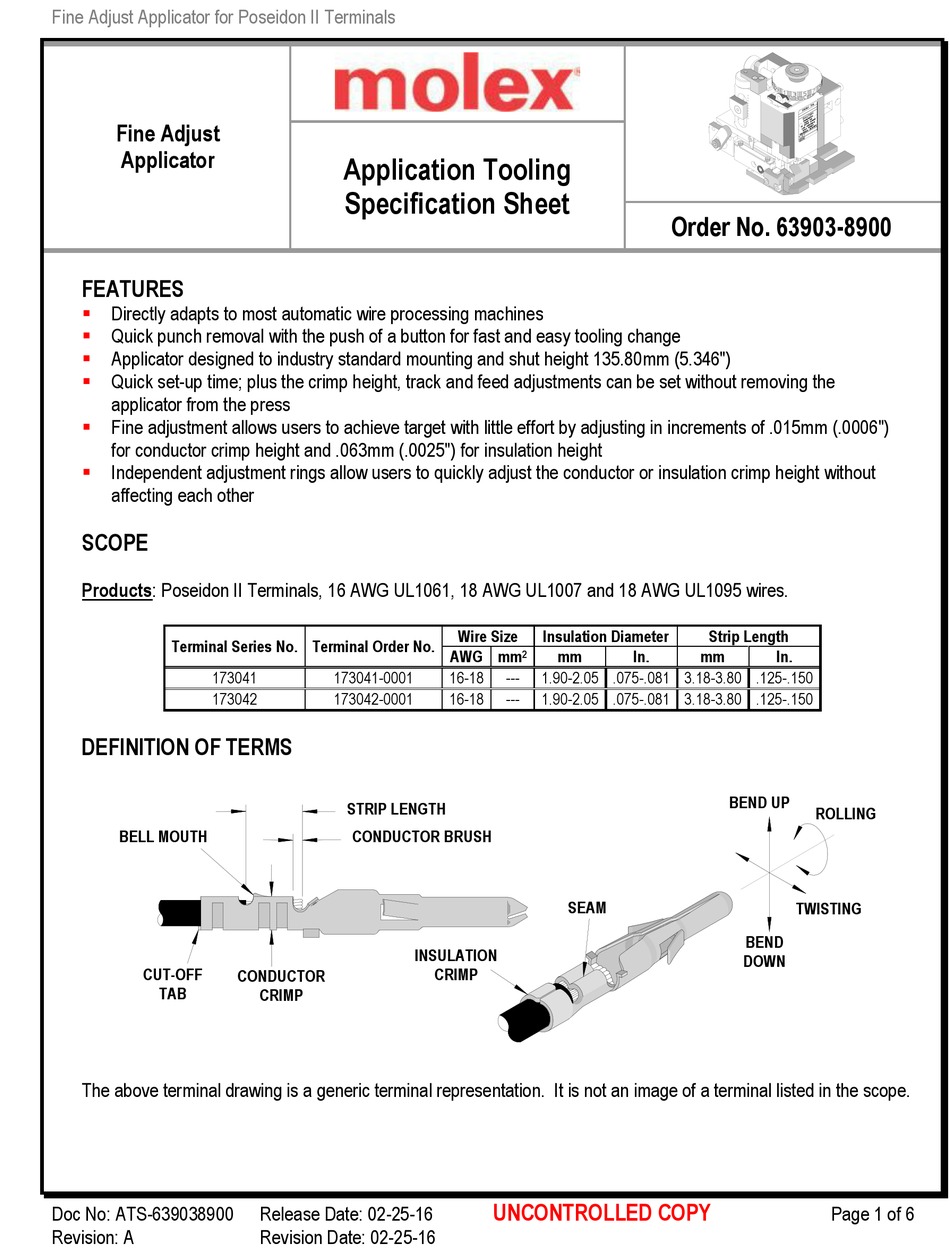

molex 63903-8900 Manual

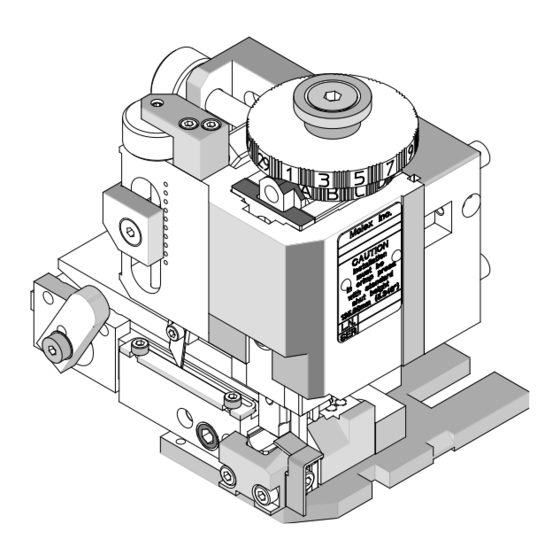

Fine Adjust Applicator for Poseidon II Terminals
Fine Adjust
Applicator
FEATURES
Directly adapts to most automatic wire processing machines

Quick punch removal with the push of a button for fast and easy tooling change

 Applicator designed to industry standard mounting and shut height 135.80mm (5.346")
 Quick set-up time; plus the crimp height, track and feed adjustments can be set without removing the
applicator from the press
Fine adjustment allows users to achieve target with little effort by adjusting in increments of .015mm (.0006")

for conductor crimp height and .063mm (.0025") for insulation height
 Independent adjustment rings allow users to quickly adjust the conductor or insulation crimp height without
affecting each other
SCOPE
Products: Poseidon II Terminals, 16 AWG UL1061, 18 AWG UL1007 and 18 AWG UL1095 wires.
Terminal Series No. Terminal Order No.
173041
173042
DEFINITION OF TERMS
BELL MOUTH
CUT-OFF
TAB
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No: ATS-639038900
Revision: A
Application Tooling
Specification Sheet
173041-0001
173042-0001
STRIP LENGTH
CONDUCTOR BRUSH
INSULATION
CONDUCTOR
CRIMP
Release Date: 02-25-16
Revision Date: 02-25-16
Wire Size Insulation Diameter
AWG mm mm
2
16-18 --- 1.90-2.05 .075-.081 3.18-3.80 .125-.150
16-18 --- 1.90-2.05 .075-.081 3.18-3.80 .125-.150
SEAM
CRIMP
UNCONTROLLED COPY
Order No. 63903-8900
Strip Length
In. mm In.
BEND UP
TWISTING
BEND
DOWN
ROLLING
Page 1 of 6
