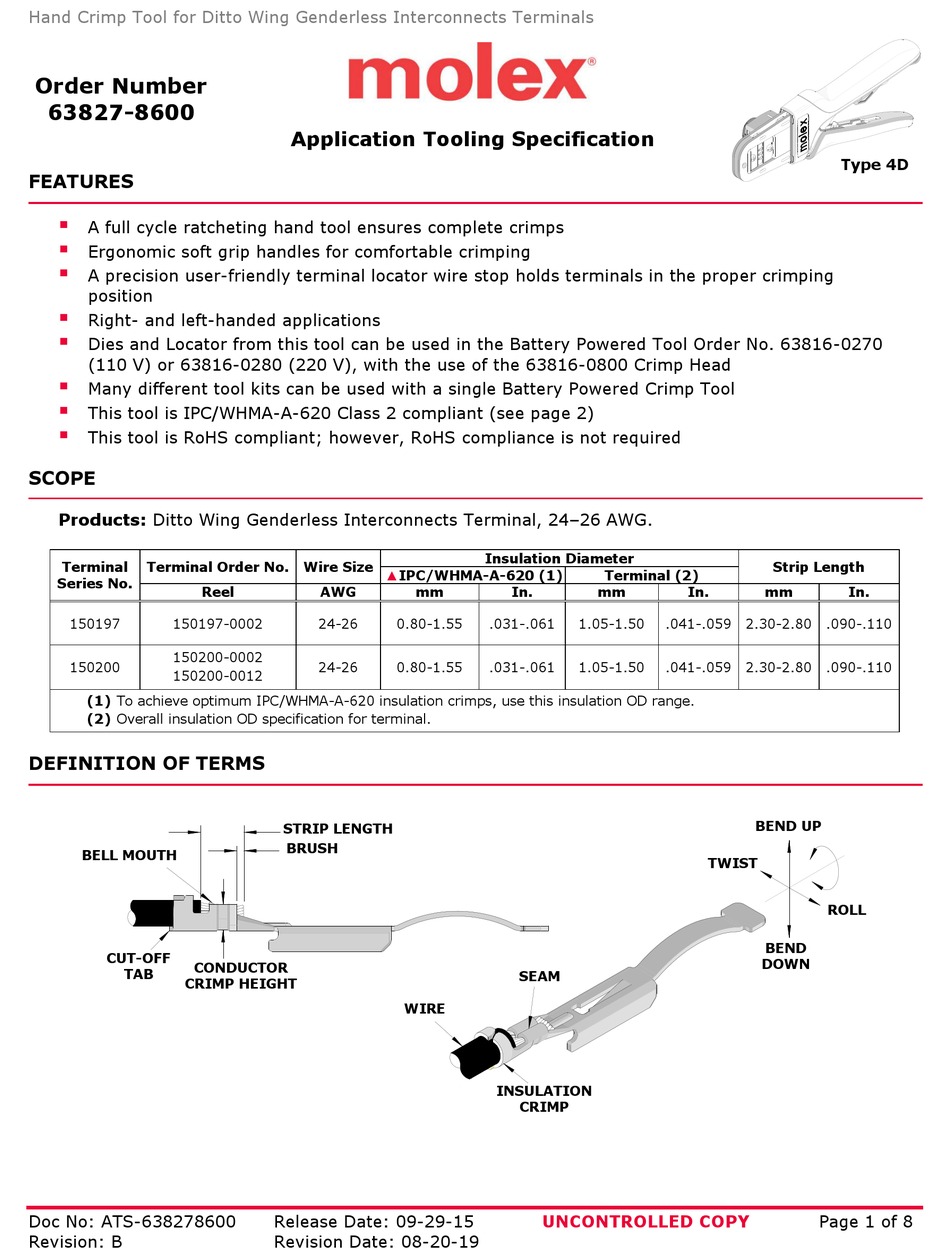

molex 63827-8600 Manual

Hand Crimp Tool for Ditto Wing Genderless Interconnects Terminals
Order Number
63827-8600

FEATURES


A full cycle ratcheting hand tool ensures complete crimps

Ergonomic soft grip handles for comfortable crimping

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position

Right- and left-handed applications

Dies and Locator from this tool can be used in the Battery Powered Tool Order No. 63816-0270
(110 V) or 63816-0280 (220 V), with the use of the 63816-0800 Crimp Head

Many different tool kits can be used with a single Battery Powered Crimp Tool

This tool is IPC/WHMA-A-620 Class 2 compliant (see page 2)

This tool is RoHS compliant; however, RoHS compliance is not required

SCOPE

Products: Ditto Wing Genderless Interconnects Terminal, 24–26 AWG.
Terminal Terminal Order No.
Series No.
Reel
150197 150197-0002
150200-0002
150200
150200-0012
(1) To achieve optimum IPC/WHMA-A-620 insulation crimps, use this insulation OD range.
(2) Overall insulation OD specification for terminal.

DEFINITION OF TERMS

BELL MOUTH
CUT-OFF
CONDUCTOR
TAB
CRIMP HEIGHT
Doc No: ATS-638278600
Revision: B
Application Tooling Specification
Wire Size
▲IPC/WHMA-A-620 (1)
AWG mm
24-26 0.80-1.55
24-26 0.80-1.55
STRIP LENGTH
BRUSH
WIRE
Release Date: 09-29-15
Revision Date: 08-20-19
Insulation Diameter
Terminal (2)
In. mm
.031-.061 1.05-1.50
.031-.061 1.05-1.50
SEAM
INSULATION
CRIMP
UNCONTROLLED COPY
Type 4D
Strip Length
In. mm
.041-.059 2.30-2.80 .090-.110
.041-.059 2.30-2.80 .090-.110
BEND UP
TWIST
ROLL
BEND
DOWN
Page 1 of 8
In.
