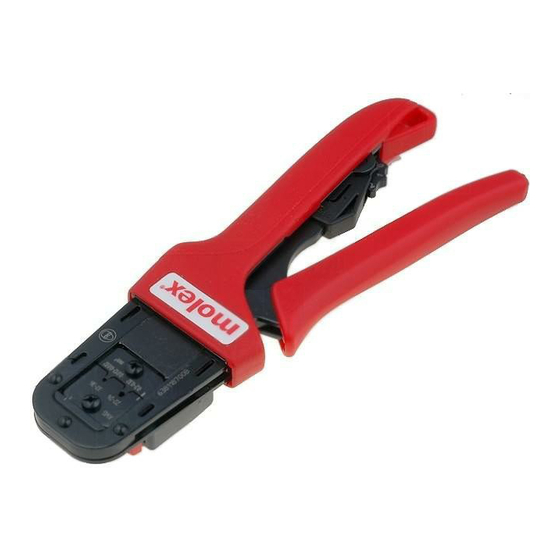

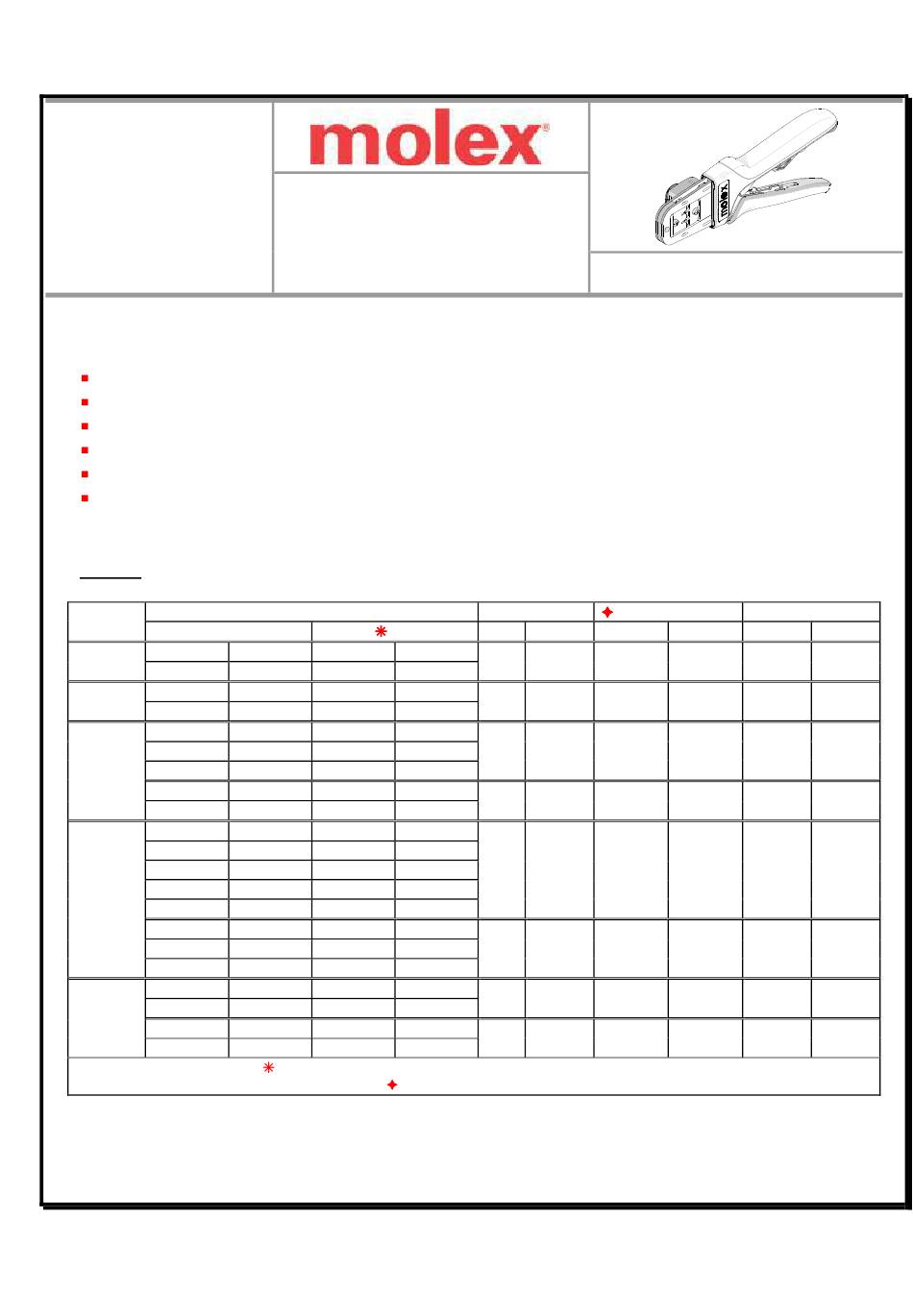

Hand Crimp Tool for SL™ Crimp Terminals
HAND CRIMP
TOOL
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is IPC/WHMA A-620 Class 2 compliant
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: SL™ Crimp Terminal, 22-24 and 32-36 AWG.
Terminal
Series No.
Loose Piece
50084-8114 50084-8160 50084-8014 50084-8060
50084
50084-8129
50088-8114 50088-8160 50088-8014 50088-8060
50088
50088-8128
16-02-0114 40-08-0873 16-02-0081
16-02-0115 70021-0114 16-02-0093
70021
16-02-0117 70021-0117 16-02-0116 70021-0081
16-02-0111 16-02-0113 16-02-0079
16-02-0112
16-02-0102 70058-0102 16-02-0086 70058-0086
16-02-0103 70058-0103 16-02-0087 70058-0087
16-02-0104 70058-0104 16-02-0088 70058-0088
16-02-0147 70058-4102 16-02-0131 70058-4086
70058
16-02-0099 16-02-0101 16-02-0074
16-02-0100 70058-0099 16-02-0084 70058-0084
16-02-0144 70058-4099 16-02-0143 70058-4084
16-02-1114 16-02-1125 16-02-1110
16-02-1115
71851
16-02-1119 16-02-1123 16-02-1118
16-02-1121
Doc No. ATS-638118700
Revision: C
Application Tooling
Specification Sheet
Terminal Order No.
Reel
50084-8029
50088-8028
16-02-0874
16-02-0107
16-02-0092
16-02-0080
16-02-0106
16-02-0152 70058-5001
16-02-0085
16-02-1124
16-02-1111
16-02-1122
16-02-1120
Follow the Cut-Off Tab specifications on Applicator specification sheets
See Conditions on page 2.
Release Date: 07-30-07
Revision Date: 03-29-12
Wire Size
Insulation Diameter
AWG
mm²
mm
22-24 0.33-0.20 1.09-1.65
22-24 0.33-0.20 1.09-1.65
22-24 0.33-0.20 1.09-1.65
32-36 0.03-0.01 0.43-0.64
22-24 0.33-0.20 1.09-1.65
32-36 0.03-0.01 0.43-0.64
22-24 0.33-0.20 1.09-1.65
32-36 0.03-0.01 0.43-0.64
UNCONTROLLED COPY
TYPE 4D
Order No. 63811-8700
Strip Length
In.
mm
.043-.065 2.54-3.17 .100-.125
.043-.065 2.54-3.17 .100-.125
.043-.065 2.54-3.17 .100-.125
.017-.025 2.54-3.17 .100-.125
.043-.065 2.54-3.17 .100-.125
.017-.025 2.54-3.17 .100-.125
.043-.065 2.54-3.17 .100-.125
.017-.025 2.54-3.17 .100-.125
Page 1 of 8
In.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63811-8700 and is the answer not in the manual?

Questions and answers

Related Manuals for molex 63811-8700

Summary of Contents for molex 63811-8700

  • Page 1 TOOL Application Tooling TYPE 4D Specification Sheet Order No. 63811-8700 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position...

  • Page 2: Definition Of Terms

    Hand Crimp Tool for SL™ Crimp Terminals DEFINITION OF TERMS BEND UP ROLLING CONDUCTOR BRUSH BELL MOUTH CRIMP INSULATION CRIMP TWISTING STRIP LENGTH BEND DOWN CRIMP HEIGHT The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.

  • Page 3: Operation

    1. Pull Force should be measured with no influence from the insulation crimp. 2. The above specifications are guidelines to an optimum crimp. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
  • Page 4 Hand Crimp Tool for SL™ Crimp Terminals WIRE STOP IS PART OF WIRE THE LOCATOR AGAINST THE TERMINAL WIRE STOP PRE-STRIPPED WIRE Figure 5 WIRE TERMINAL Note: The tamper proof ratchet action will not release the tool until it has been fully closed. WIRE 8.

  • Page 5: Maintenance

    Hand Crimp Tool for SL™ Crimp Terminals Right or Left Hand Operation JAWS OPEN This hand tool has an added feature that can be converted from a right handed application to a left PULL OPEN handed application. It is necessary to reverse the tooling TOOLING TOOLING if using the left handed application along with the locator.

  • Page 6: Warranty

    SETTING WHEEL warranty. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. CAUTIONS: 1. Manually powered hand tools are intended for low volume or field repair. This tool is intended for production use.
  • Page 7 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.

  • Page 8: Parts List

    Hand Crimp Tool Figure 13 63811-8775 Locator Assembly 63810-0104 Spring, Return 63810-0105 Spring, Ratchet RATCHET RELEASE LEVER Figure 13 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No. ATS-638118700 Release Date: 07-30-07 Page 8 of 8 Revision: C Revision Date: 03-29-12...
