Hand Crimp Tool For
CTX150 SWS Receptacle Terminals

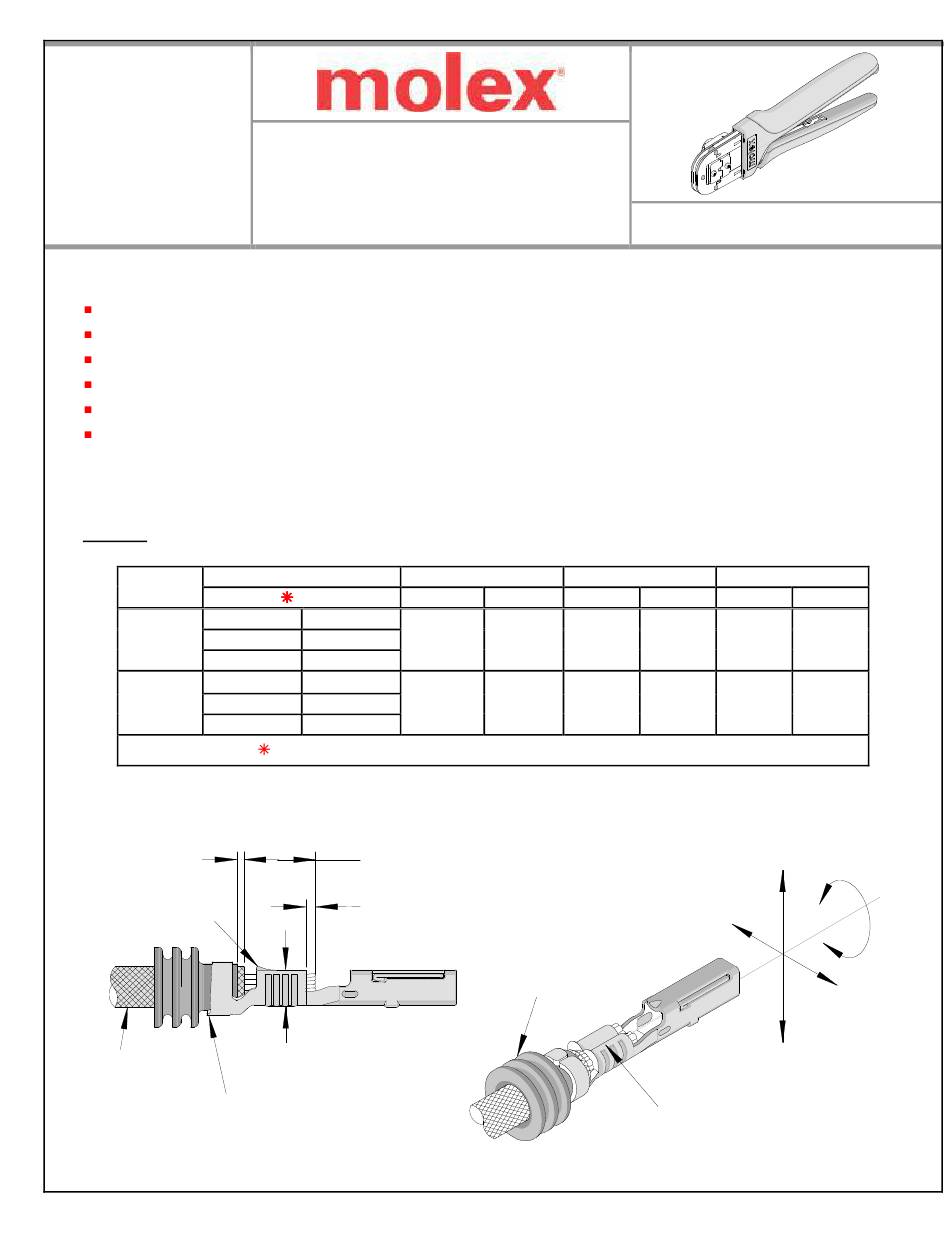

HAND CRIMP
TOOL
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is IPC/WHMA A-620 Class 2 compliant as indicated
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: CTX150 SWS Receptacle Terminals 1.50 mm
Terminal
Series No.
502307-3003
502307
502307-3103
502307-3403
34806-3003
34806
34806-3103
34806-3403
DEFINITION OF TERMS
0.05 - 0.40 (REF)
SEAL POSITION
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-638234700
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Reel
Wire Type
502307-3008
502307-3108
T3-ZHID
502307-3503
34806-3008
T3-ZHID
34806-3108
34806-3503
Customer to cut off terminal from reel: 0.30mm .012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 08-26-13
Revision Date: 08-26-13
2
.
Wire Size
Insulation Diameter
mm²
mm
1.50 mm2
2.10-2.25
1.50 mm2
2.10-2.25
SEAL
UNCONTROLLED COPY
TYPE 4D
Order No. 63823-4700
Strip Length
In.
mm
.083-.089
4.50-5.00
.177-.197
.083-.089
4.50-5.00
.177-.197
BEND UP
TWISTING
BEND
DOWN
SEAM
In.
ROLLING
Page 1 of 7
