molex 63811-4700 Specification Sheet

molex 63811-4700 Specification Sheet

Tool kit for mlx crimp terminals

Advertisement

Quick Links

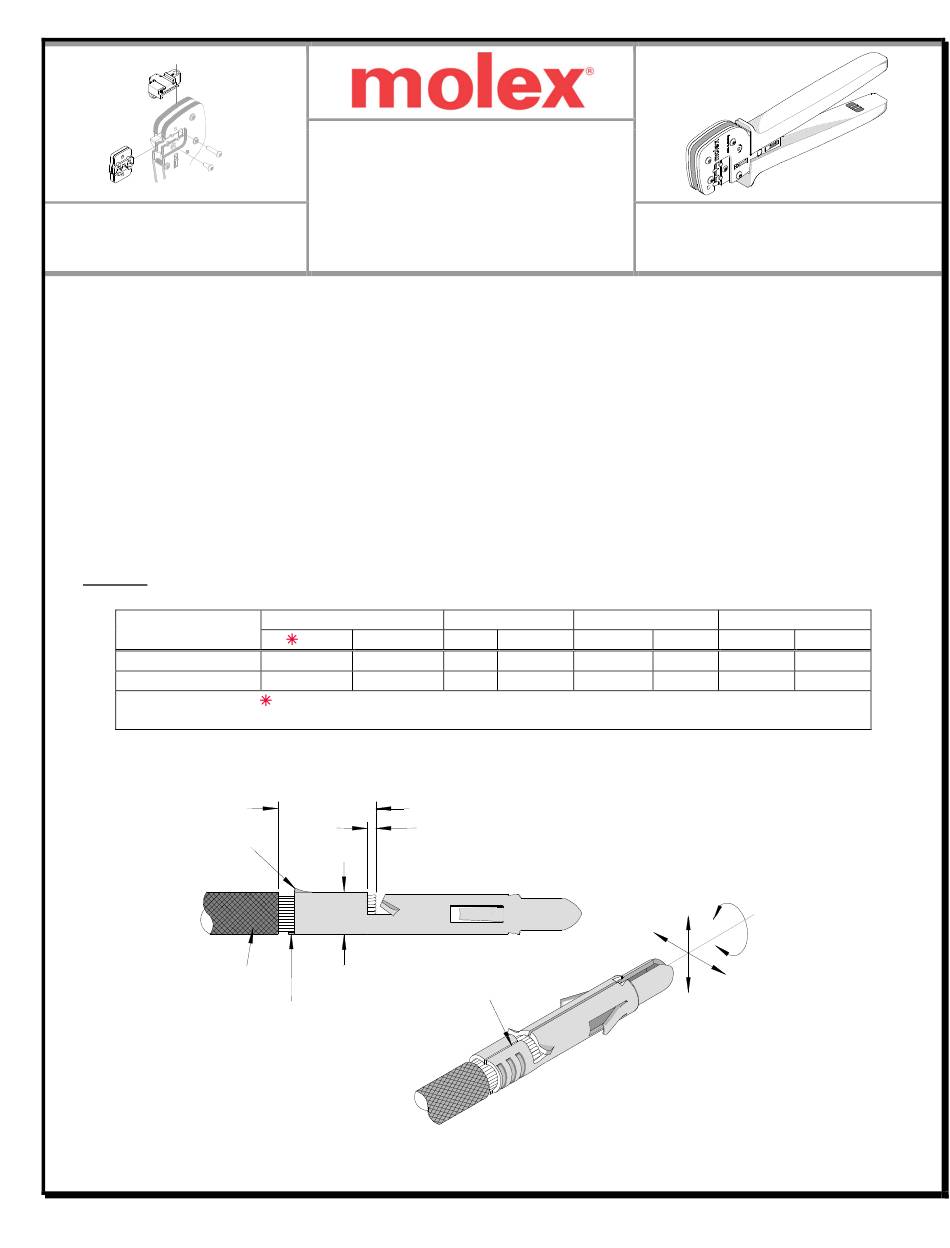

Tool Kit for MLX Crimp Terminals
Tool Kit
Order No. 63811-4770

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head, which is installed
%
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool
Many different Tool kits can be used with a single Battery Powered Tool
%
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant
%

SCOPE

Products: MLX Crimp Terminals, 10-12 AWG.
Terminal Series No.
36663
36664

DEFINITION OF TERMS

BELL MOUTH
WIRE
Doc No: ATS-6381147HM Release Date: 04-29-05
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
Reel
Loose
36663-0001
36663-0002
36664-0001
36664-0002
Customer to cut off terminal from reel: 0.50mm (.020") maximum cut-off tab.
(1)This terminal series does not have an insulation crimp
STRIP LENGTH
CONDUCTOR
CONDUCTOR
CRIMP
CUT-OFF
TAB
Revision Date: 07-24-17
Wire Size
Insulation Diameter
AWG
mm²
mm
10-12
5.00-3.30
(1)
10-12
5.00-3.30
(1)
BRUSH
SEAM
UNCONTROLLED COPY
TYPE 4C

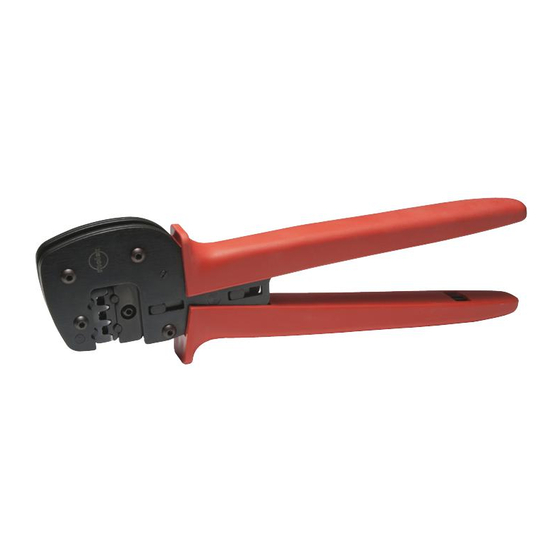

Hand Crimp Tool
Order No. 63811-4700
Strip Length
In.
mm
In.
(1)
6.40-7.14
.252-.281
(1)
6.40-7.14
.252-.281
BEND
UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63811-4700 and is the answer not in the manual?

Questions and answers

Summary of Contents for molex 63811-4700

  • Page 1 Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63811-4770 Order No. 63811-4700 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio...
  • Page 2 Pull force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
  • Page 3 Tool Kit for MLX Crimp Terminals Locator Installation and Removal HANDLE OPEN Follow the steps below to install or replace the locator. See TERMINAL Figure 2. LOCK IN UP RIGHT POSITION To install the locator 1. Position the locator with the hole over the brass pivot shaft, and snap it into place.
  • Page 4 All tools are warranted to be free of manufacturing defects for a period of 30 days. Should such a defect occur, Molex will repair or exchange the tool kit free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools.
  • Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex website for the Quality Crimp Handbook for more information on pull testing.
  • Page 6 Tool Kit for MLX Crimp Terminals The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order No. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63811-4770 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...
  • Page 7 Tool Kit for MLX Crimp Terminals HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63811-4770 Tool Kit with Locator 63811-4773 Locator Base 63811-4775 Locator M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT LOCATOR ONLY M4 X 10mm LONG BHCS...
  • Page 8 Phone: (402) 458-TOOL (8665) E-Mail: applicationtooling@molex.com Website: www.molex.com/applicationtooling Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners. UNCONTROLLED COPY...

This manual is also suitable for:

63811-477036663-000136663-000236664-000136664-0002
