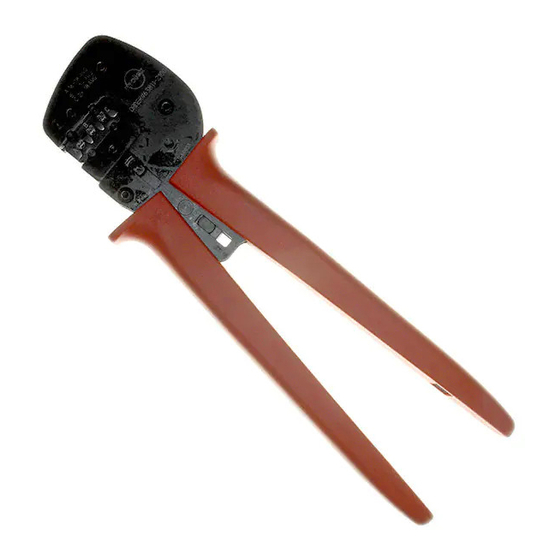

Hand crimp tool

Advertisement

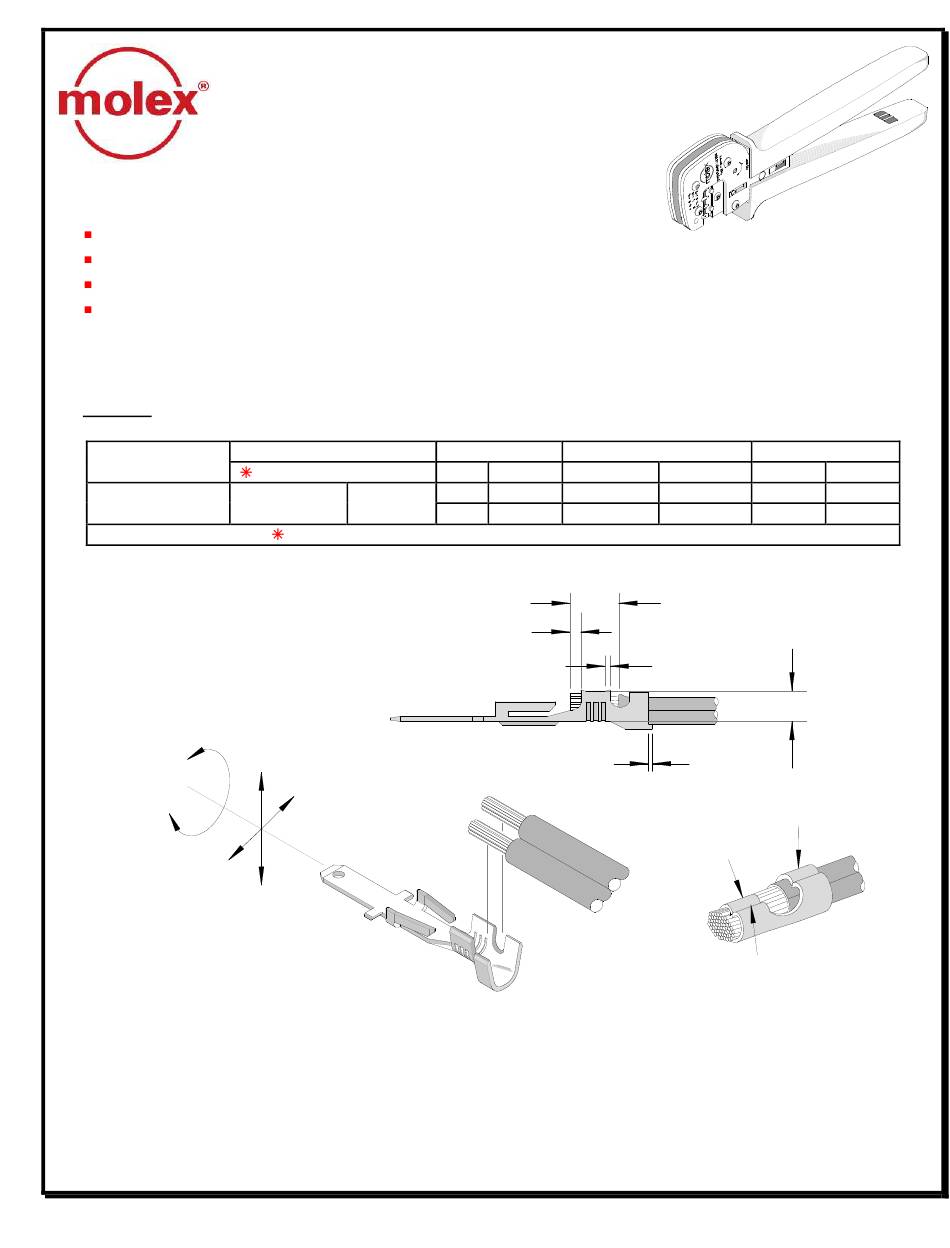

Hand Crimp Tool for "Sabre™ Crimp Terminals
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant
SCOPE
Products: Sabre™ Male Crimp Terminal 14-18 or Double 18 AWG wires placed vertically.
Terminal Series No.
43178
DEFINITION OF TERMS
BEND UP
ROLLING
Doc No. ATS-638112100
Revision: F
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-2100
Terminal Order No.
Available in Reel form only
43178-2001
43178-2002
43178-6001
43178-6002 (2) 18
Follow the Cut-Off Tab specifications on Applicator specification sheets.
TWISTING
BEND
DOWN
Release Date: 12-26-00
Revision Date: 05-03-10
Wire Size
Insulation Diameter
AWG
mm²
mm
14-18 2.00-0.80
3.03-4.57
(2) 0.80
(2) 2.79 Max. (2).110 Max. 3.96-5.54 .156-.218
STRIP LENGTH
BRUSH
CUT-OFF TAB
UNCONTROLLED COPY
Strip Length
in
mm
.119-.180
3.96-5.54 .156-.218
CONDUCTOR
CRIMP HEIGHT
BELL MOUTH
INSULATION CRIMP
CONDUCTOR CRIMP
SEAM
TYPE 4C
in
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43178 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for molex 43178 Series

  • Page 1 Hand Crimp Tool for “Sabre™ Crimp Terminals HAND CRIMP TOOL SPECIFICATION SHEET Order No. 63811-2100 FEATURES TYPE 4C A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant SCOPE Products: Sabre™...
  • Page 2: Operation

    Wires should be placed vertically for double crimp. OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
  • Page 3 Hand Crimp Tool for “Sabre™ Crimp Terminals HANDLE OPEN WIRE AGAINST TERMINAL WIRE STOP WIRE IN TERMINAL JAWS PARTIALLY CLOSED LOCATOR PUSH HERE TO CLOSED OPEN WIRE STOP Figure 2 Figure 3 4. Return the locator to its original position. 5.
  • Page 4: Maintenance

    Hand Crimp Tool for “Sabre™ Crimp Terminals Locator Replacement LIFT UP ON THE LOCATOR See the parts list on the last page of this document for the proper locator order number. Follow the steps below to replace the locator. PRESS DOWN ON THE BRASS 1.
  • Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 6: Parts List

    2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No. ATS-638112100 Release Date: 12-26-00 Page 6 of 6 Revision: F Revision Date: 05-03-10...
