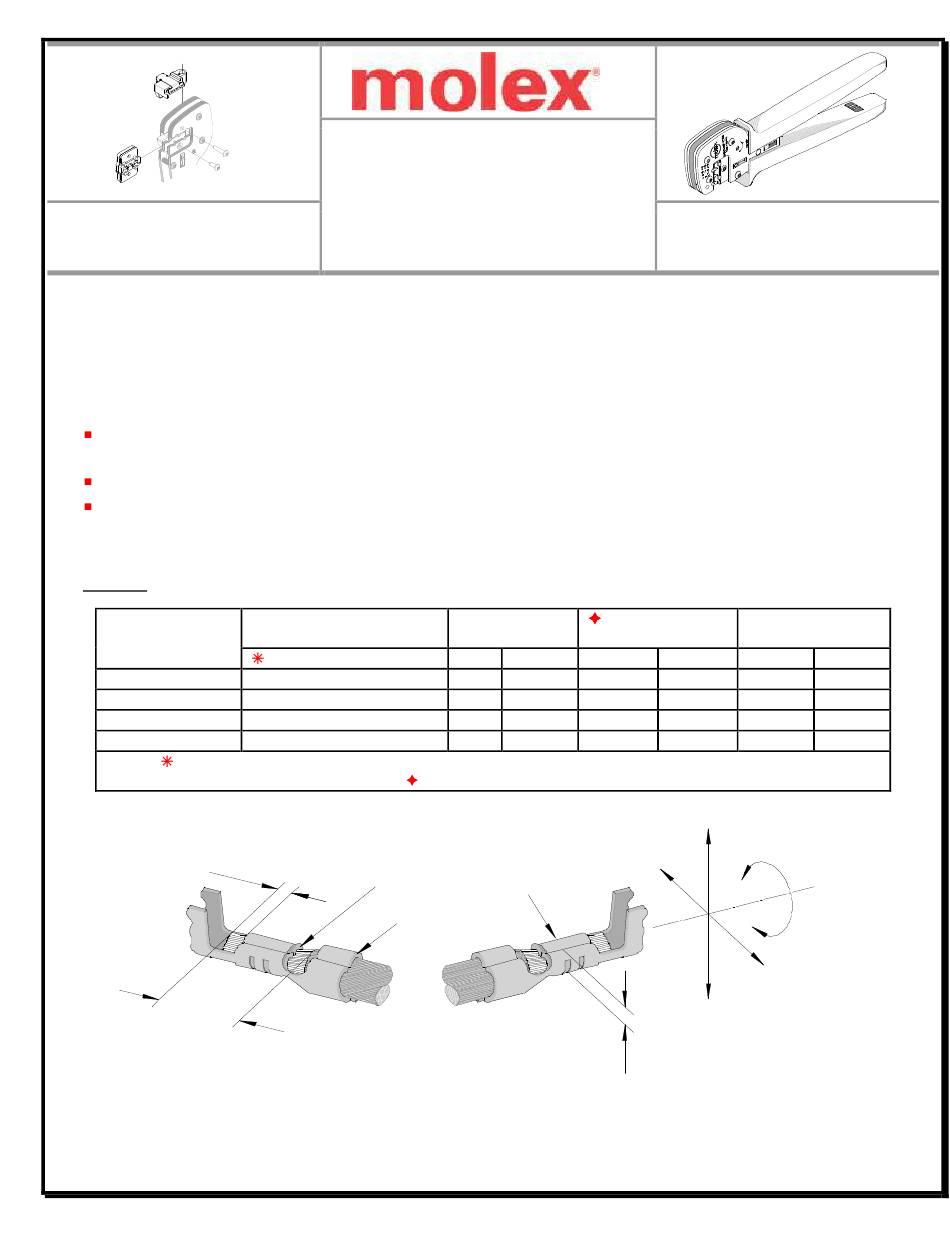

Tool Kit for 1.80mm (.070") Wide VersaBlade™ Crimp Terminals
Tool Kit
Order No. 63819-0670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 1.80mm (.070") Wide VersaBlade™ Wire –to-Wire Crimp Terminal, 14-18 AWG.
Terminal Series No.
35745
35746
35747
35748
The terminals above are reeled parts only. Customer to cut off terminal from reel: 0.30mm (.012") maximum.
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381906HM Release Date: 08-29-07
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
35745-0210
35746-0210
35747-0210
35748-0210
See Conditions on Page 2.
BELL MOUTH
INSULATION
CRIMP
▲SEE NOTE
Revision Date: 09-17-10
Insulation Diameter
Wire Size
Maximum
AWG
mm²
mm
14-18
2.00-0.80
.150
14-18
2.00-0.80
.150
14-18
2.00-0.80
.150
14-18
2.00-0.80
.150
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4C

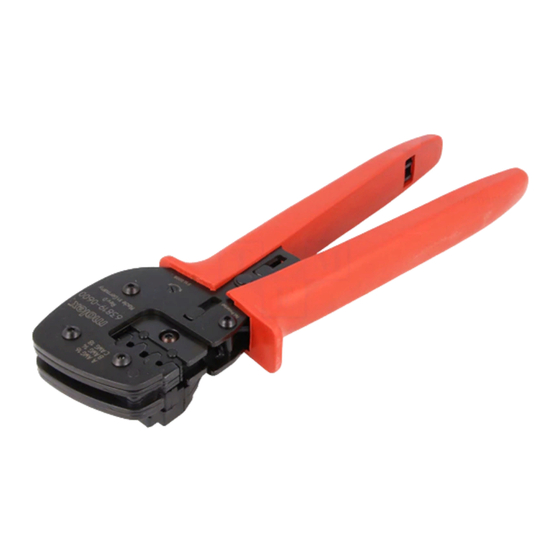

Hand Crimp Tool
Order No. 63819-0600
Strip Length
in
mm
in
3.80
4.00-4.80
.157-.189
3.80
4.00-4.80
.157-.189
3.80
4.00-4.80
.157-.189
3.80
4.00-4.80
.157-.189
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63819-0600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 63819-0600

Summary of Contents for molex 63819-0600

  • Page 1 Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63819-0670 Order No. 63819-0600 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
  • Page 2 Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 3: Installation

    Tool Kit for 1.80mm (.070”) Wide VersaBlade™ Crimp Terminals POWER CRIMP HEAD LIFT UP ON THE LOCATOR PUNCHES M4 X 18 LONG BHCS PRESS DOWN ON THE BRASS M4 X 10 LONG PIVOT SHAFT BHCS SWING LOCATOR ANVILS Figure 1 Figure 2 OPEN INSTALLATION...

  • Page 4: Operation

    Tool Kit for 1.80mm (.070”) Wide VersaBlade™ Crimp Terminals OPERATION Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open. HANDLE OPEN WIRE AGAINST WIRE STOP...

  • Page 5: Maintenance

    Should such a defect occur, we will repair or exchange the tool kit free of charge. This repair or exchange will not be applicable to altered, misused, or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY...
  • Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 7 Tool Kit for 1.80mm (.070”) Wide VersaBlade™ Crimp Terminals The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63819-0670 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head...

  • Page 8: Hand Tool Parts List

    Tool Kit for 1.80mm (.070”) Wide VersaBlade™ Crimp Terminals HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63819-0670 Tool Kit with Locator 63819-0673 Locator Base 63819-0675 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT...

  • Page 9: Power Head Parts List

    Power Crimp Head 63819-0670 63819-0670 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 11 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381906HM Release Date: 08-29-07 Page 9 of 9 Revision: D Revision Date: 09-17-10...
