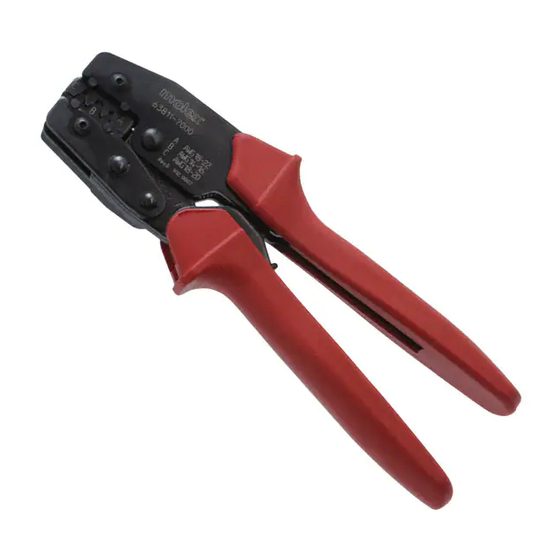

Hand Tool for Disk Drive Power Connection System Crimp Terminals
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant
SCOPE
Products: Disk Drive Power Connection System Crimp Terminal 14-22 AWG.
Terminal
Series No.
Loose Piece
02-08-1202
02-08-1235
8980
02-08-1204 02-08-1337 02-08-1203 02-08-1336 18-22 0.80-0.35 1.52-2.30 .060-.090 4.75-5.54 .187-.218
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-638117000
Revision: B
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-7000
Terminal Order No.
Reel
02-08-1237
02-08-1201
02-08-1334
02-08-1335
02-08-1234
02-08-1236 18-20 0.80-0.50 2.00-2.90 .079-.114 4.75-5.54 .187-.218
Follow the Cut-Off Tab specifications on Applicator specification sheets.
These Terminals cannot be removed from the reel by manual cutting.
An applicator must be used or the terminals will not function properly.
BELL MOUTH
INSULATION
CRIMP
Release Date: 01-19-07
Revision Date: 03-29-08
Wire Size
Insulation Diameter
AWG
mm²
mm
14-16 2.00-1.30 2.75-3.56 .109-.140 4.75-5.54 .187-.218
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 2C
Strip Length
In.
mm
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
In.
Advertisement
Table of Contents
Related Manuals for molex 63811-7000
Summary of Contents for molex 63811-7000
- Page 1 Hand Tool for Disk Drive Power Connection System Crimp Terminals HAND CRIMP TOOL SPECIFICATION SHEET Order No. 63811-7000 TYPE 2C FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position...
- Page 2 71.2 16.0 OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing...
- Page 3 Hand Tool for Disk Drive Power Connection System Crimp Terminals TERMINAL SWING OPEN WIRE STOP WIRE PUSH HERE LOCATOR TERMINAL LOCATOR TO OPEN IN PLACE WIRE STOP Figure 2 Note: A crimp height chart is provided with this manual as Reference Only. LOCATOR Due to the wide range of wires, strands, insulation diameters, and IN PLACE...
- Page 4 Hand Tool for Disk Drive Power Connection System Crimp Terminals Maintenance LUBRICATION POINTS (BOTH SIDES) LIGHT OIL (EVERY 3 MONTHS OR It is recommended that each operator of the tool be made aware 5,000 CRIMPS) of, and responsible for, the following maintenance steps: 1.
- Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 6 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638117000 Release Date: 01-19-07 Page 6 of 6 Revision: B Revision Date: 03-29-08...
