INSTALLATION INSTRUCTIONS
6

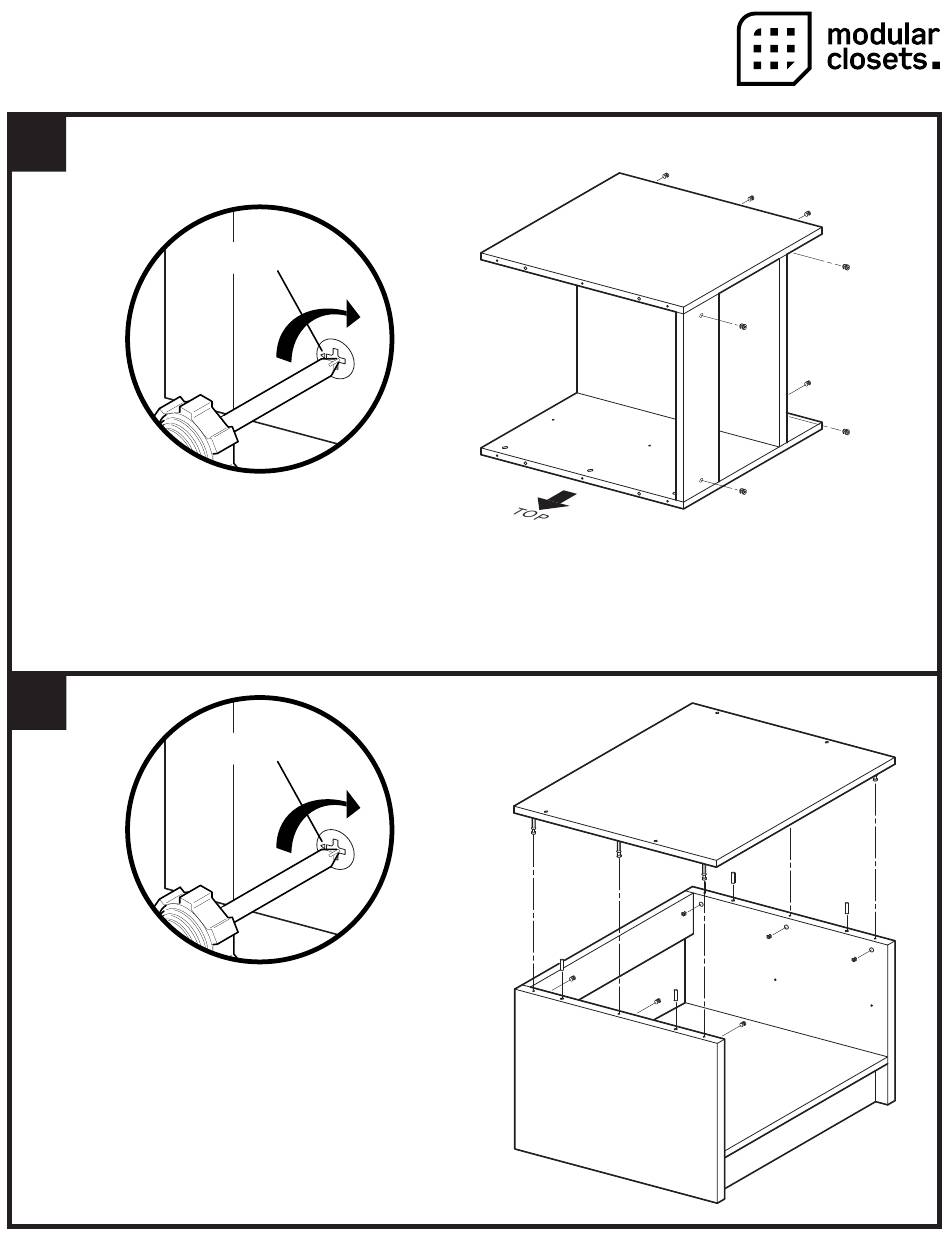

6.1
Insert Camlocks (K) in holes in Bench Set Shelf (H) and two Cleats (I) with arrow pointing toward Cam Post
opening. Be sure Camlocks engage Cam Posts, and are fully seated in Shelf and Cleats.
6.2
Tighten Camlocks (K) clockwise to lock.
7
7.1
Insert four Wood Dowels (M) into holes in of Bench
Left Side Panel (E) and Base Right Side Panel (F).
7.2
Install Bench Top Shelf (G) onto assembled Base. BE
SURE Wood Dowels in Left Side Panel (E) and Right
Side Panel (F) engage drilled holes in Top Shelf, and Top
Shelf is pressed flush against Side Panels and Cleat (I).
7.3
Insert Camlocks (K) in holes in Bench Left Side Panel
(E) and Bench Right Side Panel (F). BE SURE Cam-
locks engage Cam Posts, and are fully seated in Side
Panels. Tighten Camlocks (K) clockwise to lock.
ASSEMBLY AND
MUDROOM
ARROW TOWARD
CAM POST OPENING
ARROW TOWARD
CAM POST OPENING
K
H
I
G
M
K
M
K
K
K
K
K
K
K
M
M
K
K
F
K
E
