INSTALLATION INSTRUCTIONS
21

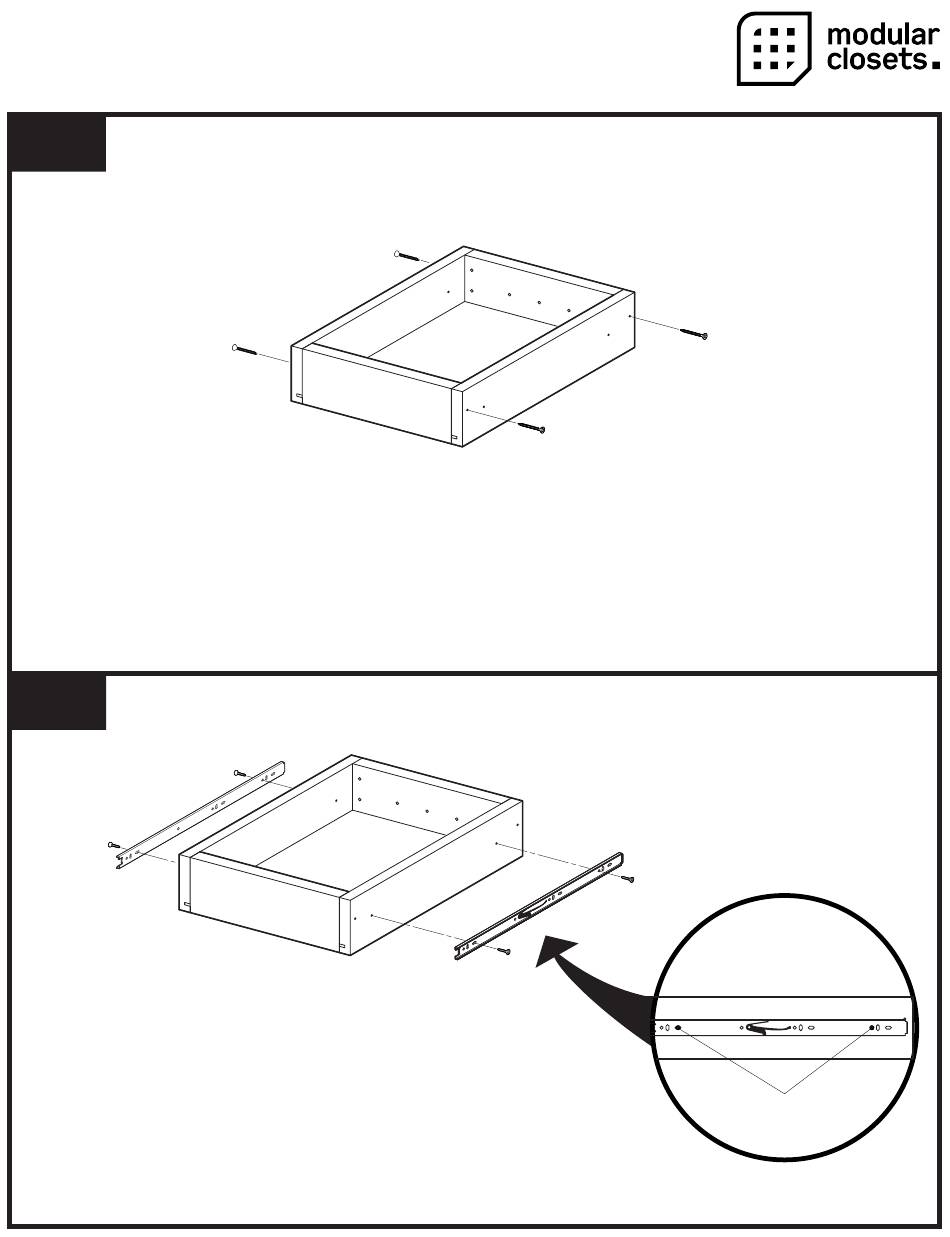

21.1 Secure Side Drawer Panels (T) to Front Drawer Panel (R) and Rear Drawer Panel (S) using 1.0" Drawer Side
Screws (BB).
22
W
AA
NOTE: Drawer Slides (W) and Shelf Slides (X) are shipped
assembled. Lift Slide Release to separate Drawer
Slide from Shelf Slide.
22.1
Position Drawer Slide (W) against Side Drawer Panel (T), then secure
with two 5/8" Drawer Slide Screws (AA) at locations shown.
22.2
Repeat for second Drawer Slide (W).
ASSEMBLY AND
MUDROOM
BB
T
BB
S
T
AA
R
BB
T
W
AA
BB
AA
AA
