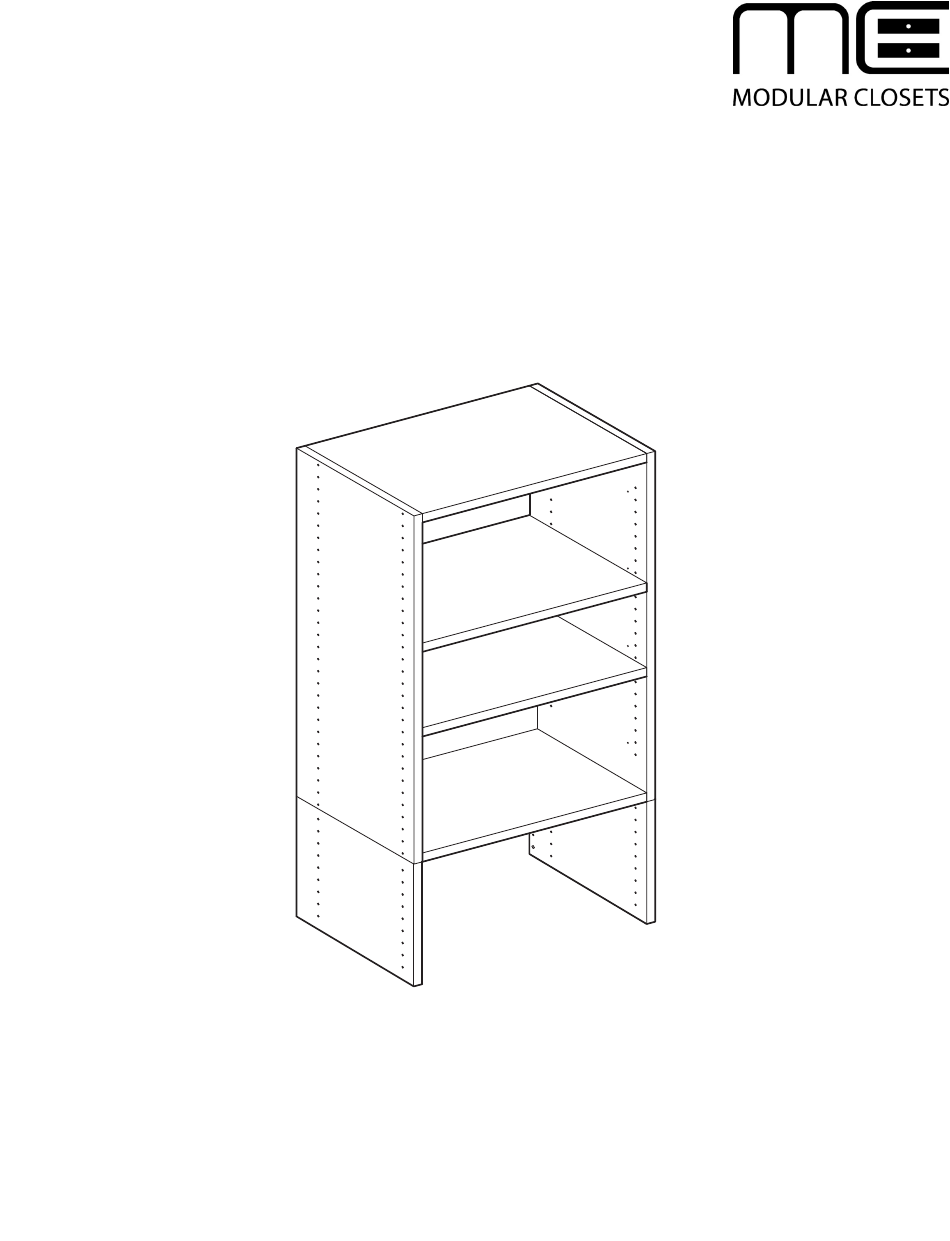

Page 1: Assembly And Installation
1-844-969-4247 support@modularclosets.com CUBBY TOWER 18" / 24" / 30" ASSEMBLY AND INSTALLATION INSTRUCTIONS... -
Page 2: Parts List
ASSEMBLY AND INSTALLATION INSTRUCTIONS CUBBY TOWER - 18" / 24" / 30" PARTS LIST Left Side Panel (Qty 1) Floor Support Panel (Qty 2) Right Side Panel (Qty 1) Cam Post (Qty 18) Adjustable Shelf (Qty 2) Camlock (Qty 19) Set Shelf (Qty 2) Shelf Pins (Qty 8) Rear Hanging Cleat (Qty 3) - Page 3 ASSEMBLY AND INSTALLATION INSTRUCTIONS CUBBY TOWER - 18" / 24" / 30" 2.1 Install one Cam Post (F) into each of the eight holes on Left Side Panel (A) and Right Side Panel (B). Tighten until Cam Posts are seated against Side Panels. NOTE: There are drilled holes in the bottom edge of Side Panels for installation BOTTOM of Floor Support Panels.
- Page 4 ASSEMBLY AND INSTALLATION INSTRUCTIONS CUBBY TOWER - 18" / 24" / 30" 4.1 Install Left Side Panel (A) onto assembled Set Shelves (D) and Rear Hanging Cleats (E). BE SURE dowel pins in Shelves and Cleats engage drilled holes in Side Panel, and Side Panel is pressed flush against Set Shelves and Cleats.
- Page 5 ASSEMBLY AND INSTALLATION INSTRUCTIONS CUBBY TOWER - 18" / 24" / 30" FOR FLOOR MOUNT INSTALLATIONS ONLY Install one Cam Post (G) into each of two Floor Support Panels (F). Tighten until Cam Posts are seated against Panels. Assemble Floor Support Panels (F) onto Rear Hanging Cleat (E) by sliding the Cam Posts (G) into Cleat.
- Page 6 ASSEMBLY AND INSTALLATION INSTRUCTIONS CUBBY TOWER - 18" / 24" / 30" FLOOR MOUNT WALL MOUNT PILOT PILOT HOLES HOLES 12" FROM STUDS STUDS FLOOR INSTALLATION Determine the mounting location for the unit. The unit can be wall mounted or floor mounted (by installing the Floor Support Panels as shown in step 6).
- Page 7 ASSEMBLY AND INSTALLATION INSTRUCTIONS CUBBY TOWER - 18" / 24" / 30" 8.1 Secure Rear Hanging Cleats (E) to studs using 3" Screws (O). For each Adjustable Shelf (C), insert four Shelf Pins (I) into pin holes inside the Tower at the desired height. Rest Adjustable Shelves (C) on Shelf Pins (I).
