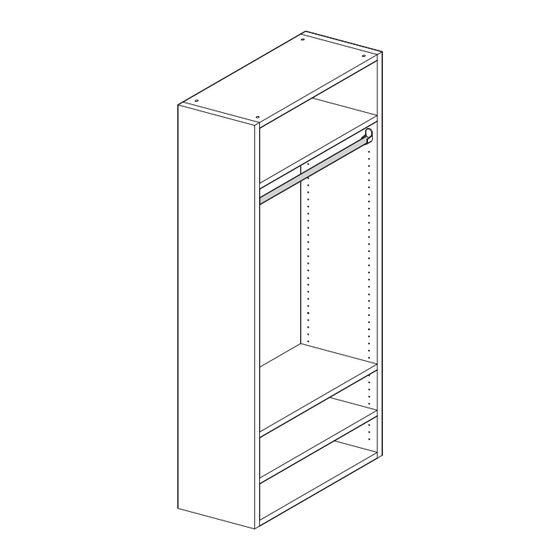

- Page 1 1-844-969-4247 support@modularclosets.com HANGING TOWER UNIT ASSEMBLY AND INSTALLATION INSTRUCTIONS...
-
Page 2: Assembly And Installation Instructions
ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER PARTS LIST BOX 1 BOX 2 / BOX 3 FINISHED EDGE FINISHED EDGE Rear Hanging Cleat (Qty 2 each box) Set Shelf (Qty 2 each box) Hanging Rod (Qty1 - Box 2) Rod Bracket (Qty 2 - Box 2) Cam Post (Qty 12 each box) Camlock (Qty 12 each box) Screw, Square Drive, 2.5"... -
Page 3: Tools Required
ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER TOOLS REQUIRED (not included unless noted) Level Drill, 3/32" bit size Stud Finder Phillips Screwdriver Drill Bit, Square, #2 Lay parts out on a protective surface to prevent damage. Tip: Spread out the cardboard packaging to use as a protective surface. - Page 4 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER 3.1 Assemble Set Shelves (D) and Rear Hanging Cleats (C) onto Right Side Panel (B) by sliding the Shelves and Cleats onto the Cam Posts (J) on Side Panel. BE SURE dowel pins in Shelves and Cleats engage drilled holes in Side Panel, and all parts are pressed flush against Side Panel.
- Page 5 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER 4.1 Install Left Side Panel (A) onto assembled Set Shelves (D) and Rear Hanging Cleats (E). BE SURE dowel pins in Shelves and Cleats engage drilled holes in Side Panel, and Side Panel is pressed flush against Set Shelves and Cleats.
- Page 6 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER ARROW TOWARD CAM POST OPENING Insert Camlocks (K) in holes in Set Shelves (D) and Rear Hanging Cleats (C), with arrow pointing toward Cam Post opening. Be sure Camlocks engage Cam Posts, and are fully seated in Shelves and Cleats. Tighten Camlocks (K) clockwise to lock.
- Page 7 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER FOR LEG EXTENSION KIT INSTALLATIONS ONLY Leg Extension Kit purchased separately) Insert four Wood Dowels (M) into holes in edges of Left Leg Extension (F) and Right Leg Extension (G). Install one Cam Post (J) each into Left Leg Extension (F) and Right Leg Extension (G).
-
Page 8: Installation
ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER WITH LEG WITHOUT LEG EXTENSION KIT EXTENSION KIT PILOT PILOT HOLES HOLES STUDS PILOT PILOT HOLES HOLES 12" FROM FLOOR INSTALLATION Determine the mounting location for the unit. The unit can be wall mounted or floor mounted (by installing the Floor Support Panels as shown in step 6). - Page 9 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER 8.1 Secure Rear Hanging Cleats (C) to studs using 3" Screws (N).
- Page 10 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER 9.1 Install one Rod Bracket (I) on Left Side Panel (A) and Right Side Panel (B) and secure each Bracket with one screw (O).
- Page 11 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER NOTE: Use care when installing Hanging Rod (H) to avoid scratching finish inside unit. 10.1 Lower Hanging Rod (H) into Rod Brackets (I) on Left Side Panel (A) and Right Side Panel (B).
- Page 12 ASSEMBLY AND INSTALLATION INSTRUCTIONS HANGING TOWER 11.1 Insert eight Shelf Pins (L) into pin holes inside the Tower at the desired height. 11.2 Rest Adjustable Shelves (E) on Shelf Pins (L).
