INSTALLATION INSTRUCTIONS
12
A
M
12.1
Insert four Wood Dowels (M) into holes in edges of Upper Left Side Panel (A) and Upper Right Side Panel (B).
Note: There are two pairs of holes in each Side Panel; one pair for flush alignment of the Upper Shelf and Bench,
and one pair to offset the Upper Shelf when necessary to accomodate a baseboard. BE SURE to install Wood
Dowels (M) in the appropriate holes for your installation.

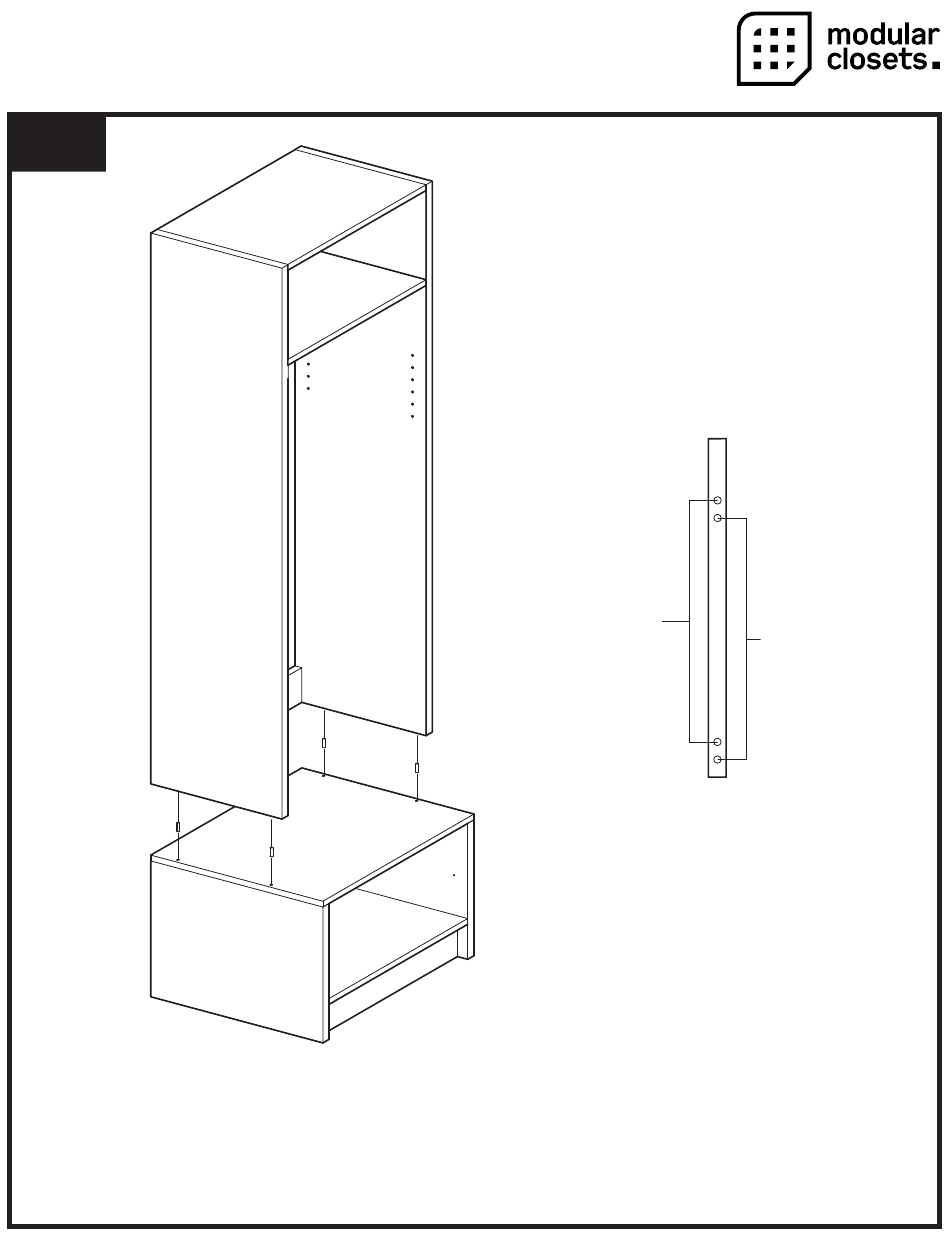

12.2
Install assembled Upper Shelf onto assembled Bench. BE SURE dowel pins in Upper Left Side Panel (A) and Upper
Right Side Panel (B) engage drilled holes in Bench Top Shelf (G), and Upper Shelf is pressed flush against Bench.
ASSEMBLY AND
MUDROOM
M
M
M
Upper Side Panel
B
USE TO
ALIGN FLUSH
G
BACK
USE FOR
OFFSET
FRONT
