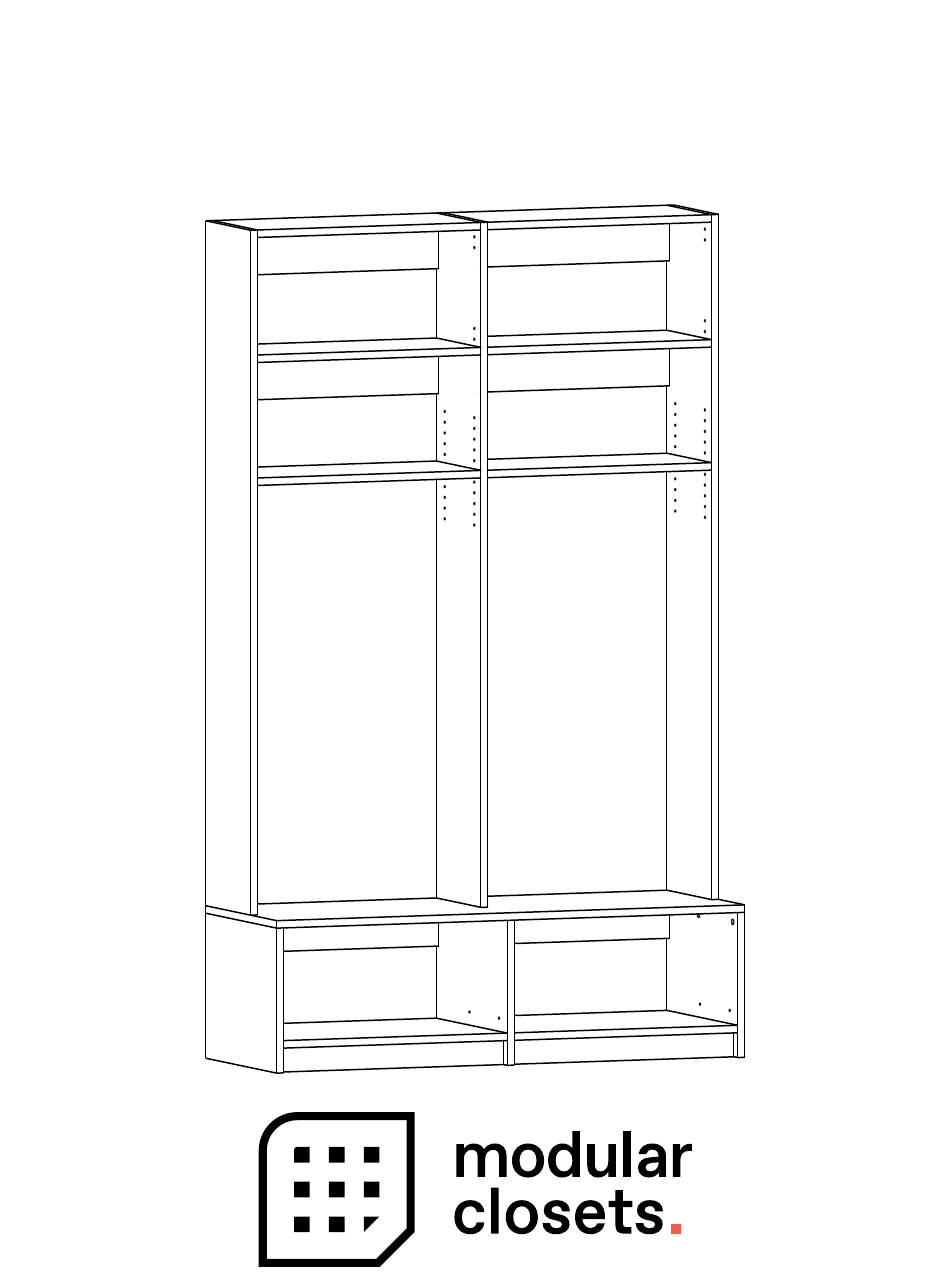

- Page 1 MUDROOM ASSEMBLY INSTRUCTIONS...
- Page 2 We are committed to providing you with a seamless and efficient storage solution that enhances the organization and functionality of your space. Before you embark on assembling your new Mudroom system, we want to emphasize a crucial step to ensure a smooth and successful installation.
- Page 3 Assembly and Installation Manual The bench will be built first in the following steps. On page 20 starts the Upper Assembly. On page 34 starts the drawer boxes. On page 49 starts the doors.
- Page 4 Assembly and Installation Manual Boxes Needed MDR-BSP Mudroom bench side panel pack MDR-BCP Mudroom Bench Center Panel Pack (1 or 2 Pack) Single pack or double pack or both depending on mudroom size MDR-BFS Mudroom Bench Shelf Pack Single pack or...
- Page 5 Assembly and Installation Manual Hardware Packs Needed HRDP-MDR Rafix Campost (with locking mechanism) Long Wooden Dowel Camlock Screw dowel Wooden Dowel Double Campost How to use the Cam lock system: 180° Tools needed Philips screw Stud finder Drill Rubber mallet Level driver 2 person assembly suggested...
- Page 6 Assembly and Installation Manual Step 1 From Box take the bench side panels and insert the hardware as MDR-BSP shown. Campost Camlock Screw Dowel...
- Page 7 Assembly and Installation Manual Step 2 For all center panels in boxes MDR-BCP insert the double camposts and longer wood dowels until about halfway. Insert the screw dowel. Flip over and insert second screw dowel. Long Wooden Double Campost Dowel Screw dowel WARNING Please ensure to measure...
- Page 8 Assembly and Installation Manual Step 3 From the box MDR-BFS, insert camlocks in to the shelves and cleats, and rafixes into the toekicks. Camlock Rafix Repeat Steps 2-3 for all the Mudroom Bench Shelf packs...
- Page 9 Assembly and Installation Manual Step 4 Connect the cleats and shelves to the left side panel.
- Page 10 Assembly and Installation Manual Step 5 Tighten the camlock from the back of the unit. 180°...
- Page 11 Assembly and Installation Manual Step 6 Carefully, flip the unit to the side and tighten the camlocks on the underside. (We recommend you line your floor to prevent scratches.) 180° For Center Panels continue to step 7, for Side Panel continue to step 10.
- Page 12 Assembly and Installation Manual Step 7 Remove the pre-installed wooden dowels from cleat and shelf. Once removed, connect the center panel to the shelf and cleat. Note: Note: The use of pliers The use of pliers might be necessary might be necessary to remove the default to remove the default dowels...
- Page 13 Assembly and Installation Manual Step 8 After removing the pre-installed dowels on one side, connect a shelf and cleat to the center panel. Do not remove any dowels from the other side of the cleat and shelf unless connecting to another center panel. Remove Dowels only from this side...
- Page 14 Assembly and Installation Manual Step 9 Tighten the camlocks from the underside 180° Repeat steps 7-9 for each Center Panel.
- Page 15 Assembly and Installation Manual Step 10 Connect the right side panel and tighten the camlocks. 180°...
- Page 16 Assembly and Installation Manual Step 11 Connect the toe kicks to the screw dowels, then tighten the rafixes shown.
- Page 17 Assembly and Installation Manual Step 12 Very carefully, flip the unit back upright and then tighten the camlocks for the cleats in the back 180°...
- Page 18 Assembly and Installation Manual Step 13 Insert the hardware into the bench top Campost Wooden Dowel This step requires the ‘shorter’ wooden dowels previously set aside. Please ensure you are using the correct size variant for this step. WARNING...
- Page 19 Assembly and Installation Manual Step 14 Flip over and insert, then tighten the camlocks shown. 180°...
- Page 20 Assembly and Installation Manual The upper shelves assembly will begin now...
- Page 21 Assembly and Installation Manual Boxes Needed MDR-USP Mudroom Upper side panel pack MDR-UCP Mudroom Upper Center Panel Pack(1 or 2 Pack) Single pack or double pack or both depending on mudroom size MDR-UFS (19.5 / 25) Mudroom Upper Shelf Pack-(19.5” / 25”)
- Page 22 Assembly and Installation Manual Hardware Packs Needed HRDP-MDR Rafix OVVO Dowel (with locking mechanism) Wedgefix Screw Dowel Push Dowel...
- Page 23 Assembly and Installation Manual Step 1 Insert hardware into Side Panels and Center Panels. Use the screw dowel in the spots shown. Screw Dowel...
- Page 24 Assembly and Installation Manual Step 1 (continued) For Center Panels (if applicable), flip the panel over and insert the hardware into the corresponding spots. Screw Dowel...
- Page 25 Assembly and Installation Manual Step 2 Insert rafix clips into a fixed shelf and wedgefixes into a cleat. (Supplied third shelf will be used later as an adjustable shelf.) Rafix Wedgefix (with locking mechanism)
- Page 26 Assembly and Installation Manual Step 3 Insert OVVO dowels into the appropriate bottoms of all side and center panels Please note that the second set of pre-drilled dowel holes at the bottom of the panel can be used when offsetting the unit from the wall to account for standard baseboards OVVO Dowel Offset .75”...
- Page 27 Assembly and Installation Manual Step 4 Take one side panel and one side/center panel (if applicable) and insert them into the top of the previouly assembled mudbench (at this point, two people are recommended to help keep the panels steady and upright). 2 Person Recommended...
- Page 28 Assembly and Installation Manual Step 5 Slide the cleat into the 4 lower screw dowels installed on the panels. 2 Person Recommended...
- Page 29 Assembly and Installation Manual Step 6 Connect the fixed shelf above the four lower screw dowels directly above the cleat. 2 Person Recommended...
- Page 30 Assembly and Installation Manual Step 7 Using a Philips screw driver, tighten and secure all 4 rafixes 2 Person Recommended...
- Page 31 Assembly and Installation Manual Step 8 Repeat steps 4-7 for the upper fixed shelf and cleat between the two side/ center panels. 2 Person Recommended...
- Page 32 Assembly and Installation Manual Step 9 Connect next center/side panel on top of the bench (all center panels should be used before the remaining side panel). 2 Person Recommended...
- Page 33 Assembly and Installation Manual Step 10 Repeat steps 5-9 for all remaining sections.
- Page 34 Assembly and Installation Manual The drawer boxes will be built next.
- Page 35 Assembly and Installation Manual Drawer assembly Boxes Needed MDR-DF Mudroom Drawer Front (There is a 1 per pack and 2 per pack box) MDR-DRB Mudroom Drawer Boxes (There is a 1 per pack and 2 per pack box) Tools needed...
- Page 36 Assembly and Installation Manual Hardware Packs Needed HRDP-MDRDW Campost Wooden Dowel Camlock Screw (for slide) Screw (for lock) How to use the Cam lock system 180°...
- Page 37 Assembly and Installation Manual Step 1 Removing the parts from MDR-DRB(s), insert cam locks, cam posts and wooden dowels in the drawer sides and back as shown below. Wooden Dowel Camlock Campost...
- Page 38 Assembly and Installation Manual Step 2 Connect the side panals to the back.
- Page 39 Assembly and Installation Manual Step 3 Tighten both cam locks by turning them 180°...
- Page 40 Assembly and Installation Manual Step 4 Slide the drawer bottom in...
- Page 41 Assembly and Installation Manual Step 5 Insert cam locks and camposts into drawer front as shown below. Wooden Dowel Campost...
- Page 42 Assembly and Installation Manual Step 6 Connect drawer front to drawer box.
- Page 43 Assembly and Installation Manual Step 7 Tighten cam locks on both sides.
- Page 44 Assembly and Installation Manual Step 8 Flip over the drawer and put the lock for slides in each corner and screw in as shown. Repeat steps 2 - 9 for all drawers. Lock for slides R,x1, L,x1 Screw for lock...
- Page 45 Assembly and Installation Manual Step 9 Attach the drawer slides to the lower half on both sides in each open cubby of the bench. Use the diagram below to match the screws to the correct opening. Screw (for slide)
- Page 46 Assembly and Installation Manual Step 10 Repeat for all remaining drawer slides on each open section.
- Page 47 Assembly and Installation Manual Step 11 Attaching drawer boxes to the rails is as simple as placing the drawer box into its correct place. Simply keep the rails retracted, take the drawer and slide it into the bench opening. It should connect automatically. If not see the step below.
- Page 48 Assembly and Installation Manual Step 11b If the slides did not catch, here is what to look for. On the drawer locks, the lever operated hinge should catch on the open slot of the extendable portion of the drawer slide shown below. The slide should also hook on to the back side of the drawer.
- Page 49 Assembly and Installation Manual The door asembly on the top shelves will be built next.
- Page 50 Assembly and Installation Manual Door Assembly Boxes Needed MDR-DO (19.5” has 1 per pack and 24” has 2 per pack ) Tools needed Door Hinges/Plates (Hardware Pack) Philips screw driver Rubber mallet...
- Page 51 Assembly and Installation Manual Hardware Packs Needed ALT-HRDP-DO Hinge Pull Plate Screw...
- Page 52 Assembly and Installation Manual Step 1 Take the hinge plate in the provided door hardware and line up the plate screws to fit into the top section of your choice. Plate...
- Page 53 Assembly and Installation Manual Step 2 Use screw driver to tighten hinge plates into the panel. Do not use a drill.
- Page 54 Assembly and Installation Manual Step 3 Slide door hinges from provided door hardware into the open slots of the doors. Hinge...
- Page 55 Assembly and Installation Manual Step 4 Using a screwdriver tighten only the highlighted captive screws on the door hinges 90 ° clockwise to lock them in place. Do not use a drill. 90 °...
- Page 56 Assembly and Installation Manual Step 4b (optional) Install Door Knob by securing 1” screw into any of the pilot screws on the back of the door. You may have to use a drill bit to punch through hole. Screw Pull...
- Page 57 Assembly and Installation Manual Step 5 Snap the door hinge into the installed plate hinge on the side panel.
- Page 58 Assembly and Installation Manual Step 6 Repeat steps 1-5 for all remaining doors. Please note larger variants of the mudroom will use double doors for each top cubby.
- Page 59 Hanging Rod Installation To install supplied rod cups please use this printed sheet as a guide. Line up this paper’s printed stencil holes, labeled A and B, to the vertical bores on the upper assembly panels. Use the center pilot line to accurately drill in the rod cups to the appropriate side/center panels.
