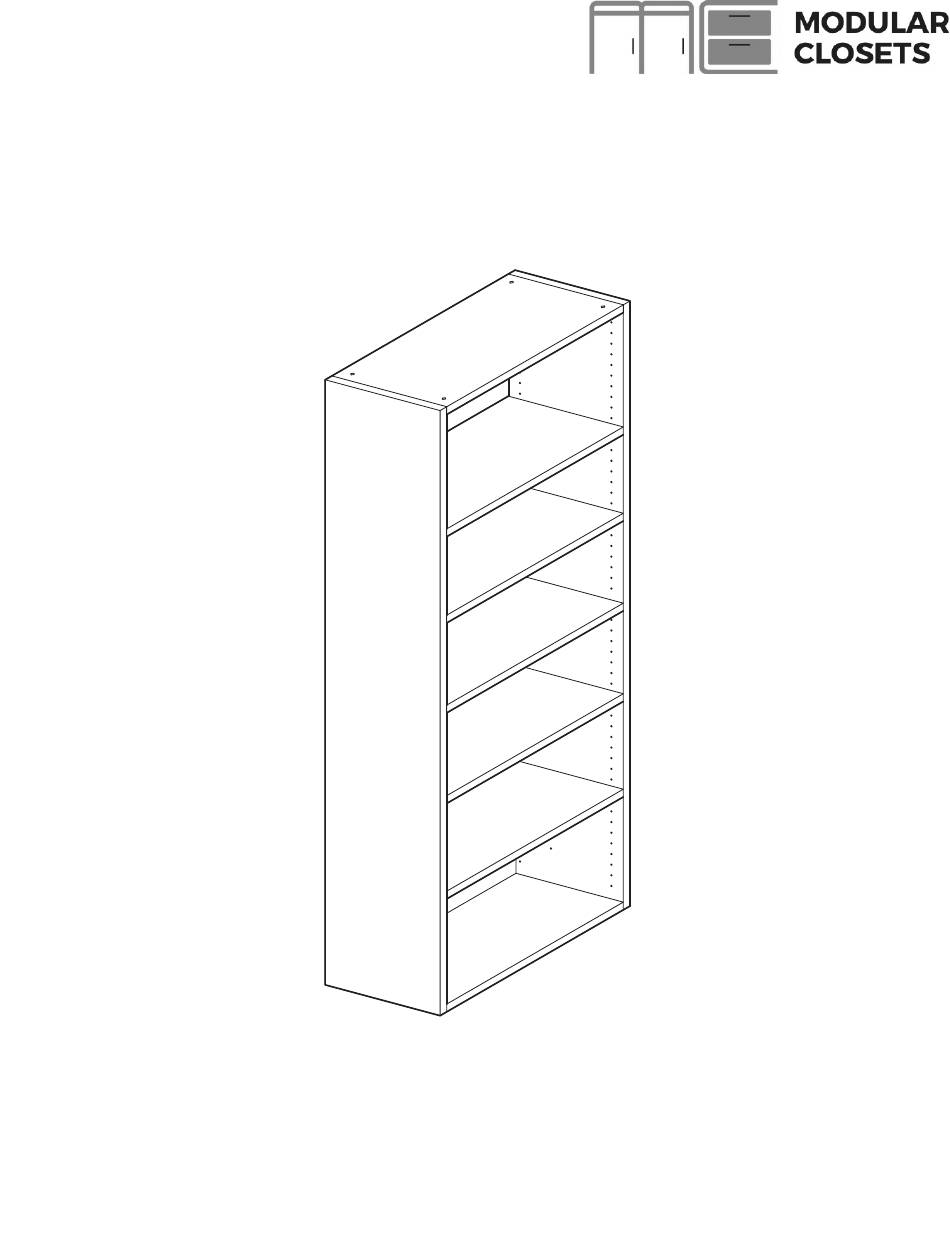

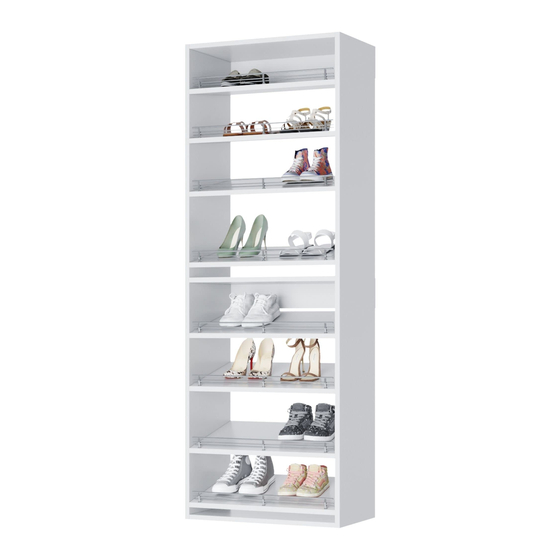

Page 1: Assembly And Installation
1-844-969-4247 support@modularclosets.com SHELF TOWER UNIT ASSEMBLY AND INSTALLATION INSTRUCTIONS... -
Page 2: Assembly And Installation Instructions
ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT PARTS LIST BOX 1 BOX 2 FINISHED EDGE FINISHED EDGE Rear Hanging Cleat (Qty 3) Set Shelf (Qty 3) Cam Post (Qty 18) Camlock (Qty 18) Screw, Square Drive, 2.5" (Qty 6) BOX 3... -
Page 3: Tools Required
ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT TOOLS REQUIRED (not included unless noted) Level Drill, 3/32" bit size Stud Finder Phillips Screwdriver Drill Bit, Square, #2 Lay parts out on a protective surface to prevent damage. Tip: Spread out the cardboard packaging to use as a protective surface. - Page 4 ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT 3.1 Assemble Set Shelves (D) and Rear Hanging Cleats (C) onto Right Side Panel (B) by sliding the Shelves and Cleats onto the Cam Posts (H) on Side Panel. BE SURE wood dowels in Shelves and Cleats engage drilled holes in Side Panel, and all parts are pressed flush against Side Panel.
- Page 5 ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT 4.1 Install Left Side Panel (A) onto assembled Set Shelves (D) and Rear Hanging Cleats (C). BE SURE Wood Dowels in Shelves and Cleats engage drilled holes in Side Panel, and Side Panel is pressed flush against...
- Page 6 ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT ARROW TOWARD CAM POST OPENING Insert Camlocks (I) in holes in Set Shelves (D) and Rear Hanging Cleats (C), with arrow pointing toward Cam Post opening. Be sure Camlocks engage Cam Posts, and are fully seated in Shelves and Cleats.
- Page 7 ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT FOR LEG EXTENSION KIT INSTALLATIONS ONLY Leg Extension Kit purchased separately) Insert four Wood Dowels (K) into holes in edges of Left Leg Extension (F) and Right Leg Extension (G). Install one Cam Post (H) each into Left Leg Extension (F) and Right Leg Extension (G).
-
Page 8: Installation
ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT WITH LEG WITHOUT LEG EXTENSION KIT EXTENSION KIT PILOT PILOT HOLES HOLES STUDS PILOT PILOT HOLES HOLES 12" FROM FLOOR INSTALLATION Determine the mounting location for the unit. The unit can be installed with or withou the optional Leg Extension Kit (purchased separately) as shown in step 6. - Page 9 ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT 8.1 Secure Rear Hanging Cleats (C) to studs using 2.5" Screws (L). Tighten Screws using Square Drill Bit (provided) and Drill.
- Page 10 ASSEMBLY AND INSTALLATION INSTRUCTIONS SHELF TOWER UNIT For each Adjustable Shelf (E), insert four Shelf Pins (J) into pin holes inside the Tower at the desired height. Rest Adjustable Shelves (E) on Shelf Pins (J).
