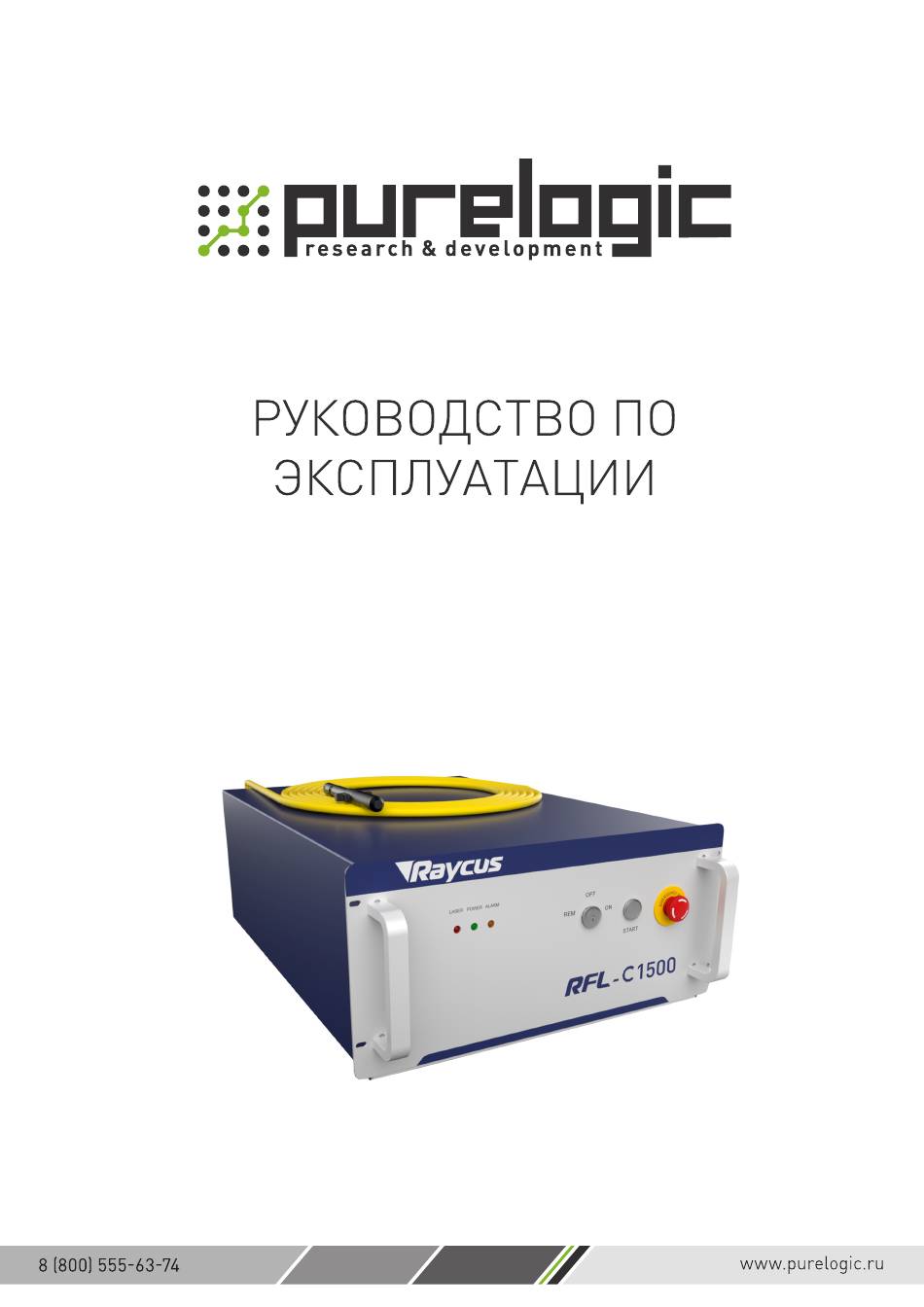

  • Page 1 Лазерный источник RAYCUS RFL-C1 500H...

  • Page 2: Table Of Contents

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser TABLE OF CONTENTS 1 Safety Information........................4 1.1 Security Identifiers.........................4 1.2 Laser Safety Grade........................ 1 1.3 Security Identifiers.........................5 1.4 Optical Safety........................6 1.5 Electrical Safety........................6 1.6 Other Safety Rules.........................7 2 Product Description........................7...
  • Page 3 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 4.7 Control mode selection......................30 4.7.1 Control mode wiring diagram..................30 4.7.2 Stand-alone mode (internal control mode) (connect 4.6 in sequence)......31 4.7.3 External control mode (sequentially connected to 4.6)..........32 4.7.4 AD Mode........................

  • Page 4: Safety Information

    User Guide of 1500W CW laser 1 Safety Information Thank you for choosing Raycus fiber laser. This User Guide provides important safety, operation, maintenance and other information. Please read it carefully before using this product. In order to ensure safe operation and optimal performance of the product, please follow the warnings, cautions, operating procedures and other instructions accordingly.

  • Page 5: Security Identifiers

    1.3 Security Identifiers Raycus CW Fiber Lasers have different locations of safety identifier depending on the model, as shown in Figure 1: Figure 1 Laser Security Identifiers Laser safety identifiers include: safety warning, laser output head warning, product certification, ID label, etc.

  • Page 6: Optical Safety

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 2: Type 4 Laser 3: Class 2M Laser Product 1: Laser Output Head Product Label-1mW Red Laser 4: CE Authentication 5: ID Label 6: Laser Radiation 7: Electrical...

  • Page 7: Other Safety Rules

    4）There are no user serviceable parts, equipment or assemblies inside the product. All service and maintenance shall be performed by Raycus. In order to prevent electric shock, please do not break the seal or uncover the shield. Failure to comply with this instruction will void the warranty.

  • Page 8: Model Description

     Laser research 2.2 Model description Raycus continuous wave laser includes 100, 200L, 200, 300L, 300, 500, 750, 1000 and other models, which respectively represent 100W, 170W, 200W, 250W, 300W, 500W, 750W, 1000W and 1500W lasers. The definitions of the model code...

  • Page 9: Package Accessories

    Please refer to package accessories in the packing box. 2.4 Unpacking and Inspections Raycus fiber laser is delivered with the specially designed package to offer the fiber laser maximal safety. Nevertheless, in order to prevent the occurrence of unpredictable circumstances during the transportation, please inspect all packaging once receiving the delivery.

  • Page 10: Operation Environment

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser excessive bend to the cable will damage the instrument. 2.5 Operation Environment The operation conditions are listed as the following table: Table 3: The Operation Environment Conditions for the Laser...

  • Page 11: Attentions

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 5） Do not look into the output head directly. Wear appropriate protective eye glasses all the time when operating the laser  Do not expose this product to high humidity (humidity>...

  • Page 12: Specifications

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 2.7 Specifications C1500 Model Test Conditions Optical Characteristics Nominal Output Power(W) C1500 Operation Mode CW/Modulated Polarization State Random Output Power Tunability(%) 10~100 Emission Wavelength(nm) Nominal Output Power 1080±5...

  • Page 13: Installation

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 3 Installation 3.1 Dimensions 3.1.1 Overall dimensions of RFL-C1500 cutting laser The front and rear panel sizes of the small volume 1500W continuous laser are same as the RFL-C1000 laser, as show in Figure 2.

  • Page 14: Size And Installation Of Output Optical Cable

    Raycus continuous wave fiber laser uses different laser output cables according to different laser models. 3.2.1 RFL-C1500 Output Optical Cable The output cables of Raycus RFL-C1500 cutting fiber lasers are self-made IQB output cables. The specific appearance dimensions are shown in Figure 4 below:...

  • Page 15: Cooling System Installation And Requirements

    If the lens is dirty, it must be cleaned.  It is forbidden to disassemble the output lens by anyone other than Raycus, otherwise the warranty will be invalid. 3.3 Cooling system installation and requirements Table 6 Cooling System Requirements...
  • Page 16 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 1) Temperature setting of cooling water:  25±1℃（does not need to change in summer） 2) Requirements on Cooling Water:  Purified water should be used.  In order to prevent the growth of mold that may lead to blockage, adding alcohol solution to about 10% of the total volume is recommended.

  • Page 17: Installation Rules

    5) Please check the laser output head and do the necessary cleaning before installing it in the device. If you find that there is dust or foreign objects that cannot be cleaned, please contact Raycus in time, and do not continue installation and operation for the time being.
  • Page 18 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 7) Please handle the laser output cable carefully, and do not receive vibration during the installation and disassemble. 8) Make sure the environment is clean, or the output head may be contaminated.

  • Page 19: Using The Product

    After the laser is powered on, there is no display on the super terminal. Please log in to the official website of Raycus to download the new version of the upper computer software and upper computer software instruction manual.
  • Page 20 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser Figure 6 RFL-C1500 laser real panel 1. Alarm：Laser fault indicator 2. Laser：Laser output indicator 3. Power： Power Indicator, indicates that the power is switched on when the LED illumines.

  • Page 21: Power Connection

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 4.3 Power Connection  Before connecting the AC power supply, please check whether the laser model and the AC power supply provided are consistent with those listed in Table 3 or table 5.
  • Page 22 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser Figure 7 DB25 control interface The pin definitions of DB25 are as follows: Table 8 Control interface definition Input Electric NAME Function Typical current output Reserve interlock...
  • Page 23 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser Return MOD- 15 pin return port Digital Red Laser Red light control 5-24V <10mA input Digital Laser EN Laser enable 5-24V <10mA input Digital Ready Laser ready EVCC <100mA...
  • Page 24 A three-core (RxD, TxD, GND) interface is used. For specific commands and descriptions, please refer to the software manual of the host computer or ask a Raycus technician for a communication protocol. The specific parameter settings of the RS-232 control interface are as follows:...

  • Page 25: Rs-232 Serial Port

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser Figure 9 RS-232 serial cable 4.4.3 Ethernet TCP / IP interface and connection steps The default IP address of the laser is 192.168.0.10 and the laser only supports UDP communication.
  • Page 26 IP address of the laser; if you do not use the upper computer of Raycus, please directly enter the fourth step;...
  • Page 27 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser...

  • Page 28: Installation Instruction

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser Figure 10 Ethernet connection steps 4.5 Installation Instruction 1) Take out the laser carefully, move it to the installation position, remove the handle, and use the handle to install the hole position to fix it with screws.

  • Page 29: Start Operation Sequence

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser After installing and arranging the output optical cable, remove the protective cap, and check whether the output lens is clean again, and then install the output head;...

  • Page 30: Control Mode Selection

    Figure 11 Wiring diagram in RS-232 mode Note: In the above mode, the upper computer of Raycus should be used to modify the mode: turn off the external red light control, external light out enable and external AD, and only keep the modulation mode.

  • Page 31: Stand-Alone Mode (Internal Control Mode) (Connect 4.6 In Sequence)

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser RS232 or Ethernet Connector External red laser control External enable Control card AC input/ regulator Figure 12 Wiring diagram in AD mode 4.7.2 Stand-alone mode (internal control mode) (connect 4.6 in sequence) 1) Turn on the rocker switch, and the panel "power"...

  • Page 32: External Control Mode (Sequentially Connected To 4.6)

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 6) The serial port or the Ethernet interface sends a shutter opening command to output the laser, and sends a shutter closing command to turn off the laser.

  • Page 33: Ad Mode

    The laser power is controlled by the voltage between pin12-14 of DB25 control interface (0v-0% power, 10v-100% power). If the upper computer selects external AD mode off, the laser power is set by serial port or Ethernet, and the Raycus hand-heldwelding laser will enter external ad mode by default when powered on.

  • Page 34: Controlling Time-Series Chart

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser 4.7.5 Controlling time-series chart Figure 13 Standalone mode—Continuous sequence diagram Figure 14 Standalone mode – Pluse sequence diagram...

  • Page 35: Red Light Control

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser Figure 15 Modulation—sequence diagram Figure 16 Gate mode –sequence diagram 4.7.6 Red Light Control Turn on the rocker switch, the green "POWER" indicator light is on, wait for 20s, the laser enters the red-light external control mode, and a high level of 5-24V is given before the 17-20 pin.

  • Page 36: Turning Off The Laser

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser  Laser indicator light output simultaneously Turning off the laser: Please turn off the laser in the following sequence 1) Turn off the laser output enable 2) Turn off the rocker switch...

  • Page 37: Common Alarms And Solutions

    5.1 Alarm display Connect the computer and open the PC software (download the PC software and its instruction manual, please log on the Raycus official website), after the laser and client software establish normal communication. All laser alarm states can be displayed on the client software interface, as shown in Figure 17. The laser will give an alarm in the case of abnormal internal temperature, abnormal output power, abnormal power supply, abnormal condensation, etc.
  • Page 38 Internal clock abnormal System Timer Alarm Solutions: When this alarm occurs, please contact Raycus directly Instruction: This alarm occurs when the light exit button on the front panel of the laser has been pressed before powering on Laser On Button...
  • Page 39 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1500W CW laser Instruction: The laser will get this alarm when it can not detect any laser light signal. Laser out alarm occurs only when the laser is emitting light...
  • Page 40 When the water cooling system works normally and the water temperature drops below 30°C, restart the laser. If the alarm continues, please contact Raycus. Low temperature alarm. Check whether the actual water temperature of the water is too low.

  • Page 41: Warranty, Return And Maintenance

    The warranties start on the date of shipment from Raycus for a period of time as set forth in the applicable purchase contracts or product specifications. Raycus has the right to choose to repair or replace any product that proves to be defective in materials and workmanship selectively during the warranty period.

  • Page 42: Service And Repair

    All service and maintenance shall be performed by qualified Raycus personnel.  Please contact Raycus as soon as possible when problems under warranty about maintenance happened to the product.  The product returned with permission should be placed in a suitable container.
  • Page 43 8 (800) 555-63-74 бесплатные звонки по РФ +7 (473) 204-51-56 Воронеж +7 (495) 505-63-74 Москва www.purelogic.ru info@purelogic.ru 394033, Россия, г. Воронеж, Ленинский пр-т, 160, офис 149 Вс Пн Вт Ср Чт Пт Сб выходной...
