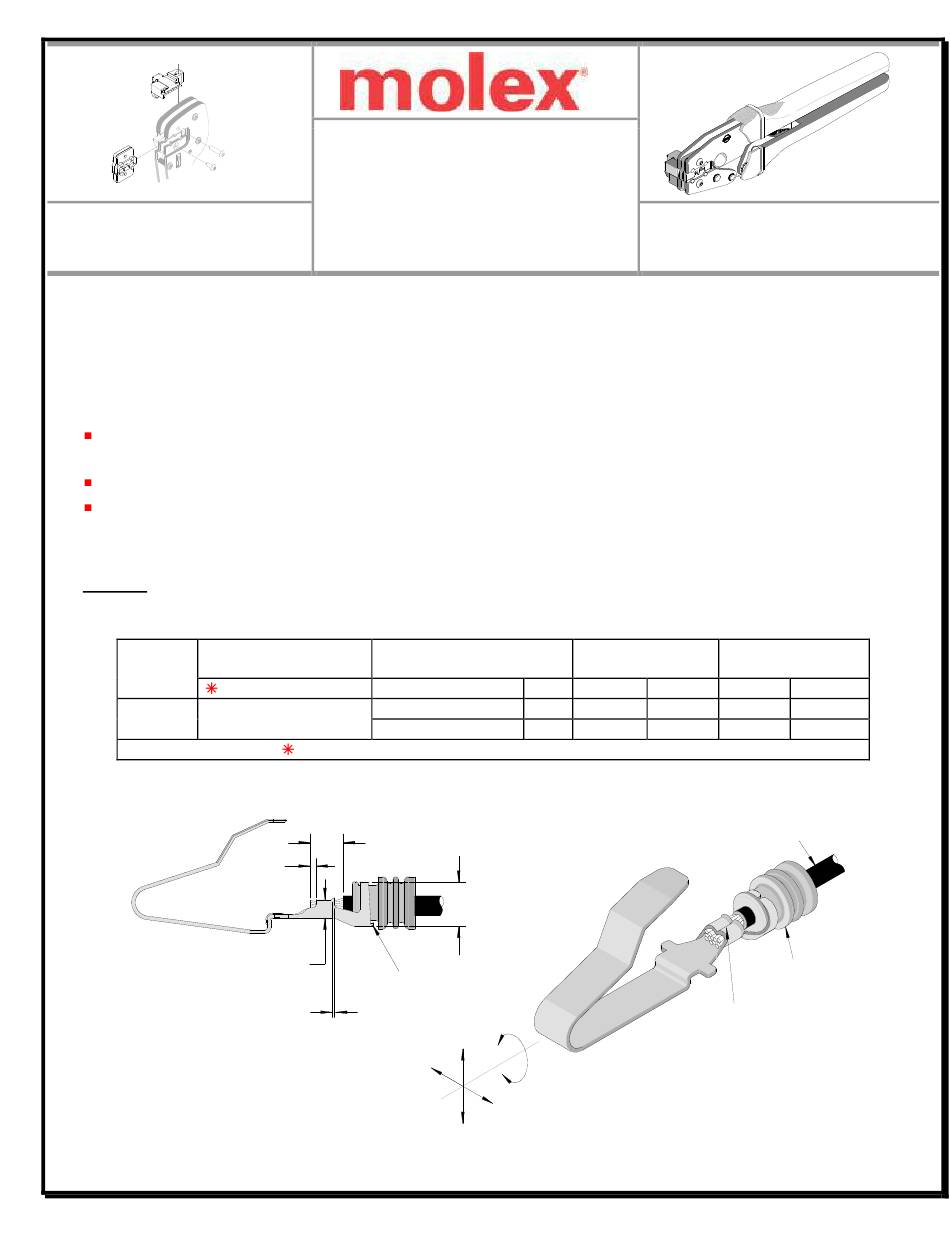

Tool Kit for Bulb Socket Positive Crimp Terminals
Tool Kit
Order No. 63819-5070
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: Bulb Socket Positive Terminal for 0.5 to 0.85mm² and 20 to 18 AWG wire with
Wire Seal No. 35903-0096.`
Terminal Order No.
Terminal
Series No.
Available in Reel Only mm² (AVS and AVSS) AWG
35464
DEFINITION OF TERMS
BRUSH
CONDUCTOR
CRIMP HEIGHT
BELL MOUTH
Doc No: ATS-6381950HM Release Date: 06-03-09
Revision: B
Application Tooling
Specification Sheet
Wire Size and type
0.5 to 0.85
35464-8000
Customer to cut off terminal from reel: 0.5mm (.020") maximum Cut-off Tab.
STRIP LENGTH
CUT-OFF TAB
BEND UP
TWISTING
BEND DOWN
Revision Date: 10-06-10
Insulation
Diameter
mm
---
1.60–2.30 .063-.090 4.80-5.20 .188 - .205
---
20-18 1.60–2.30 .063-.090 4.80-5.20 .188 - .205
INSULATION
CRIMP HEIGHT
ROLLING
UNCONTROLLED COPY
TYPE 2C
Hand Crimp Tool
Order No. 63819-5000
Strip Length
In.
mm
In.
WIRE
WIRE SEAL
SEAM
Page 1 of 9
