Tree Frogs 6.4 Mega Deck Fort Install Manual page 63

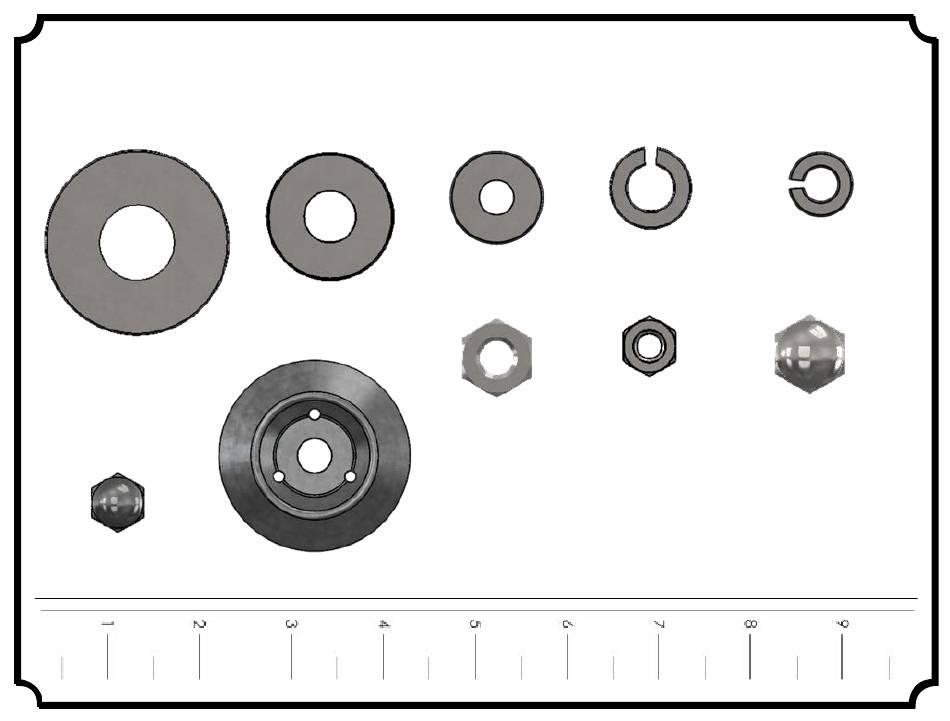

Universal sB Hardware Bag
insTaller nOTe: (YOU MUsT asseMBle THis PrOdUCT in aCCOrdanCe wiTH THese asseMBlY insTrUCTiOns. wHen COMPleTe
give ManUal TO Owner.)
#usb-5
#usb-3 #usb-4 #usb-6 #usb-7
40-1-00084 40-1-00083 40-1-00082 40-1-00074 40-1-00073
3/8" uss flatwasher
3/4" uss flatwasher 1/2" uss flatwasher 1/2" split lockwasher 3/8" split lockwasher
QtY. 51
QtY. 22 QtY. 22 QtY. 22 QtY. 4
#usb-8 #usb-9 #usb-10
40-1-00028 40-1-00026 40-1-00002
1/2" hex nut 3/8" hex nut 1/2" acorn nut
#usb-12
QtY. 9 QtY. 2 QtY. 9
41-1-00025
3/8" bolt Cup
QtY. 2
#usb-11
40-1-00001
3/8" acorn nut
QtY. 2
MeasureMent taken froM bottoM of bolt head to the bottoM of bolt
USE THE RULER TO MEASURE YOUR BOLTS AND SCREWS. HARDWARE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH HARDWARE SIZES.
