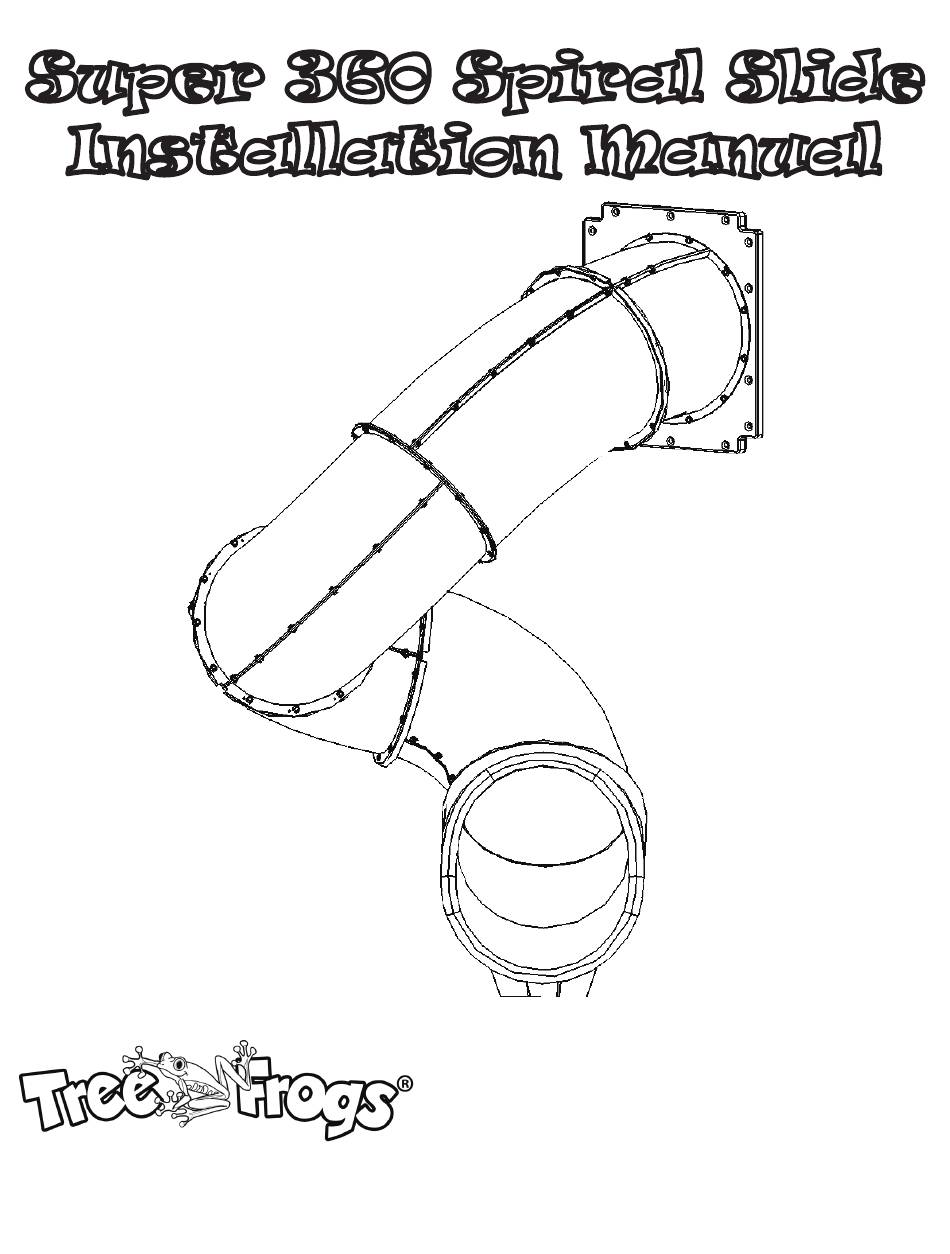

Super 360 Spiral Slide
Installation Manual
4465 West Sam Houston Parkway N.
Houston, Texas 77041
WWW.TREEFROGSSHOWROOMS.COM
© 2019 KID STRUCTURES INC.
Version 1:19
Sections
Page 1: Part List
Page 2: 5.8' Deck Height Assembly
Page 3: 5' & 7' Deck Height Assembly
Page 4: 6.5' Deck Height Assembly
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tree Frogs Super 360 Spiral Slide
Summary of Contents for Tree Frogs Super 360 Spiral Slide
- Page 1 Super 360 Spiral Slide Installation Manual Version 1:19 Sections Page 1: Part List Page 2: 5.8’ Deck Height Assembly Page 3: 5’ & 7’ Deck Height Assembly 4465 West Sam Houston Parkway N. Houston, Texas 77041 Page 4: 6.5’ Deck Height Assembly WWW.TREEFROGSSHOWROOMS.COM...
- Page 2 PARTS 3/8” x 5” 5/16” x 1 1/2” Lag Screw Lag Screw QTY. 2 QTY. 26 5/16” x 1” Hex Bolt QTY. 99 5/16”-18 Lock Nut QTY. 97 5/16” Flatwasher QTY. 222 3/8” Flatwasher QTY. 2...
- Page 3 Quick Reference Guide #1 For 5.8’ Deck Height 1) Turn 10° 1 Bolt Hole CCW 2) Turn 30° 1 Bolt Hole CCW 3) Turn 90° Elbow 0 Bolt Hole to even seam 4) Turn 90° Elbow 2 Bolt Holes CW 5) Turn 90°...
- Page 4 Quick Reference Guide #2 For 5’ & 7’ Deck Heights 1) Turn 10° 1 Bolt Hole CW 2) Turn 30° 0 Bolt Hole With Even Seem 3) Turn 90° 1 Bolt Hole CW 5) Turn 90° Elbow 2 Bolt Holes CW 4) Turn 90°...
- Page 5 Quick Reference Guide #3 For 6.5’ Deck Height 1) Turn 10° 1 Bolt Hole CCW 2) Turn 30° 2 Bolt Hole CW 3) Turn 90° Elbow 1 Bolt Hole CW 4) Turn 90° Elbow 2 Bolt Holes CCW 5) Turn 90° Elbow 2 Bolt Holes 6) Attach Exit Chute Level To Ground...
- Page 6 Step #1 Assemble the Elbow Section Halves together with the hardware as shown. Note the position of the Overlap Flanges in relation to the direction of the Bolts. 90 Section RH Lock Nut Washer Overlap Flanges 90 Section LH Bolt Washer...
- Page 7 Step #2 Using Nuts, Washers and Bolts, attach the 10 Elbow to Entry Panel in the "Quick Reference" orientation. Step #3 After properly blocking the slide entrance on the playset, attach the Entry Chute/first Elbow assembly to the playset with the Lag Screws and Washers provided. Step #4 Bolt Washer...
- Page 8 Step #5 Using Nuts, Washers and Bolts, attach the 90 Elbow to the previous Elbow in the "Quick Reference" orientation. Step #6 Using Nuts, Washers and Bolts, attach the 2nd 90 Elbow to the previous Elbow in the "Quick Reference" orientation.
- Page 9 Step #8 Place the end of the Exit Chute up against the last Elbow Section and make it level with the ground. If any of the last Elbow bolt holes line up with the Exit Chute attach with Bolts and Washers (possibly 2 Places). For all the holes that don't line up attach with Lag Screws and Washers.
