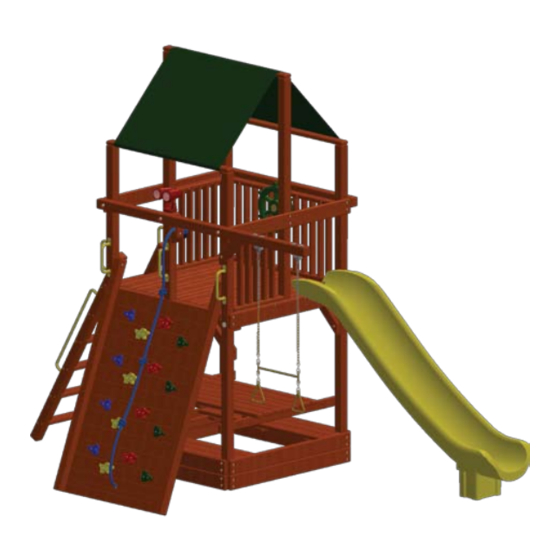

Tree Frogs 5.4 Bengal Fort Install Manual
  1. Manuals
  2. Brands
  3. Tree Frogs Manuals
  4. Play Sets & Playground Equipment
  5. 5.4 Bengal Fort
  6. Install manual

Tree Frogs 5.4 Bengal Fort Install Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Tape Measure
Phillips Screw Driver
Claw Hammeror Rubber Mallet
9/16" Deep Well Socket
Phillips Head Screw Bits
Please familiarize yourself with the install manual, parts/components and general construction process of your new swing set before
getting started. Approximate assembly time: 6 to 8 hours. 6 foot unobstructed safety perimeter around swing set recommended.
Houston, tX 77041 • www.treefrogsswingsets.com • © 2013 kiD structures inc.
5.4 Bengal Fort
2014 Install Manual
Tools Needed for Assembly
24" Level
3/8" Cordless Drill or Electric Drill
Pliers or Vise Grips
3/4" Deep Well Socket
An Adult with two Adult Helpers
Version 1.14
Angle Square
3/8" Drive Ratchet or Electric Impact Gun
7/16" Deep Well Socket
1/8", 1/4", and 9/16" Drill Bits

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5.4 Bengal Fort and is the answer not in the manual?

Questions and answers

Samuel
June 1, 2025

Do yall send a paper manual with the playset

0

Subscribe to Our Youtube Channel

Related Manuals for Tree Frogs 5.4 Bengal Fort

Summary of Contents for Tree Frogs 5.4 Bengal Fort

  • Page 1 5.4 Bengal Fort 2014 Install Manual Version 1.14 Tools Needed for Assembly Tape Measure 24” Level Angle Square Phillips Screw Driver 3/8” Cordless Drill or Electric Drill 3/8” Drive Ratchet or Electric Impact Gun Claw Hammeror Rubber Mallet Pliers or Vise Grips 7/16”...
  • Page 2 ● Be sure that the sealant you select is non-toxic and child safe. Your local tree frogs wooden swing set factory dealer may offer a complete power wash and reseal and maintenance program.
  • Page 3 Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 4 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 5 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.

  • Page 6: Table Of Contents

    13-4-00077 uniVersAL 8-HoLe fAciA 16-4-00214 UNIVERSAL FORT CENTER UPRIGHT 13-4-00068 UNIVERSAL 6 HOLE FACIA 12-4-00141 UNIVERSAL RAIL BOTTOM 5.4 Bengal Fort Bundle A. 13-4-00076 UNIVERSAL 4 HOLE FACIA 16-4-00291 116” FORT CORNER POST 16-4-00294 86” FORT (L) LADDER LEG 16-4-00295 86”...

  • Page 7: Part Description Qty

    5.4 Bengal Fort Rockwall Bundle Item No. Part Number Part Description QTY. 16-4-00304 85 1/2” FORT (R) RW LADDER LEG 16-4-00303 85 1/2” FORT (L) RW LADDER LEG 11-4-00138 UNI. FORT RW BOARD W/ ROPE HOLE 11-4-00139 uni. fort rw BoArD BLAnk 11-4-00140 UNI.

  • Page 8: Part Description Qty

    Fort Rockwall Box Multi- Color Item No. Part Number Part Description QTY. 36-1-00023 LArge rock muLti-coLor 65-7-00017 14’ YELLOW ROPE Fort Rockwall Box Green Item No. Part Number Part Description QTY. 36-1-00024 LArge rock green 65-7-00017 14’ YELLOW ROPE 5.4 BENGAL STANDARD HARDWARE 40-1-00084 3/4”...
  • Page 9 Tarp Item No. Part Number Part Description QTY. 61-7-00130 TARP SNAP HARDWARE Bengal Fort Wood Roof Hdwr. Bag 40-1-00083 1/2” USS FLATWASHER 40-1-00082 3/8” USS FLATWASHER 40-1-00081 1/4” USS FLATWASHER 40-1-00073 3/8” sPLit LockwAsHer 40-1-00026 3/8” HEx NUT 40-1-00001 3/8” ACORN NUT 40-1-00115 3/8”...
  • Page 10 Bengal Fort Universal Bundle Lumber 13-4-00076 17-4-00157 16-4-00285 16-4-00283 Universal 4 Hole Facia ” Universal Fort Main Beam” Universal Fort Top Joist SB Universal Fort Trapeze Arm” QTY. 7 QTY. 2 QTY. 1 QTY. 1 16-4-00216 16-4-00217 13-4-00077 16-4-00214 Universal Fort Center Upright” (L) Gusset Bracket ”...
  • Page 11 5.4 Bengal Fort Bundle A. 16-4-00291 16-4-00294 16-4-00295 13-4-00076 116” Fort Corner Post 86” Fort (L) Ladder Leg 86” Fort (R) Ladder Leg Universal 4 Hole Facia ” QTY. 4 QTY. 1 QTY. 1 QTY. 2 13-4-00079 Fort Ladder Steps QTY.

  • Page 12: Universal Deck

    Universal Deck Bundle #16-1 #16-2 12-4-00139 13-4-00064 Small Deck Board Large Deck Board QTY. 8 QTY. 6 #16-3 #16-4 12-4-00138 13-4-00063 Deck Runner Deck Support QTY. 4 QTY. 2 Bengal Fort Tarp Bundle Lumber 16-4-00284 12-4-00145 Universal Fort Center Post Universal Tarp Board QTY.
  • Page 13 Bengal Fort Wood Roof Bundle Cont. 12-4-00206 12-4-00207 10-4-00331 19-4-00084 Wood Roof Support (R) Wood Roof Support (L) Wood Roof Center Support Wood Roof Board QTY. 2 QTY. 2 QTY. 2 QTY. 20 10-4-00332 10-4-00333 Fort Fan Board #1 Fort Fan Board #2 QTY.
  • Page 14 5.4 Bengal Fort Rockwall Lumber 16-4-00304 16-4-00303 11-4-00138 11-4-00139 85 1/2” Fort (R) RW Leg 85 1/2” Fort (L) RW Leg Uni. Fort RW Blank Uni. Fort RW Board w/ Rope Hole QTY. 1 QTY. 1 QTY. 1 QTY. 4...
  • Page 15 5.4 Bengal/ Megadeck Standard Box 59-1-00013 57-2-00005 57-2-00004 Tree Frogs Plaque 1 1/4” Play Grip Safety Handles 1 1/4” Play Grip Ladder Handles QTY. 5 QTY. 1 QTY. 2 56-1-00012 59-1-00011 58-1-00013 Fort Ladder Bracket Ductile Iron hangers Spring Clips 10 x 100mm QTY.
  • Page 16 Tarp (Color Varies With Order) 61-8-00053 61-8-00052 61-8-00051 Fort 53” x 92” Vinyl Tarp- BYB Fort 53” x 92” Vinyl Tarp-RYR Fort 53” x 92” Vinyl Tarp- Green QTY. 1 QTY. 1 QTY. 1 Fort Rockwall Box ( Rock color determined with box) #53 &...
  • Page 17 5.4 Bengal Standard Hdwr. InStaller nOte: (YOU MUSt aSSeMBle tHIS PrOdUCt In aCCOrdanCe wItH tHeSe aSSeMBlY InStrUCtIOnS. wHen COMPlete gIVe ManUal tO Owner.) 40-1-00084 40-1-00083 40-1-00082 40-1-00081 40-1-00073 3/4” uss flatwasher 1/2” uss flatwasher 3/8” uss flatwasher 1/4” uss flatwasher 3/8”...
  • Page 18 5.4 Bengal Standard Hdwr. InStaller nOte: (YOU MUSt aSSeMBle tHIS PrOdUCt In aCCOrdanCe wItH tHeSe aSSeMBlY InStrUCtIOnS. wHen COMPlete gIVe ManUal tO Owner.) 40-1-00013 1/2” x 7” Carriage bolt QtY. 12 40-1-00043 40-1-00054 3/8” x 5” hex bolt 1/4” x 2” lag bolt QtY.
  • Page 19 5.4 Bengal Standard Hdwr. InStaller nOte: (YOU MUSt aSSeMBle tHIS PrOdUCt In aCCOrdanCe wItH tHeSe aSSeMBlY InStrUCtIOnS. wHen COMPlete gIVe ManUal tO Owner.) 40-1-00069 40-1-00070 #14 x 1 1/4” Pan Phillips t/s #14 x 2” Pan Phillips QtY. 2 QtY. 17 boX a&...
  • Page 20 5.4 Bengal wOOd rOOF Hdwr. InStaller nOte: (YOU MUSt aSSeMBle tHIS PrOdUCt In aCCOrdanCe wItH tHeSe aSSeMBlY InStrUCtIOnS. wHen COMPlete gIVe ManUal tO Owner.) 40-1-00083 40-1-00082 40-1-00073 40-1-00082 40-1-00001 40-1-00081 1/2” uss flatwasher 3/8” uss flatwasher 3/8” split lockwasher 3/8” hex nut 3/8”...
  • Page 21 5.4 Bengal rOCkwall Hdwr. InStaller nOte: (YOU MUSt aSSeMBle tHIS PrOdUCt In aCCOrdanCe wItH tHeSe aSSeMBlY InStrUCtIOnS. wHen COMPlete gIVe ManUal tO Owner.) 40-1-00061 3/8” x 5” lag bolt QtY. 8 40-1-00022 40-1-00067 40-1-00077 2 1/2” Coated deck screw 1/4” x 1 1/2” Pan Phillips M/s 1/4”...
  • Page 22 Blank Side Wall partS needed HardWare needed 12- 116” Fort Corner Post- #56- 3/4” USS Flatwasher- #2- Universal Fort Main Beam- #57- 1/2” USS Flatwasher- #3- Universal Fort Top Joist SB- #58- 3/8” USS Flatwasher- #5- (L) Gusset Bracket- #61- 1/2” Split Lockwasher- #6- (R) Gusset Bracket- #62- 1/2”...

  • Page 23: Universal 4 Hole Facia

    Blank Side Wall partS needed HardWare needed #1- Universal 4 Hole Facia- #58- 3/8” USS Flatwasher- (12) #70- 3/8” x 3 1/2” Lag Bolt- (12) Space of 8 1/2”...

  • Page 24: Universal Fort Main Beam

    trapeze Side Wall partS needed HardWare needed 12- 116” Fort Corner Post- #56- 3/4” USS Flatwasher- #57- 1/2” USS Flatwasher- #2- Universal Fort Main Beam- #58- 3/8” USS Flatwasher- (16) #61- 1/2” Split Lockwasher- #4- Universal Fort Trapeze Arm- #62- 1/2” Hex Nut- #65- 1/2”...
  • Page 25 ladder & rail aSSemBly partS needed HardWare needed #13- 86” Fort (L) Ladder Leg- #37- Universal Rail Top- (1) #71- 1/4” x 4 1/2” Lag Bolt- (24) #14- 86” Fort (R) Ladder Leg- #38- Rail Bottom- #59- 1/4” Uss Flatwasher- (24) #15- Universal Fort Ladder Steps- (6) #39- Rail Spindle-...
  • Page 26 Bengal Fort rockWall partS needed HardWare needed #29- 85 1/2” Fort (R) RW Ladder Leg- #89- 1/4” x 1 1/2” Pan Phillips M/S- (32) #30- 85 1/2” Fort (L) RW Ladder Leg- #90- 1/4” x 7/16” 4 Prong TNut- (32) #31- Uni.
  • Page 27 deck aSSemBly partS needed HardWare needed 16-1- Small Deck Board- 16-5- 2 1/2” Coated Deck Screw- (56) 16-2- Large Deck Board- 16-3- Deck Runner- 16-4- Deck Support- 24 1/4” Gap 12 1/4” Gap 3 1/2” Gap 3 1/2” Gap 16-5 16-5 16-2 16-3...
  • Page 28 main aSSemBly partS needed HardWare needed Blank Side Wall- #58- 3/8” USS Flatwasher- (16) Trapeze Side Wall- #70- 3/8” x 3 1/2” Lag Bolts- (16) #1 or #11- Universal 4 Hole Facia- (4) #71- 1/4” x 4 1/2” Lag Bolts- #16- Universal Deck- #59- 1/4”...

  • Page 29: Universal 6 Hole Facia

    main aSSemBly partS needed HardWare needed #7- Universal 8- Hole Facia- #71- 1/4” x 4 1/2” Lag Bolts- #9- Universal 6 Hole Facia- #70- 3/8” x 3 1/2” Lag Bolts- (16) #58- 3/8” USS Flatwasher- (16) #59- 1/4” USS Flatwasher-...

  • Page 30: Universal Fort Center Post

    tarp & Wood rooF aSSemBly partS needed HardWare needed #17- Universal Fort Center Post- #58- 3/8” USS Flatwasher- #28- Wood Roof Center Post- #70- 3/8” x 3 1/2” Lag Bolt- #69- 3/8” x 5” Lag Bolt- Step used for Tarp Center Uprights or Wood Roof Center Posts...
  • Page 31 rail inStall partS needed HardWare needed Rail Assembly- (Count varies with package) #76- 1/4” x 2” Lag Bolt- #74- 1/4” x 4 1/2” Lag Bolt- #62- 1/4” USS Flatwasher- (16) Rail Assembly...
  • Page 32 main aSSemBly partS needed HardWare needed Ladder- #58- 3/8” USS Flatwasher- Rockwall- #69- 3/8” x 5” Lag Bolts- #36- Universal Entrapment Block- (2) #70- 3/8” x 3 1/2” Lag Bolts- #42- Fort Ladder Bracket- Ladder...
  • Page 33 main aSSemBly partS needed HardWare needed Fort Rockwall- #93- 3/8” x 5” Lag Bolt- #35- Universal Rope Block- #97- 3/8” USS Flatwasher- Rockwall Assembly...
  • Page 34 main aSSemBly partS needed HardWare needed #5 or #6- Gusset Bracket- #74- #14 x 2” Pan Phillips- (10) #38- 1 1/4” Playgrip Safety Handles- #65- 3/8” x 3 1/2” Lag Bolt- #71- 3/8” USS Flatwasher- 5” From bottom of facia to top of safety handle #5 or6...
  • Page 35 main aSSemBly partS needed HardWare needed Slide- #78- #14 x 2” Pan Phillips- #39- 1 1/4” Play Grip ladder handles- 11” From top of ladder to top of safety handle...
  • Page 36 main aSSemBly partS needed #43 or 46- 19” Ship’s Wheel w/ hardware- (1) #44 or 47- Telescope w/ hardware-...
  • Page 37 main aSSemBly partS needed #45 or #48- 20” Trapeze w/ 43” Chain- #53 or #55- 14’ Yellow Rope- String the rope through # 31 on the Rockwall tie a knot every 2 to 3 ft. until you can string through #35 and tie a knot.
  • Page 38 tarp aSSemBly partS needed HardWare needed #18- Universal Tarp Board- #71- 1/4” x 4 1/2” Lag Bolts- #59- 1/4” USS Flatwasher-...
  • Page 39 tarp aSSemBly partS needed HardWare needed #49, #50, or #51- 53” x 92” Vinyl Tarp- #80- Tarp Snap Hardware- Figure A. Figure C. Figure B. Figure A.- Take one corner of the VINYL TARP and Figure C. - Take the corner of the VINYL TARP and place it flush in the corner.
  • Page 40 Wood rooF aSSemBly partS needed HardWare needed #23- Fort Fan Board #1- #92- 1 5/8” Coated Deck Screw- (12) #88- 3/8” Hex Nut- #24- Fort Fan Board #2- #90- 3/8” x 5 1/2” Carriage Bolt- #89- 3/8” Acorn Nut- #25- Fort Fan Board #3- #84- 1/2”...
  • Page 41 Wood rooF aSSemBly HardWare needed #92- 1 5/8” Coated Deck Screw- (10) Wood Roof Fan...
  • Page 42 Wood rooF aSSemBly partS needed HardWare needed #22- Wood Roof Board- (20) #92- 1 5/8” Coated Deck Screw- (100) #21- Wood Roof Center Support- Place #22’s from the center of fort to the edge. So as not to get blocked in. Front View of Assembly 1 1/2”...

  • Page 43: Wood Roof Peak Facia

    Wood rooF aSSemBly partS needed HardWare needed #27- Wood Roof Peak Facia- #92- 1 5/8” Coated Deck Screw- (6) View of Completed Roof Assembly...
