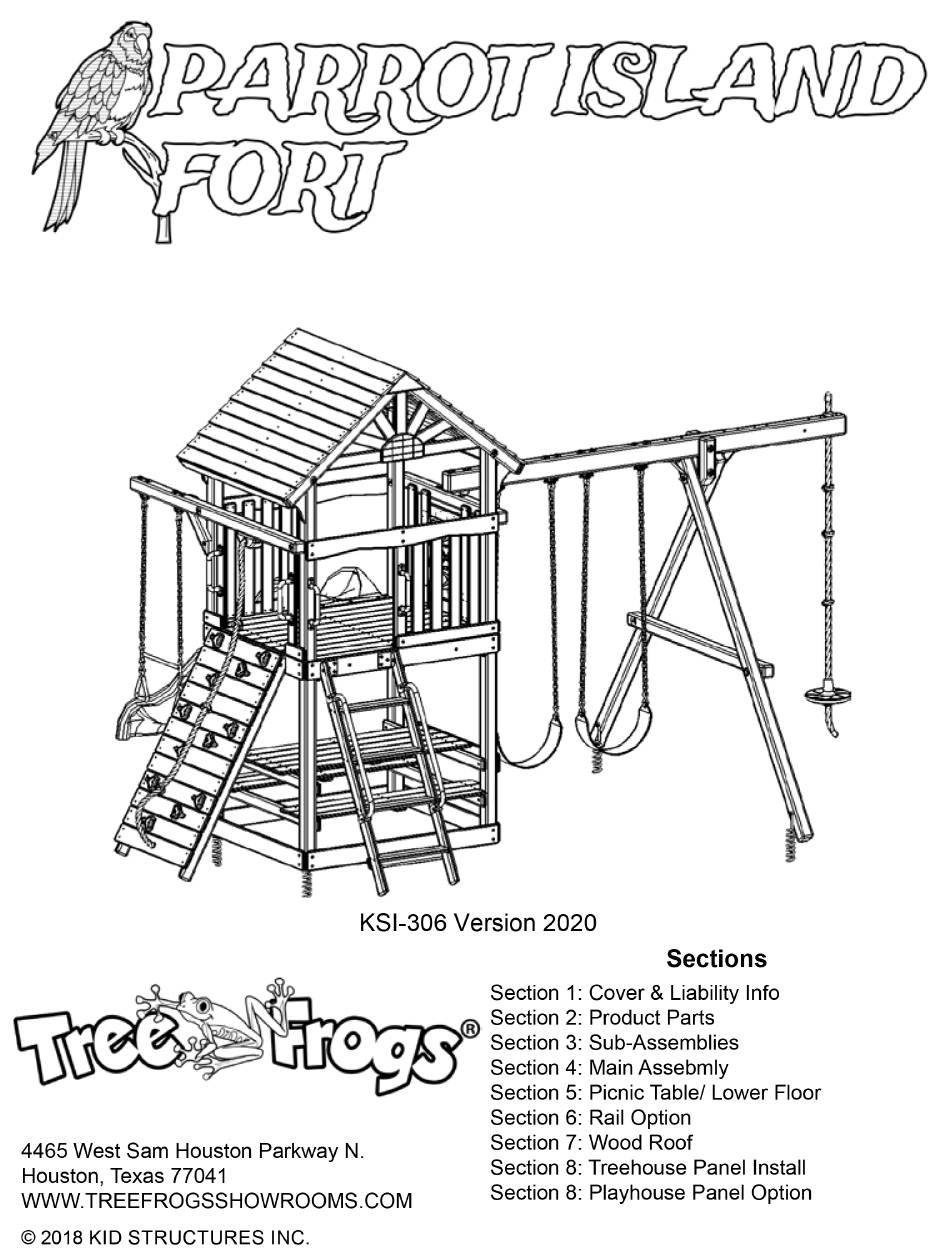

Tree Frogs Parrot Island Fort KSI-306 Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parrot Island Fort KSI-306 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tree Frogs Parrot Island Fort KSI-306

Summary of Contents for Tree Frogs Parrot Island Fort KSI-306

  • Page 2 Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 3 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 4 ● Be sure that the sealant you select is non-toxic and child safe. Your local Tree Frogs Wooden Swing Set Factory dealer may offer a complete power wash and reseal and maintenance program.
  • Page 5 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set. and/or injury to the users.
  • Page 6 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 7 And for a period of 1-Year Tree Frogs warranties all ropes, structural foam molded slides to be free of defects in material and workmanship. Fading is not considered a defect and may occur with seasonal and geographical conditions.

  • Page 8: Qty

    KSI-306 5.0 Parrot Island Fort Lumber Description QTY. (CC-007) 306-1 9” Small Corner Facia (CC-010) 306-2 13” Picnic Seat Support (Green) (CC-250) 306-3 13 1/2” Fan Board #2 (CC-017) 306-4 22” Tic Tac Toe Board (Green) (CC-251) 306-5 18” Fan Board #1 (Green) (CC-252) 306-6...
  • Page 9 KSI-306 5.0 Parrot Island Fort Lumber Description QTY. (CC-024) 306-8 31 13/16” Corner Facia (CC-026) 306-9 32” Spindle (CC-253) 306-10 51 1/8” SB Rail Facia (CC-034) 306-11 51 1/8” Deck Support (CC-035) 306-12 53 1/2” End Deck Board (CC-254) 306-13 53 7/8”...

  • Page 10: Qty

    KSI-306 5.0 Parrot Island Fort Lumber Description QTY. (CC-045) 306-15 60 1/4” Deck & Picnic Board (CC-256) 306-16 12 3/4” Peak Facia (CC-063) 306-17 36” Blank Rockwall Board (CC-066) 306-18 36” 1- Rock Rockwall Board (CC-065) 306-19 36” 2- Rock Rockwall Board (CC-064) 306-20...

  • Page 11: Qty

    KSI-306 5.0 Parrot Island Fort Lumber Description QTY. (CC-080) 306-22 60 1/4” 6- Hole Arch Facia (CC-083) 306-23 60 1/4” 4- Hole Facia (CC-081) 306-24 60 1/4” 6- Hole Deck Facia (CC-257) 306-25 10 5/8” WR Support Gusset (CC-258) 306-26 13”...

  • Page 12: Qty

    KSI-306 5.0 Parrot Island Fort Lumber Description QTY. (CC-096) 306-29 23 3/4” Ladder Facia (CC-259) 306-30 33 5/16” Center Post (CC-260) 306-31 48 1/16” Wood Roof Support (CC-111) 306-32 51 1/8” Picnic Main Beam 306-33 65 3/4” Right Ladder 306-34 65 3/4”...

  • Page 13: Qty

    KSI-306 5.0 Parrot Island Fort Lumber Description QTY. (CC-121) 306-36 51 1/8” Main Beam (CC-143) 306-37 9” Rope Block (CC-149) 306-38 19” Left Gusset (CC-148) 306-39 19” Right Gusset (CC-159) 306-40 51 1/8” Swingbeam Top Joist (CC-163) 306-41 85” Trapeze Arm 306-42 110”...

  • Page 14: Qty

    KSI-306 5.0 Parrot Island Fort Lumber Description QTY. 306-43 110” Right Corner Post (CC-240) 306-44 7 7/8” Center A-Frame Block (CC-243) 306-45 13 3/8” A-Frame Block (CC-244) 306-46 13 3/8” A-Frame Block w/ CS (CC-155) 306-47 70” Crossmember (CC-156) 306-48 113”...

  • Page 15: Qty

    KSI-304 Parrot Island Fort Treehouse Description QTY. 304-1 4 3/4” End Upper Short Board 304-2 10 1/2” Short Panel Board (Green) (CC-009) 304-3 12” Right Window Shutter (Green) (CC-008) 304-4 12” Left Window Shutter (CC-012) 304-5 16” Window Arch 304-6 16 1/2”...

  • Page 16: Qty

    KSI-304 Parrot Island Fort Treehouse Description QTY. (CC-026) 304-8 32” Spindle 304-9 49 3/8” Side Arches 304-10 53 1/2” Panel Support 304-11 19 3/4” End Panel Board 304-12 32” Spindle Filler 304-13 16 1/2” Side Shutter Board 304-14 19 3/4” End Large Shutter Board...

  • Page 17: Qty

    KSI-304 Parrot Island Fort Treehouse Description QTY. 304-15 32” Large Spindle KSI-305 Parrot Island Fort Playhouse Description QTY. (CC-013) 305-1 17” Left Window Shutter (CC-014) 305-2 17” Right Window Shutter (CC-024) 305-3 31 13/16” Corner Facia 305-4 46 7/16” Panel Board #1 305-5 46 7/16”...

  • Page 18: Qty

    KSI-305 Parrot Island Fort Playhouse Description QTY. (CC-032) 305-6 51 1/8” Panel Facia (CC-038) 305-7 60 1/4” Side Facia (CC-044) 305-8 24” Panel Board #3 (CC-046) 305-9 24” Panel Board #4 305-10 51 1/8” Panel Arch 305-11 60 1/4” Store Side Arch 305-12 60 1/4”...
  • Page 19 KSI-305 Parrot Island Fort Playhouse Description QTY. (CC-067) 305-13 39 15/16” Store Counter 305-14 50 7/8” Center Panel Support KSI-309-G/R Parrot Island Fort Wood Roof Description QTY. (Color Depends On Package) 309-1 46 1/2” Wood Roof Support 309-2 55 5/8” Wood Roof Board...

  • Page 20: Table Of Contents

    KSI-306-HWR-BAG 5.0 PARROT ISLAND FORT HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) 3/8” Acorn Nut Plated 3/8” Hex Nut 3/8” x 1 1/2” Hex Bolt 1/4” x 2” Hex Bolt QTY.
  • Page 21 KSI-306-HWR-BAG 5.0 PARROT ISLAND FORT HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) A-13 A-14 A-15 A-16 A-17 3/8” T-Nut 3/8” Split Lockwasher 3/8” Bolt Cup 8 x 80mm Spring Clip #2 x 3 Drive Bit QTY.
  • Page 22 306-SB-HWR PARROT ISLAND FORT SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-1 SB-2 SB-3 SB-6 3/8” Acorn Nut 1/2” Acorn Nut 1/2” x 3 1/2” Carriage Bolt 3/8”...
  • Page 23 306-SB-HWR PARROT ISLAND FORT SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-9 3/8” x 10” Hex Bolt QTY. 2 SB-10 1/2” x 11 1/2” Hex Bolt QTY.
  • Page 24 306-SB-HWR PARROT ISLAND FORT SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-18 SB-19 SB-20 SB-21 3/4” USS Flatwasher 3/8” Bolt Cup 8 x 80mm Spring Clip 1/2”...
  • Page 25 305-HWR-BAG PARROT ISLAND FORT 5.0 PLAYHOUSE PANEL HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) PP-1 PP-2 PP-3 PP-4 90 Degree Bracket 1 1/2” Coated Deck Screw 2” Coated Deck Screw 1/4”...
  • Page 26 KSI-304-HWR-BAG PARROT ISLAND FORT TREEHOUSE PANELS INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) TP-3 TP-1 TP-2 1 1/2” Coated Deck Screw #2 & 3 Drive Bit 2 1/2” Coated Deck Screw QTY.
  • Page 27 Description QTY. 5.0 PIF-SB Parrot Island Fort Standard Box 306-A 90 Degree Bracket 306-B Rockwall/ Ladder Bracket 306-C Swingbeam Tri-Plate 306-D 45 Degree Swingbeam Bracket 306-E Playgrip Safety Handle 306-F Playgrip U-Mount Handle 306-G 14’ Rope...
  • Page 28 Description QTY. 5.0 PIF-SB Parrot Island Fort Standard Box 306-H 16” Trapeze Bar 306-I Disc Swing 306-J Ductile Iron Swing Hanger 306-K Spiral Ground Anchor...
  • Page 29 Description QTY. 5.0 PIF-BA/BB ( Color Depends on Package) 306-AA 66” Chained Belt Swing 306-BB Rockwall Rocks 306-CC Telescope 306-DD Ships’ Wheel...
  • Page 30 Swingbeam Side Wall (Sub Assemblies) PARTS NEEDED HARDWARE NEEDED CC-159- 51 1/8” Swingbeam Top Joist- (1) A-7- 3/8” x 7” Hex Bolt- A-15- 3/8” Bolt Cup- CC-121- 51 1/8” Main Beam- J-1- 3/8” USS Flatwasher- A-14- 3/8” Split Lockwasher- 306-42- 110” Left Corner Post- A-2- 3/8”...
  • Page 31 Trapeze Side Wall (Sub Assemblies) PARTS NEEDED HARDWARE NEEDED CC-163- 85” Trapeze Arm- A-7- 3/8” x 7” Hex Bolt- A-15- 3/8” Bolt Cup- CC-121- 51 1/8” Main Beam- J-1- 3/8” USS Flatwasher- A-14- 3/8” Split Lockwasher- 306-42- 110” Left Corner Post- A-2- 3/8”...
  • Page 32 Trapeze Side Wall (Sub Assemblies) PARTS NEEDED HARDWARE NEEDED CC-149- 19” Left Gusset- A-6- 3/8” x 5” Hex Bolt- A-15- 3/8” Bolt Cup- 306-J- Ductile Iron Swing Hanger- J-1- 3/8” USS Flatwasher- A-14- 3/8” Split Lockwasher- A-12- 3/8” Nylon Insert Locknut- A-1- 3/8”...
  • Page 33 5.0 Parrot Island Fort Ladder (Sub Assemblies) PARTS NEEDED HARDWARE NEEDED 306-34- 65 3/4” Left Ladder Leg- D-1- 2 1/2” Coated Deck Screw- (20) 306-33- 65 3/4” Right Ladder Leg- CC-120- 22” Ladder Step- CC-096- 23 3/4” Ladder Facia-...
  • Page 34 5.0 Parrot Island Fort Ladder (Sub Assemblies) 5.0 Parrot Island Fort Rockwall Boards (Sub Assemblies) PARTS NEEDED HARDWARE NEEDED 306-F- Playgrip U-Mount Handle- A-4- 3/8” x 1 1/2” Hex Bolt- J-1- 3/8” USS Flatwasher- 306-B- Rockwall/ Ladder Bracket- A-13- 3/8” T-Nut- F-1- #14 X 1”...
  • Page 35 5.0 Parrot Island Fort Rockwall Boards (Sub Assemblies) PARTS NEEDED HARDWARE NEEDED 306-35- 65 3/4” Rockwall Ladder Leg- A-4- 3/8” x 1 1/2” Hex Nut- J-1- Rockwall/ Ladder Bracket- J-1- 3/8” USS Flatwasher- CC-065- 36” 2- Rock Rockwall Board- A-13- 3/8” T-Nut- CC-063- 36”...
  • Page 36 Swingbeam Assembly (For 3 Position Inside See Swingbeam Insert) PARTS NEEDED HARDWARE NEEDED CC-240- 7 7/8” Center A-Frame Block- SB-9- 3/8” x 10” Hex Bolt- SB-19- 3/8” Bolt Cup- (10) CC-243- 13 3/8” A-Frame Block w/ CS- SB-17- 3/8” USS Flatwasher- (10) SB-15- 3/8”...
  • Page 37 Swingbeam Assembly 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED CC-083- 60 1/4” 4- Hole Facia- SB-4- 1/2” x 7” Carriage Bolt- SB-18- 3/4” USS Flatwasher- SB-21- 1/2” USS Flatwasher- SB-16- 1/2” Split Lockwasher- SB-7- 1/2” Hex Nut- SB-2- 1/2” Acorn Nut Plated- E-1- 1/4”...
  • Page 38 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED CC-035- 53 1/2” End Deck Board- C-1- 2” Coated Deck Screw- (44) CC-045- 60 1/4” Deck & Picnic Board- I-1- 1/4” USS Flatwasher- CC-081- 60 1/4” 6- Hole Deck Facia- E-1- 1/4” x 3” Hex Lag Screw-...
  • Page 39 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED CC-034- 51 1/8” Deck Support- B-1- 1 1/2” Coated Deck Screw- (11) CC-094- 18” Gusset- I-1- 1/4” USS Flatwasher- (20) 306-A- 90 Degree Bracket- F-1- #14 x 1” Pan Phillips T/S- A-8- 1/4” x 2” Hex Lag Screw- A-9- 1/4”...
  • Page 40 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED CC-080- 60 1/4” 6-Hole Arch Facia- I-1- 1/4” USS Flatwasher- (10) CC-024- 31 13/16” Corner Facia- E-1- 1/4” x 3” Hex Lag Screw- (10)
  • Page 41 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED CC-259- 33 5/16” Center Post- A-3- 1/4” x 2” Hex Bolt- CC-007- 9” Small Corner Facia- I-1- 1/4” USS Flatwasher- H-1- 1/4” T-Nut- E-1- 1/4” x 3” Hex Lag Screw-...
  • Page 42 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED CC-253- 51 1/8” SB Rail Facia- I-1- 1/4” USS Flatwasher- Ladder Assembly- E-1- 1/4” x 3” Hex Lag Screw- F-1- #14 x 1” Pan Phillips T/S-...
  • Page 43 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED Rockwall Assembly- F-1- #14 x 1” Pan Phillips T/S- CC-143- 9” Rockwall Block- I-1- 1/4” USS Flatwasher- J-1- 3/8” USS Flatwasher- A-11- 3/8” x 5” Hex Lag Screw-...
  • Page 44 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED 306-G- 14’ Rope- SB-3- 1/2” x 3 1/2” Carriage Bolt- SB-18- 3/4” USS Flatwasher- 306-C- Swingbeam Tri-Plate- SB-21- 1/2” USS Flatwasher- SB-16- 1/2” Split Lockwasher- SB-7- 1/2” Hex Nut- SB-2- 1/2” Acorn Nut Plated-...
  • Page 45 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED Swingbeam Assembly- SB-5- 1/2” x 9” Carriage Bolt- SB-4- 1/2” x 7” Carriage Bolt- CC-155- 70” Crossmember- SB-18- 3/4” USS Flatwasher- SB-21- 1/2” USS Flatwasher- SB-16- 1/2” USS Flatwasher- SB-7- 1/2” Hex Nut- SB-2- 1/2”...
  • Page 46 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED 306-AA- 66” Chained Belt Swing- SB-20- 8 x 80mm Spring Clip- 306-G- 14’ Rope- 306-I- Disc Swing- SLIP THE ROPE THROUGHT THE SWINGBEAM AND TIE A KNOT. THEN TIE A KNOT EVERY 3 TO 4 FEET UNTIL YOU PLACE THE 306-I ON THE ROPE AND TIE A DOUBLE KNOT KEEPING IT IN PLACE...
  • Page 47 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED 306-K- Spring Anchor- J-1- 3/8” USS Flatwasher- A-10- 3/8” x 3 1/2” Hex Lag Screw- G-1- 1/4” x 1 1/4” Pan Phillips M/S- I-1- 1/4” USS Flatwasher- H-1- 1/4” T-Nut- Use a 1/4” Drill Bit to Drill Holes For the Slide to attach...
  • Page 48 5.0 PIF Main Assembly PARTS NEEDED HARDWARE NEEDED 306-H- 16” Trapeze Bar- A-16- 8 x 80mm Spring Clip- Finished Main Assembly...
  • Page 49 Picnic Table/ Lower Floor Assemblies PARTS NEEDED HARDWARE NEEDED CC-010- 13” Picnic Seat Support- B-1- 1 1/2” Coated Deck Screw- (22) CC-045- 60 1/4” Deck & Picnic Board- CC-035- 53 1/2” End Deck Board- CC-020- 25” Picnic Table Support- Make 2 Picnic/ Lower Floor End Assemblies...
  • Page 50 Picnic Table Install (Used for Base Install) PARTS NEEDED HARDWARE NEEDED CC-111- 51 1/8” Picnic Mainbeam- I-1- 1/4” USS Flatwasher- Picnic End Assembly- E-1- 1/4” x 3” Hex Lag Screw- C-1- 2” Coated Deck Screw- (24) Supports are 9 7/8” from the ground to the bottom of the support...
  • Page 51 Picnic Table Install (Used for Base Install) PARTS NEEDED HARDWARE NEEDED CC-111- 51 1/8” Picnic Main Beam- I-1- 1/4” USS Flatwasher- Table Assembly- E-1- 1/4” x 3” Hex Lag Screw- C-1- 2” Coated Deck Screw- (20) Supports are 20 1/4” from the ground to the bottom of the support...
  • Page 52 Picnic Table Install (Used for Base Install) PARTS NEEDED HARDWARE NEEDED CC-082- 51 1/8” 4- Hole Facia- I-1- 1/4” USS Flatwasher- E-1- 1/4” x 3” Hex Lag Screw- Finshed Picnic Table Assembly...
  • Page 53 Lower Floor Install (Used For Playhouse Panel Install) PARTS NEEDED HARDWARE NEEDED CC-111- 51 1/8” Picnic Mainbeam- I-1- 1/4” USS Flatwasher- End Lower Floor Assembly- E-1- 1/4” x 3” Hex Lag Screw- Lower Floor Center- C-1- 2” Coated Deck Screw- (44) Supports are 20 1/4”...
  • Page 54 Finished Picnic Assembly Finished Lower Floor Assembly...
  • Page 55 Open Rail Option (Used for Base Install) PARTS NEEDED HARDWARE NEEDED CC-026- 32”Spindle- (10) B-1- 1 1/2” Coated Deck Screw- (40) All Rails Are 2 1/2” Apart...
  • Page 56 Open Rail Option (Used for Base Install) PARTS NEEDED HARDWARE NEEDED 306-A- 90 Degree Bracket- F-1- #14 x 1” Pan Phillips T/S- CC-017- 22” Tic Tac Board- I-1- 1/4” USS Flatwasher- CC-026- 32” Spindle- B-1- 1 1/2” Coated Deck Screw- 306-L- Tic Tac Toe- CC-017 Does not reach the outside of the CC-026’s 24”...
  • Page 57 Open Rail Option (Used for Base Install) PARTS NEEDED HARDWARE NEEDED CC-026- 32” Spindle- B-1- 1 1/2” Coated Deck Screw- Tic Tac Toe- I-1- 1/4” USS Flatwasher- 306-E- Playgrip Safety Handle- F-1- #14 x 1” Pan Phillips T/S-...
  • Page 58 Closed Rail Option (Used for Treehouse Panels) PARTS NEEDED HARDWARE NEEDED (PARTS FROM STANDARD & TREEHOUSE) CC-026- 32” Spindle- (12) TP-1- 1 1/2” Coated Deck Screw- (64) 304-12- 32” Spindle Filler- 304-15- 32” Large Spindle-...
  • Page 59 Closed Rail Option (Used for Treehouse Panels) PARTS NEEDED HARDWARE NEEDED (PARTS FROM STANDARD & TREEHOUSE) CC-017- 22” Tic Tac Toe Board- B-1- 1 1/2” Coated Deck Screw- CC-026- 32” Spindle- TP-1- 1 1/2” Coated Deck Screw- (32) CC-017 Does not reach the outside of the CC-026’s 24”...
  • Page 60 Closed Rail Option (Used for Treehouse Panels) PARTS NEEDED HARDWARE NEEDED 306-A- 90 Degree Bracket- I-1- 1/4” USS Flatwasher- (16) 306-E- Playgrip Safety Handles- F-1- #14 x 1” Pan Phillips T/S- (16) 306-A...
  • Page 61 Wood Roof Install (For Treehouse Panels Go To Treehouse for 1st Step) PARTS NEEDED HARDWARE NEEDED CC-260- 48 1/16” Wood Roof Support- A-5- 3/8” x 4 1/2” Hex Bolt- CC-256- 12 3/4” Wood Roof Peak- A-15- 3/8” Bolt Cup- A-13- 3/8” T-Nut- A-1- 3/8”...
  • Page 62 Wood Roof Install PARTS NEEDED HARDWARE NEEDED 309-2- 55 5/8” Wood Roof Board- B-1- 1 1/2” Coated Deck Screw- (32) 309-1- 46 1/2” Wood Roof Support- K-1- 1 1/4” Coated Deck Screw-...
  • Page 63 Wood Roof Install PARTS NEEDED HARDWARE NEEDED 309-2- 55 5/8” Wood Roof Board- (14) B-1- 1 1/2” Coated Deck Screw- (56) CC-257- 10 5/8” WR Support Gusset- K-1- 1 1/4” Coated Deck Screw- (14)
  • Page 64 Wood Roof Fan Assembly (Make 2 Fan Assemblies) PARTS NEEDED HARDWARE NEEDED CC-255- 58 1/2” Bottom Fan Board- B-1- 1 1/2” Coated Deck Screw- (24) CC-258- 13” Wood Roof Plate- CC-251- 18” Fan Board #1- CC-250- 13 1/2” Fan Board #2- CC-252- 19”...
  • Page 65 Wood Roof Install PARTS NEEDED HARDWARE NEEDED Fan Assembly- B-1- 1 1/2” Coated Deck Screw- (28) CC-254- 53 7/8” Wood Roof End Cap- C-1- 2” Coated Deck Screw-...
  • Page 66 End Treehouse Panel Assembly PARTS NEEDED HARDWARE NEEDED 304-14- 19 3/4” End Large Shutter Board- 304-10- 53 1/2” Panel Support- TP-1- 1 1/2” Coated Deck Screw- (118) 304-1- 4 3/4” End Upper Short Board- (12) CC-012- 16” Window Arch- 304-7- 18 1/2” End Center Board- CC-008- 12”...
  • Page 67 Side Treehouse Panel Assembly (Need to make before Wood Roof) PARTS NEEDED HARDWARE NEEDED 304-9- 49 3/8” Side Arches- 304-13- 16 1/2” Side Shutter Board- TP-1- 1 1/2” Coated Deck Screw- (30) CC-008- 12” Left Window Shutter- CC-009- 12” Right Window Shutter- 306-6- Side Center Board- 9 7/8”...
  • Page 68 Treehouse Panel Install PARTS NEEDED HARDWARE NEEDED Side Panel- TP-3- 2 1/2” Coated Deck Screw- End Panel- TP-1- 1 1/2” Coated Deck Screw- (53) With Wood Roof On Continue to Install End Panels The Panel Sits 1 11/16” Below the Top Of the Corner Post. Place panels on and Go back to Wood Roof...
  • Page 69 Playhouse Panel Assemblies (Door Panel) PARTS NEEDED HARDWARE NEEDED 304-14- 50 7/8” Center Panel Support- PP-2- 1 1/2” Coated Deck Screw- (32) 305-5- 46 7/16” Panel Board #2- PP-4- 1/4” x 2” Hex Bolt- CC-044- 24” Panel Board #3- PP-8- 1/4” USS Flatwasher- CC-024- 31 13/16”...
  • Page 70 Playhouse Panel Assemblies (Store Panel) PARTS NEEDED HARDWARE NEEDED 305-4- 46 7/16” Panel Board #1- PP-2- 1 1/2” Coated Deck Screw- (56) 305-5- 46 7/16” Panel Board #2- CC-046- 24” Panel Board #4- CC-038- 60 1/4” Side Facia-...
  • Page 71 Playhouse Panel Assemblies (Double Window Panel QTY. 2) PARTS NEEDED HARDWARE NEEDED 305-5- 46 7/16” Panel Board #2- PP-2- 1 1/2” Coated Deck Screw- (120) 305-4- 46 7/16” Panel Board #1- CC-044- 24” Panel Board #3- (12) CC-032- 51 1/8” Panel Facia- CC-013- 17”...
  • Page 72 Playhouse Panel Install PARTS NEEDED HARDWARE NEEDED 305-12- 60 1/4” Door Side Arches- PP-8- 1/4” USS Flatwasher- (10) Door Side Panel- PP-5- 1/4” x 3” Hex Lag Screw- PP-1- 90 Degree Bracket- PP-6- #14 x 1” Pan Phillips- PP-3- 2” Coated Deck Screw- PP-2- 1 1/2”...
  • Page 73 Playhouse Panel Install PARTS NEEDED HARDWARE NEEDED 305-10- 51 1/8” Panel Arch- PP-8- 1/4” USS Flatwasher- (16) Double Window Panel- PP-5- 1/4” x 3” Hex Lag Screw- (16) PP-2- 1 1/2” Coated Deck Screw- (20)
  • Page 74 Playhouse Panel Install PARTS NEEDED HARDWARE NEEDED Store Panel- PP-8- 1/4” USS Flatwasher- CC-067- 39 15/16” Store Counter- PP-5- 1/4” x 3” Hex Lag Screw- PP-2- 1 1/2” Coated Deck Screw- PP-3- 2” Coated Deck Screw-...
  • Page 75 5.0 Parrot Island Fort 5.0 Parrot Island Fort With Playhouse Panels 5.0 Parrot Island Fort with Treehouse Panels 5.0 Parrot Island Fort Fully Enclosed...
