USE OF COMPOSITOR SW67511:

To configure the "CAN / Modbus Master - Converter", use the available software
that runs with Windows, called SW67511. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is
referenced to the last version of the software present on our web site). The
software works with MSWindows (MS 2000, XP, Vista, Seven). When launching the
SW67511 the right window appears (Fig. 2).

NEW CONFIGURATION / OPEN CONFIGURATION:

The "New Configuration" button creates the folder which contains the entire device configuration.
ADFweb.com Srl – IT31010 – Mareno – Treviso

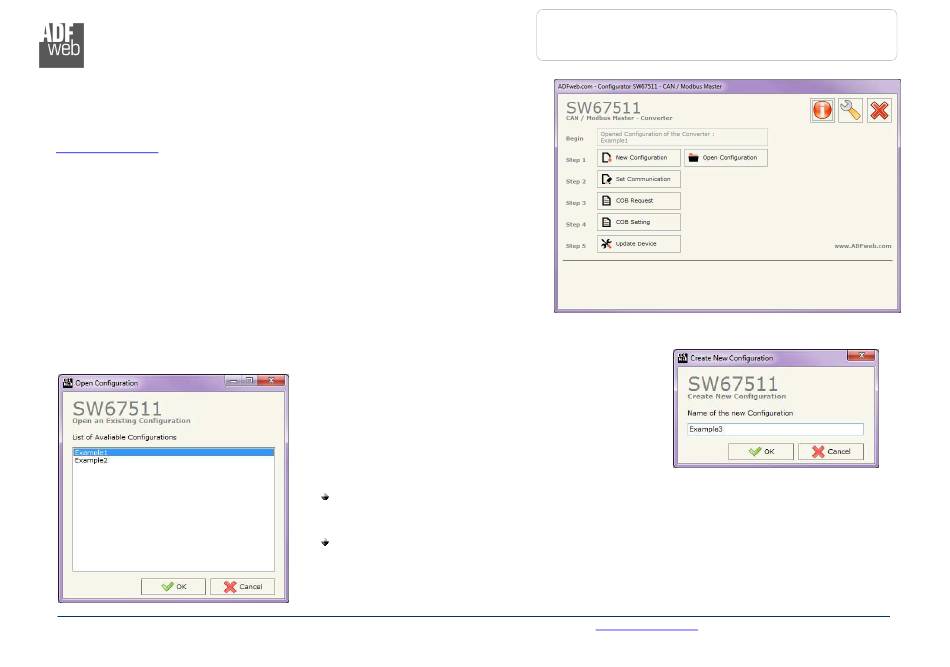

Figure 2: Main window for SW67511
A device configuration can also be imported or exported:
To clone the configurations of a programmable "CAN / Modbus Master – Converter" in order
to configure another device in the same manner, it is necessary to maintain the folder and
all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
"Open Configuration".
