3.5 Power-Up ProtoNode

Apply power to ProtoNode as show below in
complies with the specifications provided in
•
ProtoNode accepts either 9-30VDC or 12-24 VAC on pins 4 and 5.
•
Frame GND should be connected.
Power Requirement for ProtoNode External Gateway
ProtoNode Family
FPC – N34 (Typical)
FPC – N34 (Maximum)
FPC – N35 (Typical)
FPC – N35 (Maximum)
NOTE: These values are 'nominal' and a safety margin should be added to the power supply of the
host system. A safety margin of 25% is recommended.
Power to
ProtoNode
Power In (+)
Power In (-)
Frame Ground
Figure 18.
Appendix D.1.

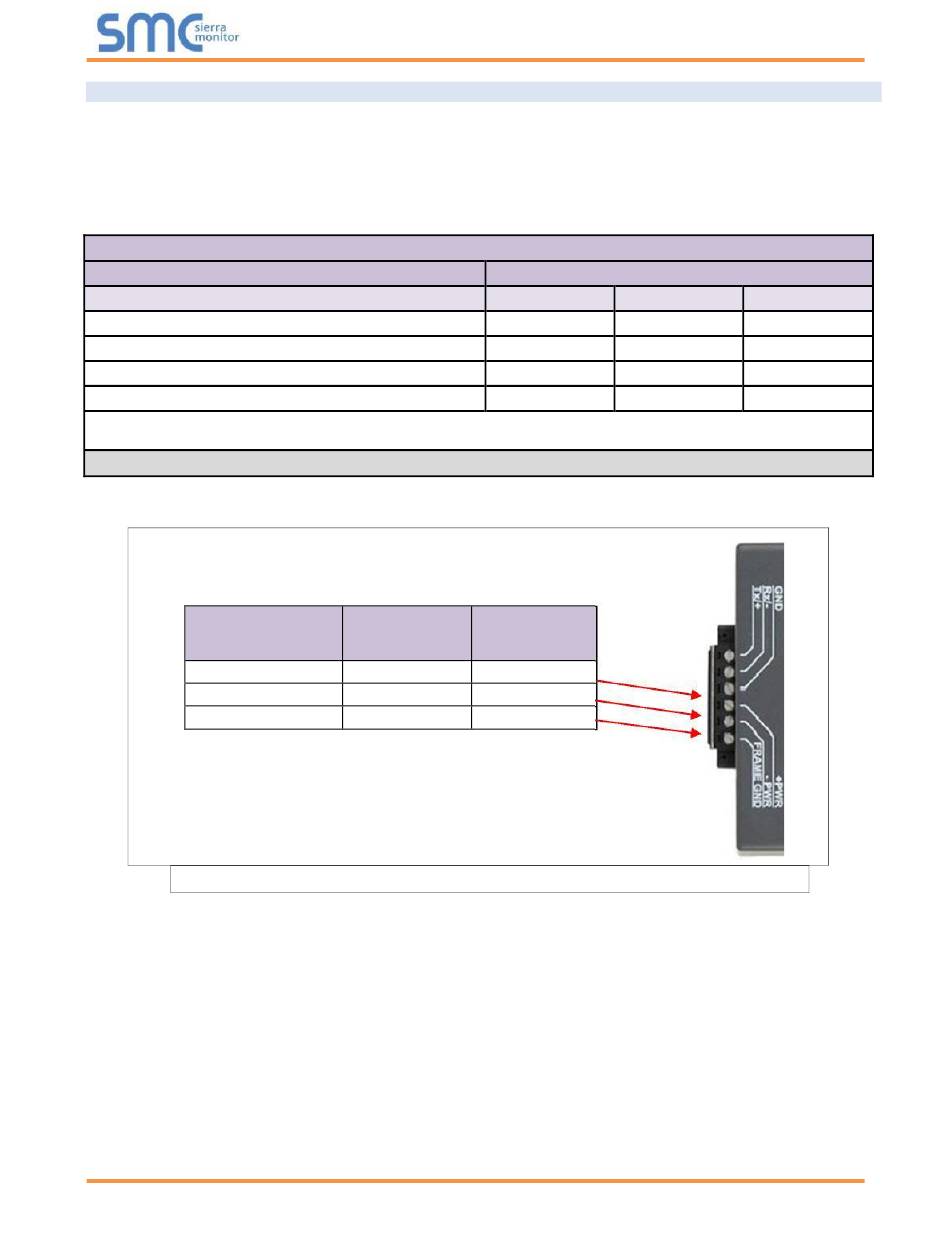

Figure 17: Required current draw for the ProtoNode

ProtoNode
Pin #
Pin 4
Pin 5
Pin 6

Figure 18: Power Connections

Page 20 of 50
ProtoNode Startup Guide
Ensure that the power supply used
Current Draw Type
12VDC/VAC 24VDC/VAC
170mA 100mA
240mA 140mA
210mA 130mA
250mA 170mA
Pin
Assignment
V +
V -
FRAME GND
30VDC
80mA
100mA
90mA
110mA
