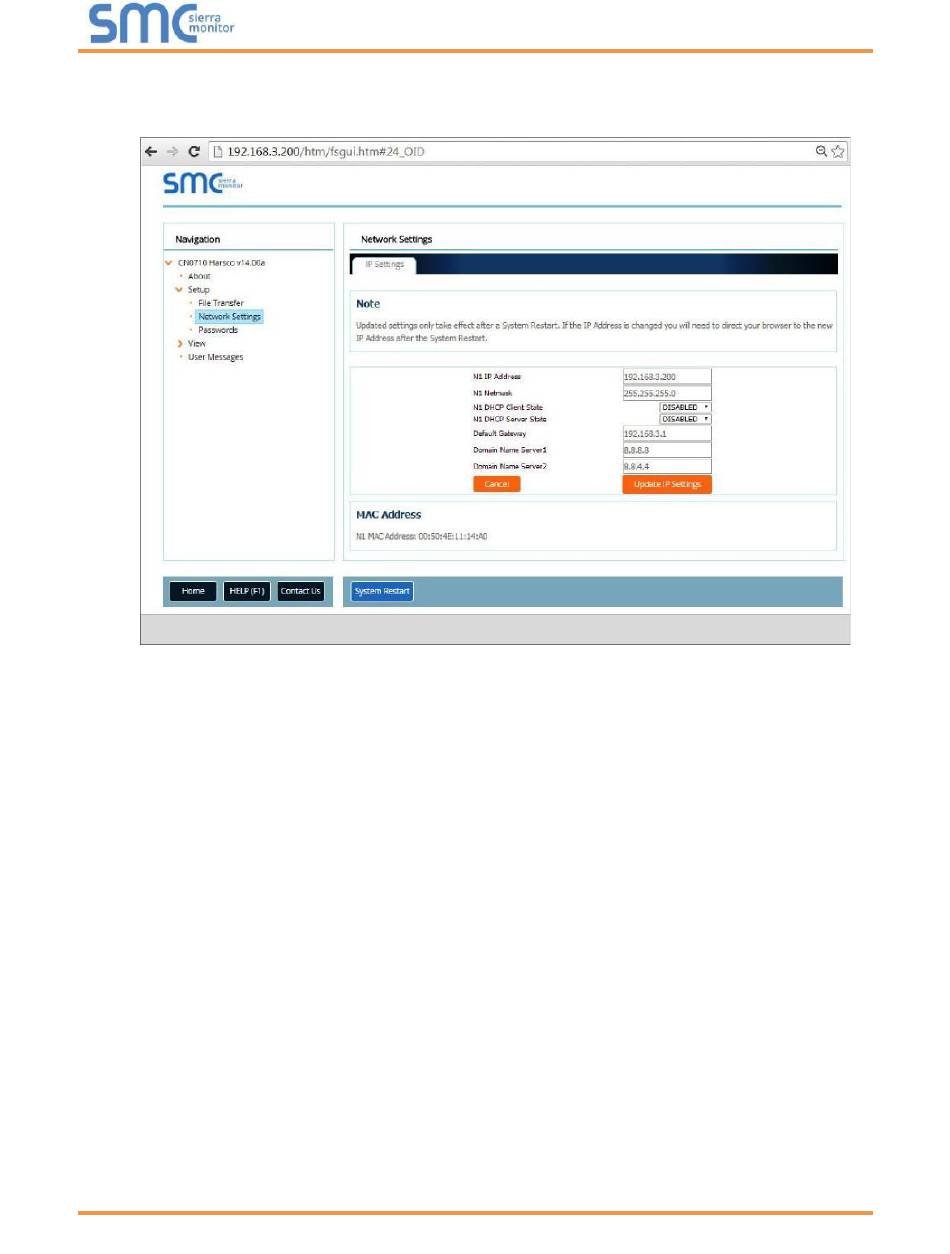

Figure 21: Changing Ip Address Via Web Gui - SMC Networks ProtoNode FPC-N34 Manual

•
From the Web GUI's landing page, click on "Setup" to expand the navigation tree. Then select
"Network Settings" to access the IP Settings menu.
•
Modify the IP Address (N1 IP Address field) of the ProtoNode Ethernet port.
•
If necessary, change the Netmask (N1 Netmask field).
•
Type in a new Subnet Mask.
•
If necessary, change the IP Gateway (Default Gateway field).
•
Type in a new IP Gateway.
NOTE: If the ProtoNode is connected to a router, the IP Gateway of the ProtoNode should be set to the IP
Address as the router.
•
Reset ProtoNode.
•
Unplug Ethernet cable from PC and connect it to the network hub or router.
•
Record the IP Address assigned to the ProtoNode for future reference.

Figure 21: Changing IP Address via Web GUI
