Status Screen

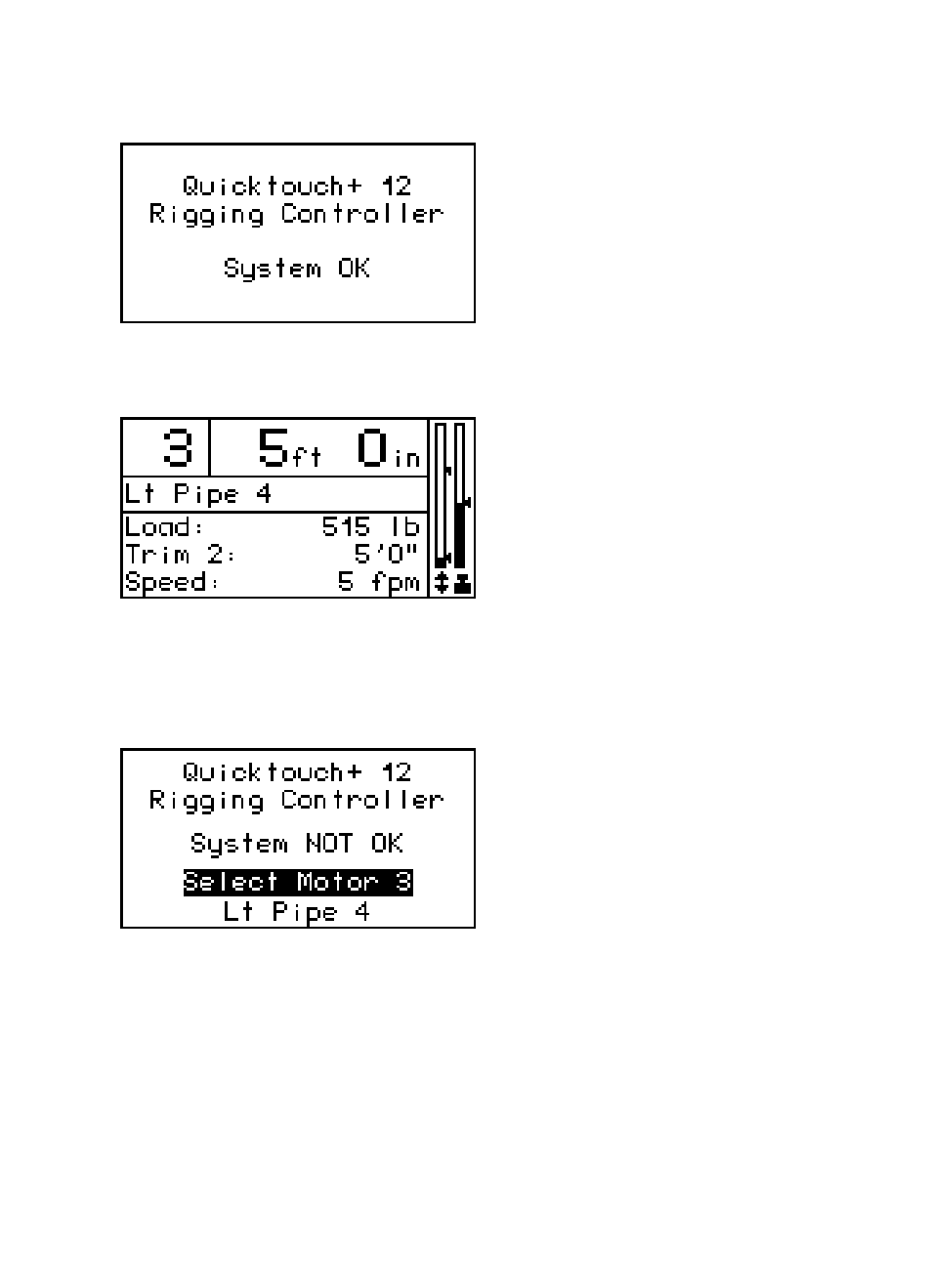

The status screen provides important information about your QuickTouch+ Mk2 system. When
the system is running without motors selected or errors detected, the System OK screen is
displayed.
When you select a motor, the Motor Status screen is displayed. This screen provides static and
dynamic information about the motor selected. If you have selected multiple motors, the
screen displays information for the last selected motor only.
When you move a motor, the speed, position, and location bar graph update dynamically.
When a system error occurs, the System Not OK screen alternates with the contact information
screen and the buttons of the selected motors flash red. Press the flashing red motor buttons
to display the errors on the bottom two lines. If more than two errors exist, they scroll on the
bottom two lines.

Motor Select Buttons

The motor select buttons are equipped with color LEDs to signify various conditions. These are
only present on the QuickTouch+ Mk2 6 Channel / 12 Channel controllers.
• White: Motor selected, but not moving
• Blinking blue: Motor moving up
• Blinking green: Motor moving down
• Blinking white: Trim being recorded
• Alternating red and other: Error (see
• Alternating yellow and other: Informational messages
• LED dim: Motor not selected
• LED off: Inactive button / no motor assigned
Operation
Status Messages on page 17
)
