Chapter 4

Trims

Trims are user-programmable stopping points. If you do not record any trims, the motor will
travel completely between the limits set when the system was commissioned.
QuickTouch+ Mk2 6 Channel and QuickTouch+ Mk2 12 Channel controllers can have up to
five recorded trims for each channel:
• High trim (an upper limit, the highest point the controller allows the motor to reach)
• Three intermediate trims
• Low trim (a lower limit, the lowest point the controller allows the motor to reach)
QuickTouch+ Mk2 1 Channel allows for only one recorded trim.

Manage Trims

Only trained and authorized personnel should record or delete trims.

QuickTouch+ Mk2 6 Channel / 12 Channel

There are two methods for recording and deleting trims on the QT+ MK2 6Ch/12CH
controllers.
Record Trim 2 for One or More Motors
You can use the [Trim/Menu] button to quickly record the current location of a motor as
Trim 2. This can be done for more than one motor at a time. Trims recorded using this method
are always stored as Trim 2.

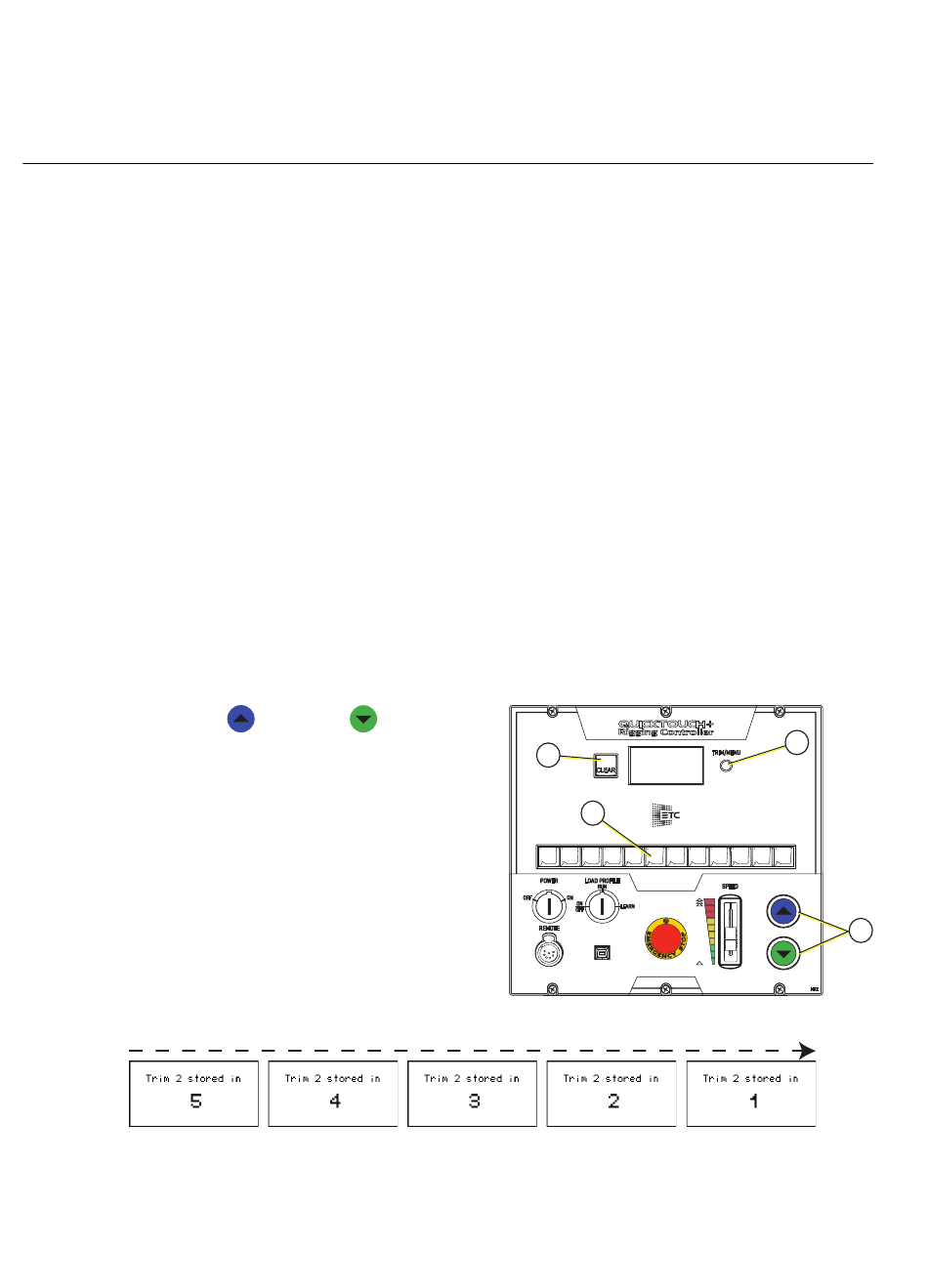

1. Use the Up
move motors
positions.
2. Press the [Clear] button to deselect all
motors.
3. Press and release the [Trim/Menu] button.
The LCD screen instructs you to hold
motor select buttons.
4. Press and hold the select buttons for all
desired motors for 5 seconds. The LEDs
for those motors will blink white during
this time and a countdown displays on
the LCD screen.
After 5 seconds, all motors with their select buttons pressed will have their current positions
stored as Trim 2. Pressing [Clear] or releasing the motor select buttons during record will
deselect all motors and abort the record operation.
12
and Down buttons to
to their prospective Trim 2
2
4
1 2 3 4 5 6 7 8 9
QuickTouch+ Mk2 User Guide
3
10 11 12
1
