Dimensions

7.3.1 Housing Types for K-System Isolated Barriers

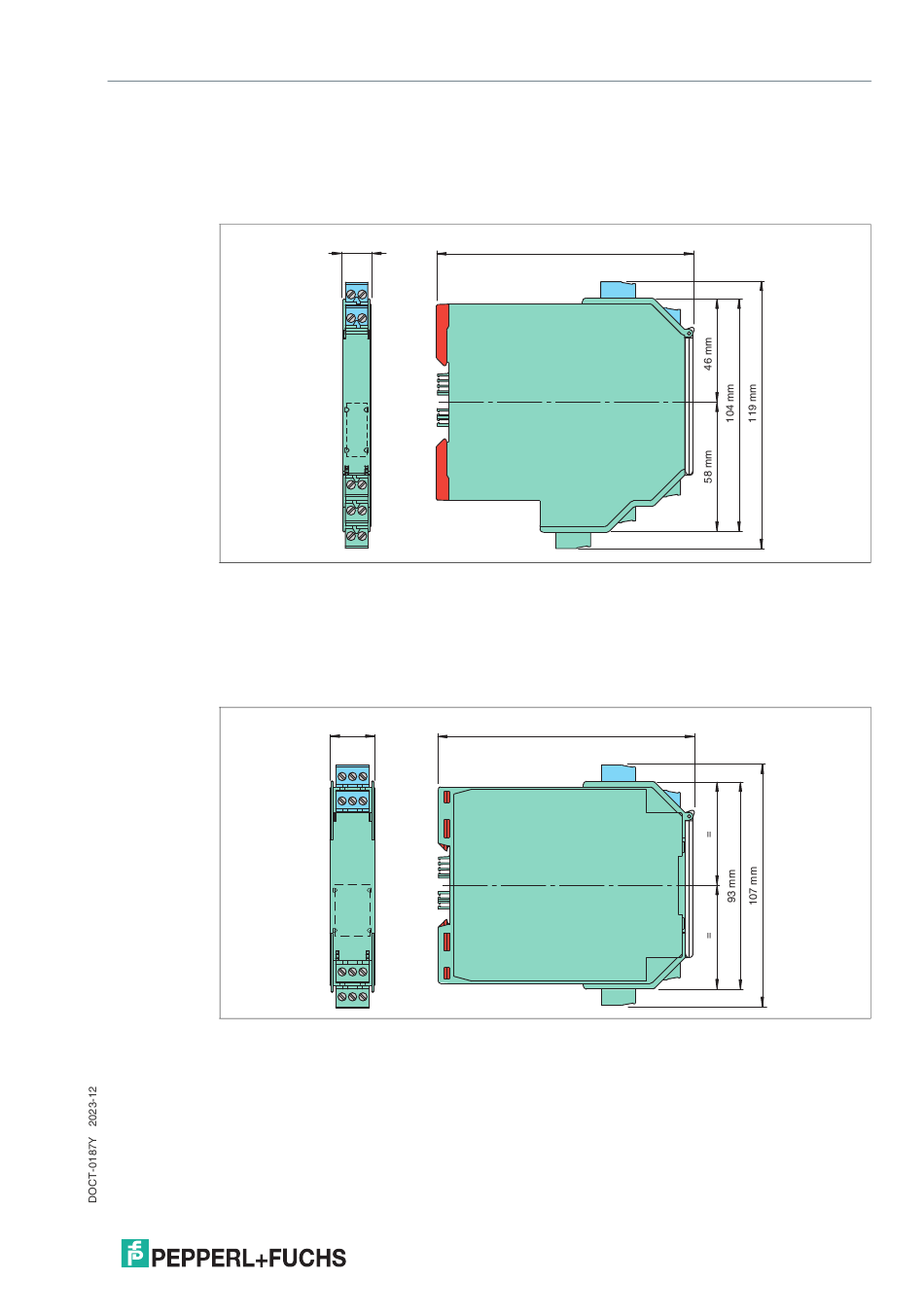

Housing Type A2
Figure 7.1
• Device with screw terminals: 12.5 x 119 x 114 mm (0.71 x 4.7 x 4.5 inch)
• Device with screw terminals and test sockets: 12.5 x 124 x 114 mm (0.71 x 4.9 x 4.5 inch)
• Device with spring terminals: 12.5 x 131 x 114 mm (0.71 x 5.2 x 4.5 inch)
• Number of terminal blocks max. 5
Housing Type B1
Figure 7.2
• Device with screw terminals: 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch)
• Device with screw terminals and test sockets: 20 x 115 x 115 mm (0.8 x 4.5 x 4.5 inch)
• Device with spring terminals: 20 x 122 x 115 mm (0.8 x 4.8 x 4.5 inch)
• Number of terminal blocks maximum 4
12.5 mm
Dimensions (W x H x D)
20 mm
Dimensions (W x H x D)
114 mm
115 mm
