K-System – Isolated Barriers
Technical Specifications

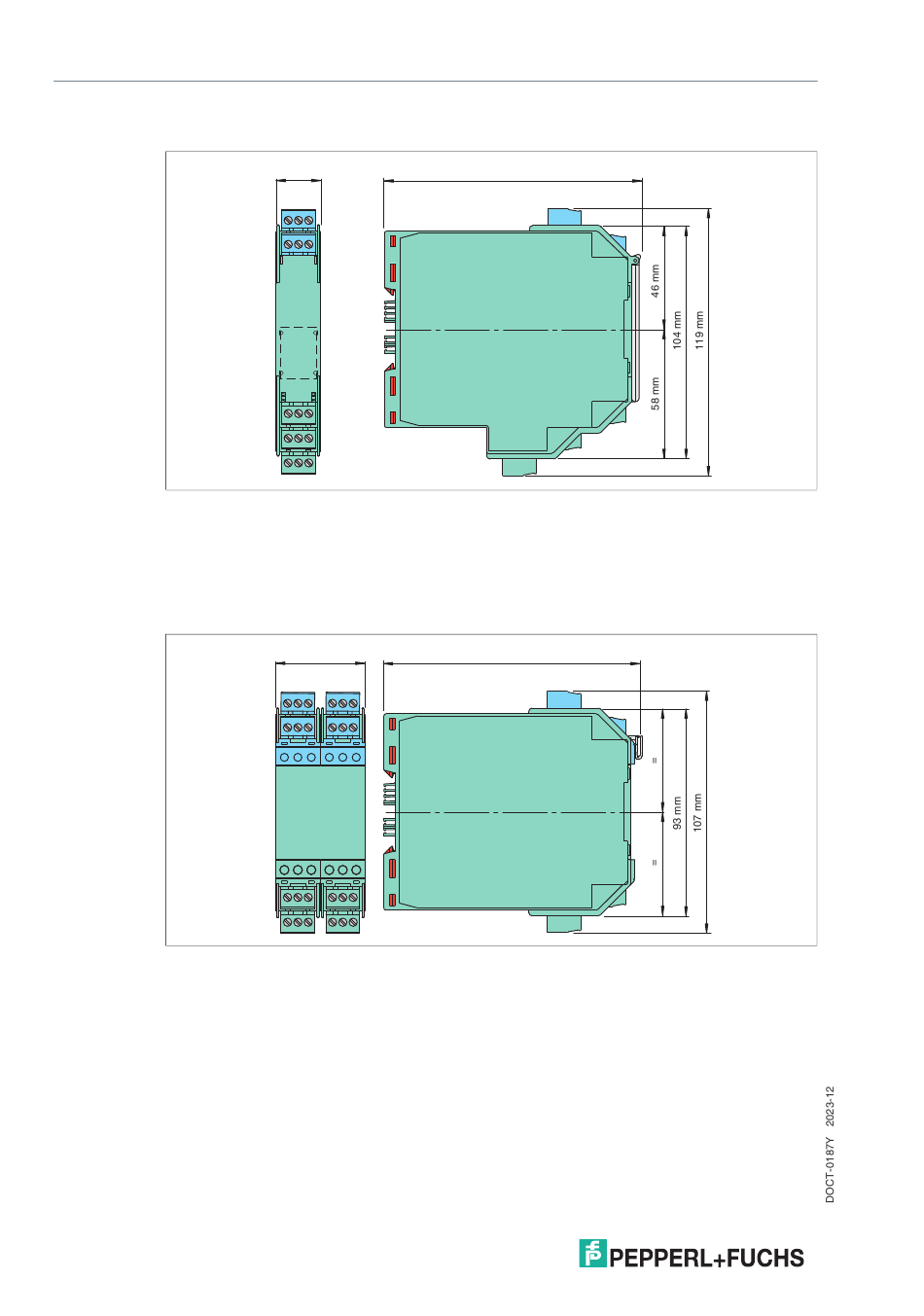

Housing Type B2
Figure 7.3
• Device with screw terminals: 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch)
• Device with screw terminals and test sockets: 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch)
• Device with spring terminals: 20 x 131 x 115 mm (0.8 x 5.2 x 4.5 inch)
• Number of terminal blocks maximum 5
Housing Type C1
Figure 7.4
• Device with screw terminals: 40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch)
• Device with screw terminals and test sockets: 40 x 115 x 115 mm (1.6 x 4.5 x 4.5 inch)
• Device with spring terminals: 40 x 122 x 115 mm (1.6 x 4.8 x 4.5 inch)
• Number of terminal blocks max. 8
48
20 mm
Dimensions (W x H x D)
40 mm
Dimensions (W x H x D)
115 mm
115 mm
