Dimensions

7.3.1 Housing Types Isolated Barriers K-System

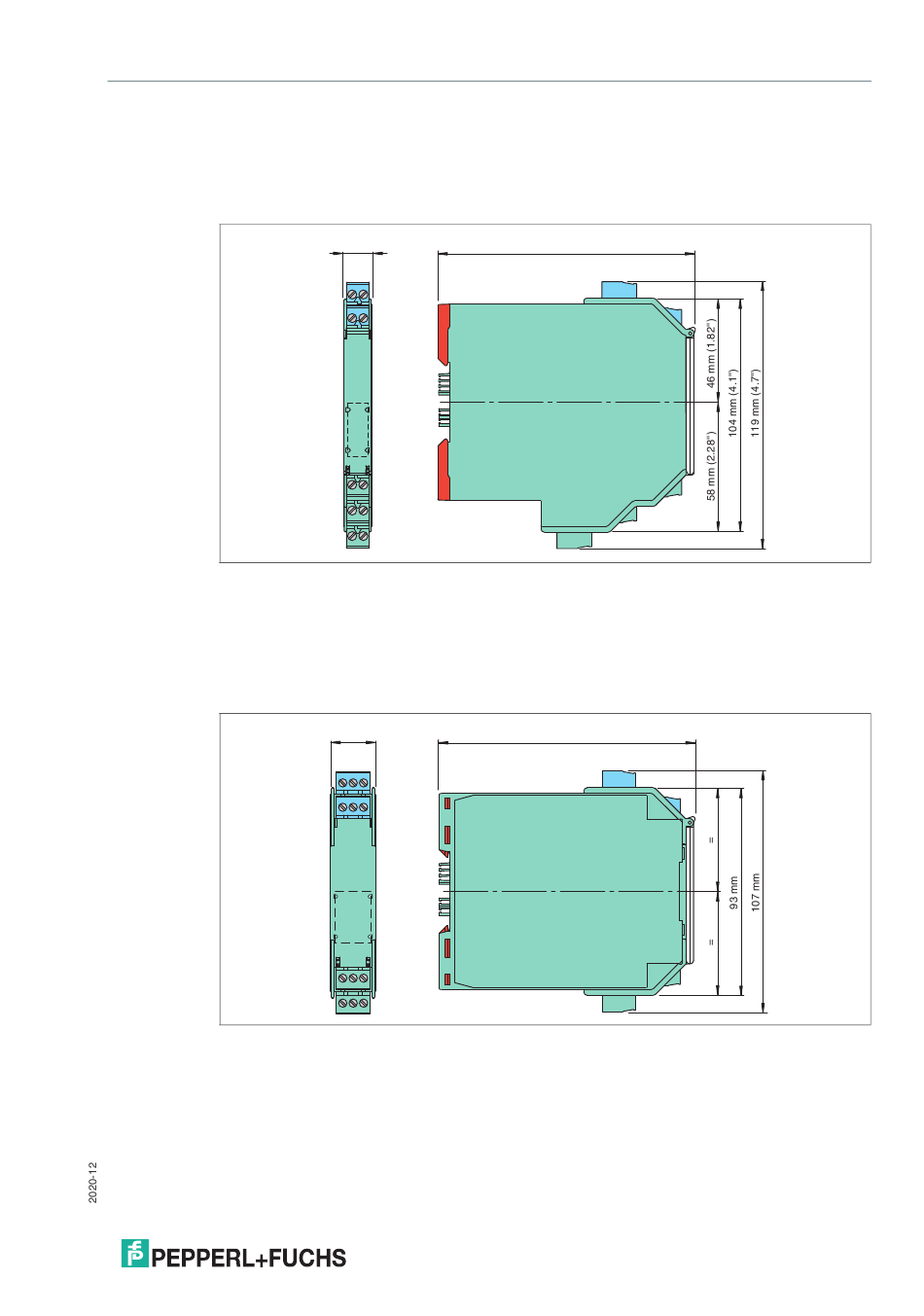

Housing Type A2
Figure 7.1
Number of terminal blocks max. 5
• Dimension drawing with screw terminals
• When using screw terminals with test sockets the device is 124 mm (4.9 in) in height.
• When using spring terminals the device is 131 mm (5.16 in) in height.
Housing Type B1
Figure 7.2
Number of terminal blocks maximum 4
• Dimension drawing with screw terminals
• When using screw terminals with test sockets the device is 115 mm (4.6 in) in height.
• When using spring terminals the device is 122 mm (4.8 in) in height.
12,7 mm
(0.5")
20 mm
114 mm (4.49'')
115 mm
