Label Carrier; Din Mounting Rail - Pepperl+Fuchs KCD2-SCS-Ex2.SP System Manual

K-System – Isolated Barriers
Product Specifications
2.7

Label Carrier

For individual labeling, the isolated barriers are equipped ex works with a label carrier.
Labels can be inserted into the label carrier.
It is also possible to attach an adhesive label to the transparent front flap.
1

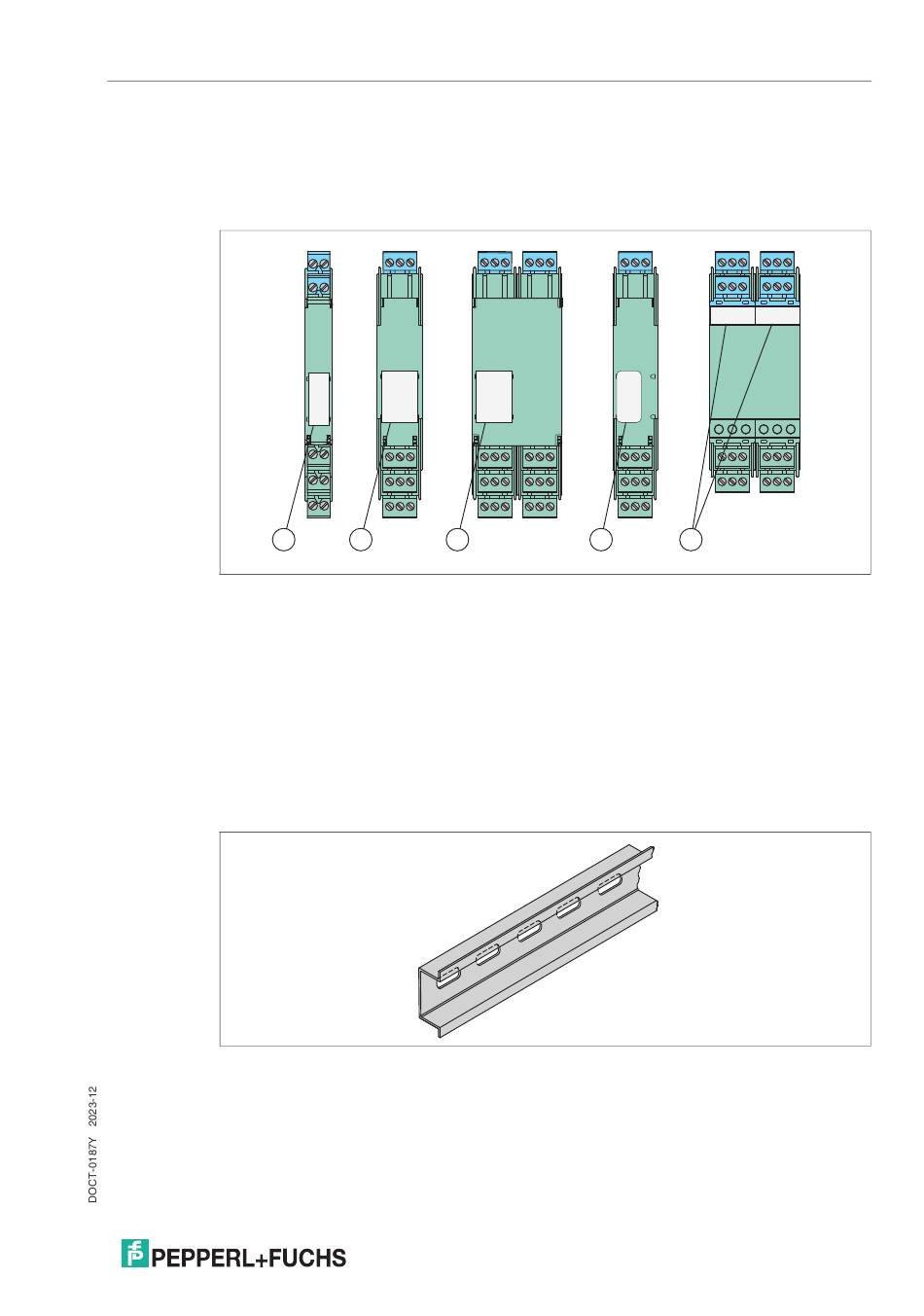

Figure 2.21
1 Label carrier on KC devices with 22 mm x 9 mm label
2 Label carrier on KF devices with 22 mm x 16.5 mm label
3 Adhesive label 22 mm x 11 mm for all KC and KF devices, can only be used on devices
with a transparent front flap
4 Label carrier on KF devices with 18 mm x 8 mm label, can only be used on devices
without a transparent front flap
2.8

DIN Mounting Rail

The devices are mounted on a 35 mm DIN mounting rail according to EN 60715.
Figure 2.22
2 2
Devices with transparent front flap
Example: DIN mounting rail UPR-MR (35 mm x 15 mm)
3 4
