Distech Controls ECLYPSE ECY-VAV Installation Manual page 3

£
Always use unshielded cabling with a minimum Category 5 (CAT5) cable for ethernet communications.
£
Do not connect the universal inputs, analog/digital outputs or common terminals to earth or chassis ground (unless stated otherwise and/or using
shielded Ethernet cable).

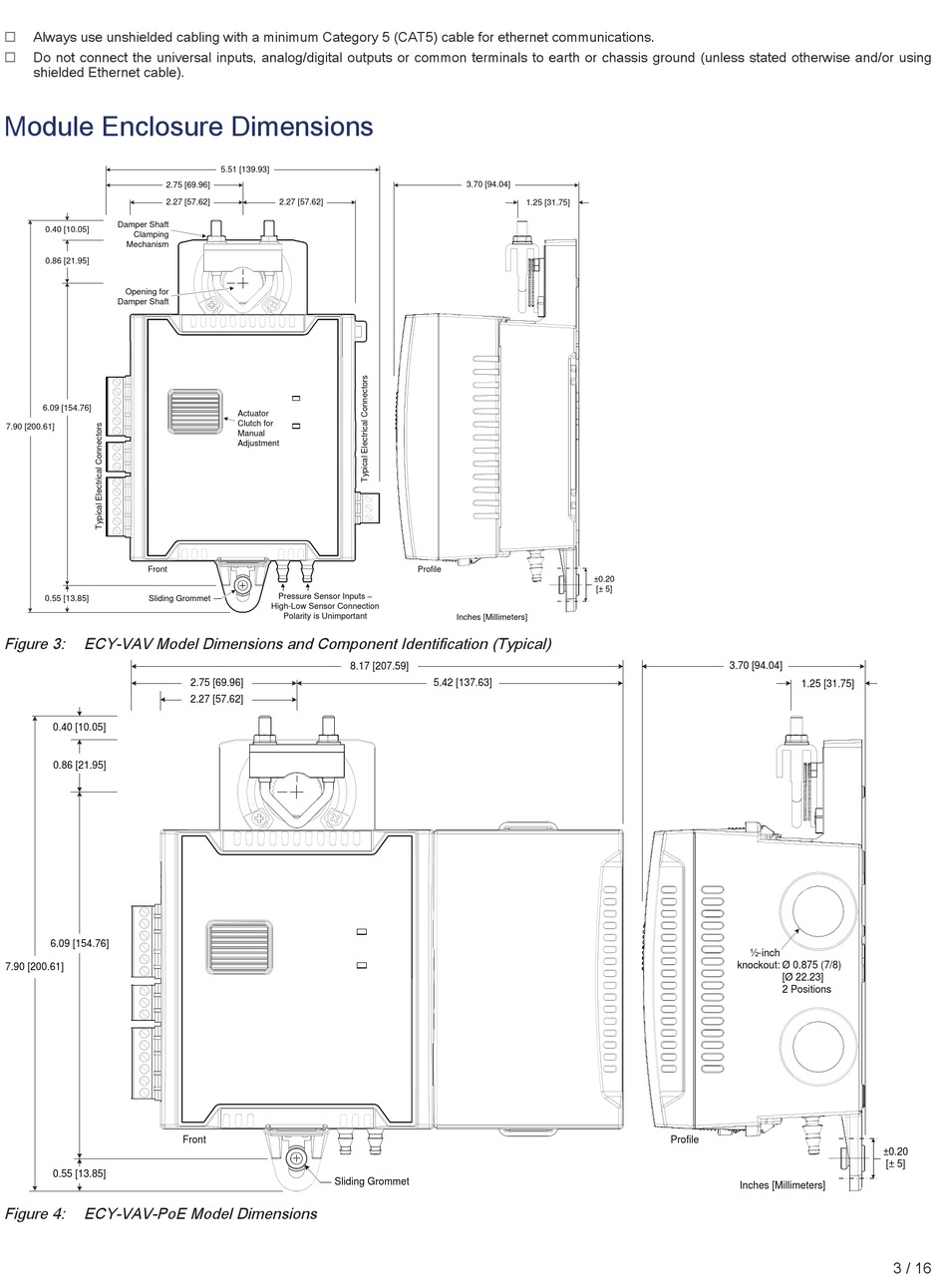

Module Enclosure Dimensions
2.75 [69.96]
2.27 [57.62]
Damper Shaft
0.40 [10.05]
Clamping
Mechanism
0.86 [21.95]
Opening for
Damper Shaft
6.09 [154.76]
7.90 [200.61]
Front
0.55 [13.85] Sliding Grommet
Figure 3: ECY-VAV Model Dimensions and Component Identification (Typical)
0.40 [10.05]
0.86 [21.95]
6.09 [154.76]
7.90 [200.61]
0.55 [13.85]
Figure 4: ECY-VAV-PoE Model Dimensions
5.51 [139.93]
2.27 [57.62]
Actuator
Clutch for
Manual
Adjustment
Pressure Sensor Inputs –
High-Low Sensor Connection
Polarity is Unimportant
8.17 [207.59]
2.75 [69.96]
2.27 [57.62]
Front
Sliding Grommet
3.70 [94.04]
1.25 [31.75]
Profile
±0.20
Inches [Millimeters]
5.42 [137.63]
[± 5]
3.70 [94.04]
½-inch
knockout:
Profile
Inches [Millimeters]
1.25 [31.75]
Ø 0.875 (7/8)
[Ø 22.23]
2 Positions
±0.20
[± 5]
3 / 16
