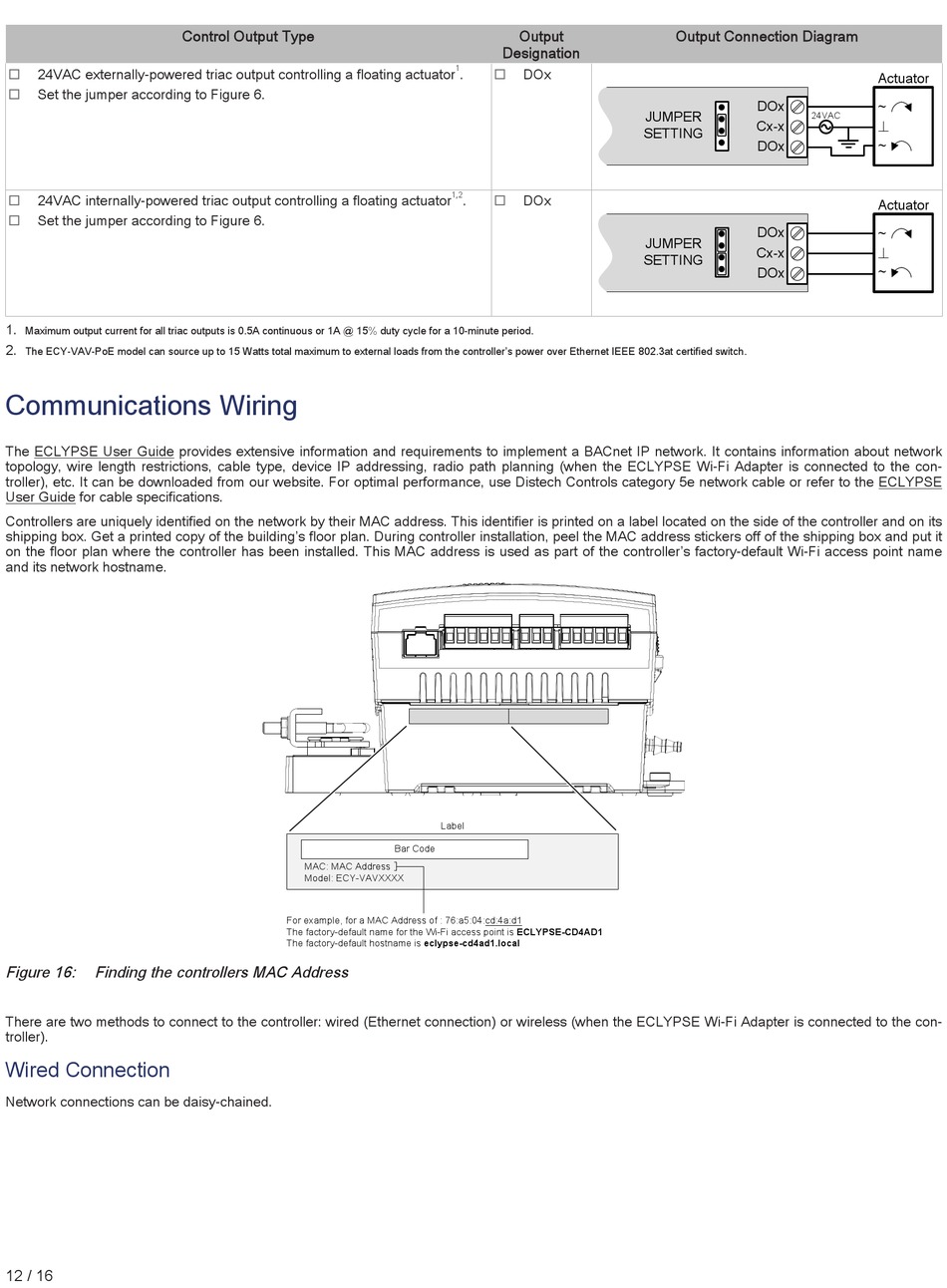

Control Output Type

24VAC externally-powered triac output controlling a floating actuator

Set the jumper according to Figure 6.

24VAC internally-powered triac output controlling a floating actuator

Set the jumper according to Figure 6.

Maximum output current for all triac outputs is 0.5A continuous or 1A @ 15% duty cycle for a 10-minute period.

The ECY-VAV-PoE model can source up to 15 Watts total maximum to external loads from the controller's power over Ethernet IEEE 802.3at certified switch.

Communications Wiring

The ECLYPSE User Guide provides extensive information and requirements to implement a BACnet IP network. It contains information about network

topology, wire length restrictions, cable type, device IP addressing, radio path planning (when the ECLYPSE Wi-Fi Adapter is connected to the con-

troller), etc. It can be downloaded from our website. For optimal performance, use Distech Controls category 5e network cable or refer to the ECLYPSE

User Guide for cable specifications.

Controllers are uniquely identified on the network by their MAC address. This identifier is printed on a label located on the side of the controller and on its

shipping box. Get a printed copy of the building's floor plan. During controller installation, peel the MAC address stickers off of the shipping box and put it

on the floor plan where the controller has been installed. This MAC address is used as part of the controller's factory-default Wi-Fi access point name

and its network hostname.

Figure 16:

Finding the controllers MAC Address

There are two methods to connect to the controller: wired (Ethernet connection) or wireless (when the ECLYPSE Wi-Fi Adapter is connected to the con-

troller).

Wired Connection

Network connections can be daisy-chained.

12 / 16

1,2

Label

Bar Code

MAC: MAC Address
