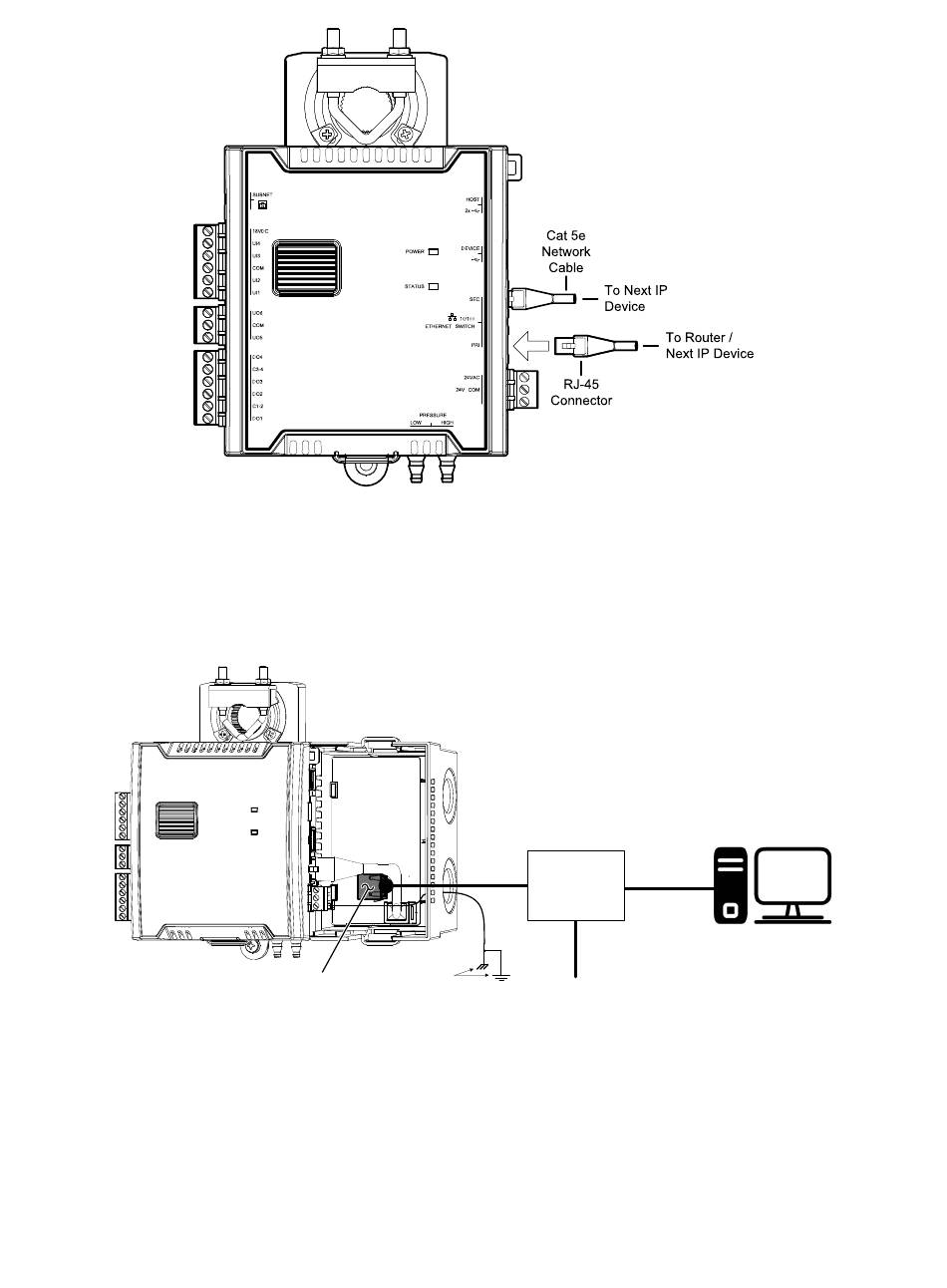

Figure 17: ECY-VAV Model Communications Wiring
ECY-VAV-PoE Model Wired Connection
The ECY-VAV-PoE model uses the network wiring to provide both data connection and the electrical power it needs to operate. The electrical power is
provided by the connected network switch. This controller must be used with an IEEE 802.3at certified network switch that is configured such that its de-
fault power allocation mode will always provide the maximum available power to the ECY-VAV-PoE device without negotiation. You must administratively
disable any other power negotiation protocols on the switch interface – see the switch's configuration guide for more information.
A network connection to this model cannot be daisy-chained; each controller must be directly connected to the Network PoE switch.
Figure 18: Providing Power and Network Connectivity to an ECY-VAV-PoE Model.
To remove power from an ECY-VAV-PoE controller, disconnect the "PoE Network Connection" shown in Figure 17.

Wireless Connection

Once the ECLYPSE Wi-Fi Adapter has been connected to the controller, a Wi-Fi hotspot becomes available that allows you to connect to the controller's
configuration Web interface with your PC.
On your PC's wireless networks, look for an access point named ECLYPSE-XXYYZZ where XXYYZZ are the last 6 hexadecimal characters of the con-
troller's MAC address (see above). The default password for the wireless network is: eclypse1234
PoE
Circuit
Board
Chassis or
PoE Network
Earth ground
Connection
Network
Data
with PoE
Network PoE
Switch
OR
Power
Recommended
Ground
Connection
Network Data
Only
PC
