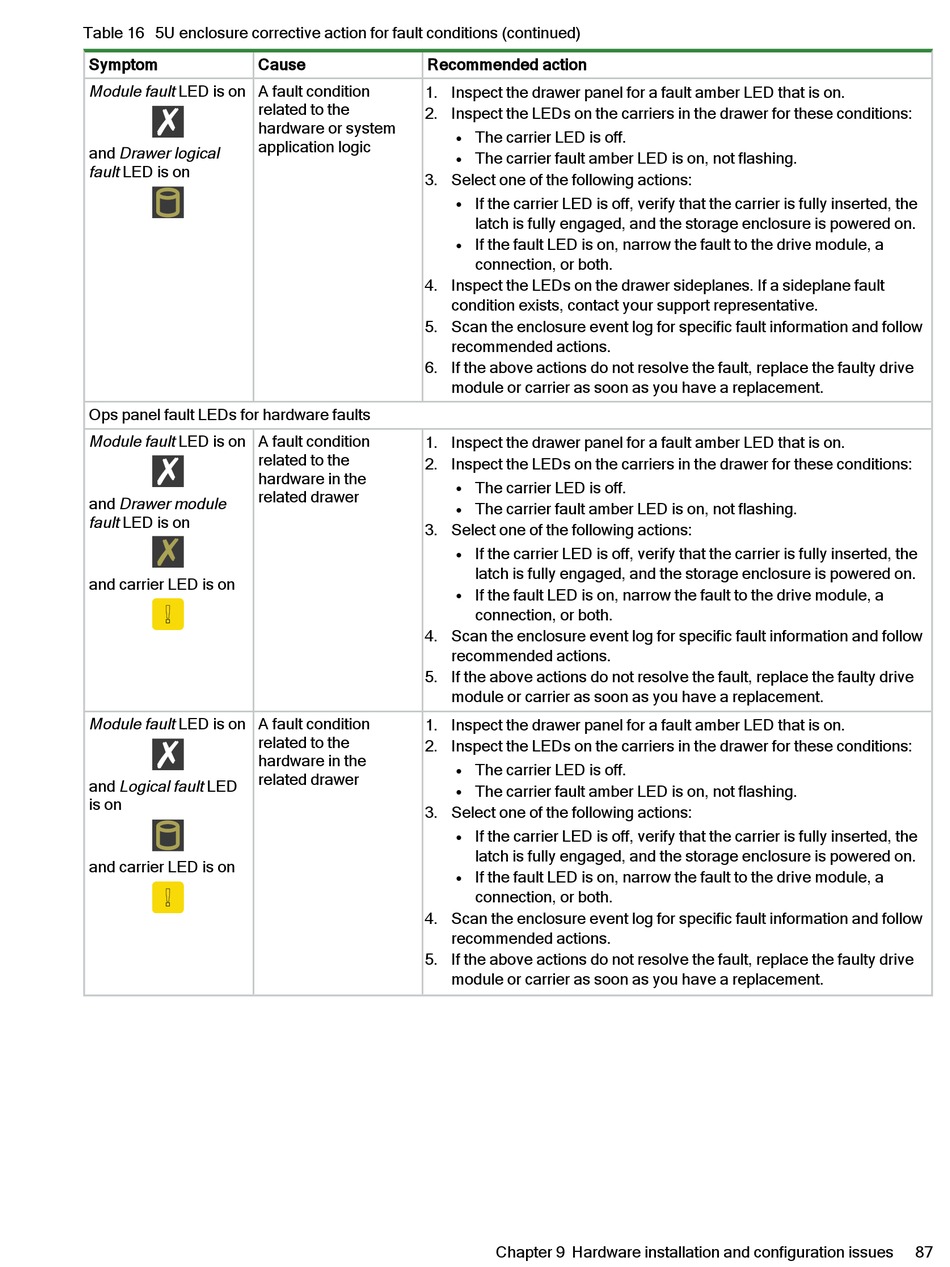

Table 16 5U enclosure corrective action for fault conditions (continued)
Symptom Cause
Module fault LED is on
A fault condition
related to the
hardware or system
application logic
and Drawer logical
fault LED is on
Ops panel fault LEDs for hardware faults
Module fault LED is on A fault condition
related to the
hardware in the
related drawer
and Drawer module
fault LED is on
and carrier LED is on
Module fault LED is on A fault condition
related to the
hardware in the
related drawer
and Logical fault LED
is on
and carrier LED is on
Recommended action
1. Inspect the drawer panel for a fault amber LED that is on.
2. Inspect the LEDs on the carriers in the drawer for these conditions:
The carrier LED is off.
l
The carrier fault amber LED is on, not flashing.
l
3. Select one of the following actions:
If the carrier LED is off, verify that the carrier is fully inserted, the
l
latch is fully engaged, and the storage enclosure is powered on.
If the fault LED is on, narrow the fault to the drive module, a
l
connection, or both.
4. Inspect the LEDs on the drawer sideplanes. If a sideplane fault
condition exists, contact your support representative.
5. Scan the enclosure event log for specific fault information and follow
recommended actions.
6. If the above actions do not resolve the fault, replace the faulty drive
module or carrier as soon as you have a replacement.
1. Inspect the drawer panel for a fault amber LED that is on.
2. Inspect the LEDs on the carriers in the drawer for these conditions:
The carrier LED is off.
l
The carrier fault amber LED is on, not flashing.
l
3. Select one of the following actions:
If the carrier LED is off, verify that the carrier is fully inserted, the
l
latch is fully engaged, and the storage enclosure is powered on.
If the fault LED is on, narrow the fault to the drive module, a
l
connection, or both.
4. Scan the enclosure event log for specific fault information and follow
recommended actions.
5. If the above actions do not resolve the fault, replace the faulty drive
module or carrier as soon as you have a replacement.
1. Inspect the drawer panel for a fault amber LED that is on.
2. Inspect the LEDs on the carriers in the drawer for these conditions:
The carrier LED is off.
l
The carrier fault amber LED is on, not flashing.
l
3. Select one of the following actions:
If the carrier LED is off, verify that the carrier is fully inserted, the
l
latch is fully engaged, and the storage enclosure is powered on.
If the fault LED is on, narrow the fault to the drive module, a
l
connection, or both.
4. Scan the enclosure event log for specific fault information and follow
recommended actions.
5. If the above actions do not resolve the fault, replace the faulty drive
module or carrier as soon as you have a replacement.
