Required equipment
Outer rails, properly oriented
#2 Phillips-head screwdriver, 6-in length
(Optional) 8mm nut driver, 6-in length
Phillips-head screw, M5 x 15, 8mm hex flange
To install the 5U rackmount rail kit:
1. Remove both rail assemblies from their packaging.
2. Orient the rail with the LH FRONT embossed on it to your left, the other with the RH FRONT embossed on it
to your right, and each emboss toward you, facing inward.
1 2
Item Description
1 Left front mount
bracket
2 Left rail shelf
6 7
Item Description
3 Rail slide set
screw
4 Left rear tail

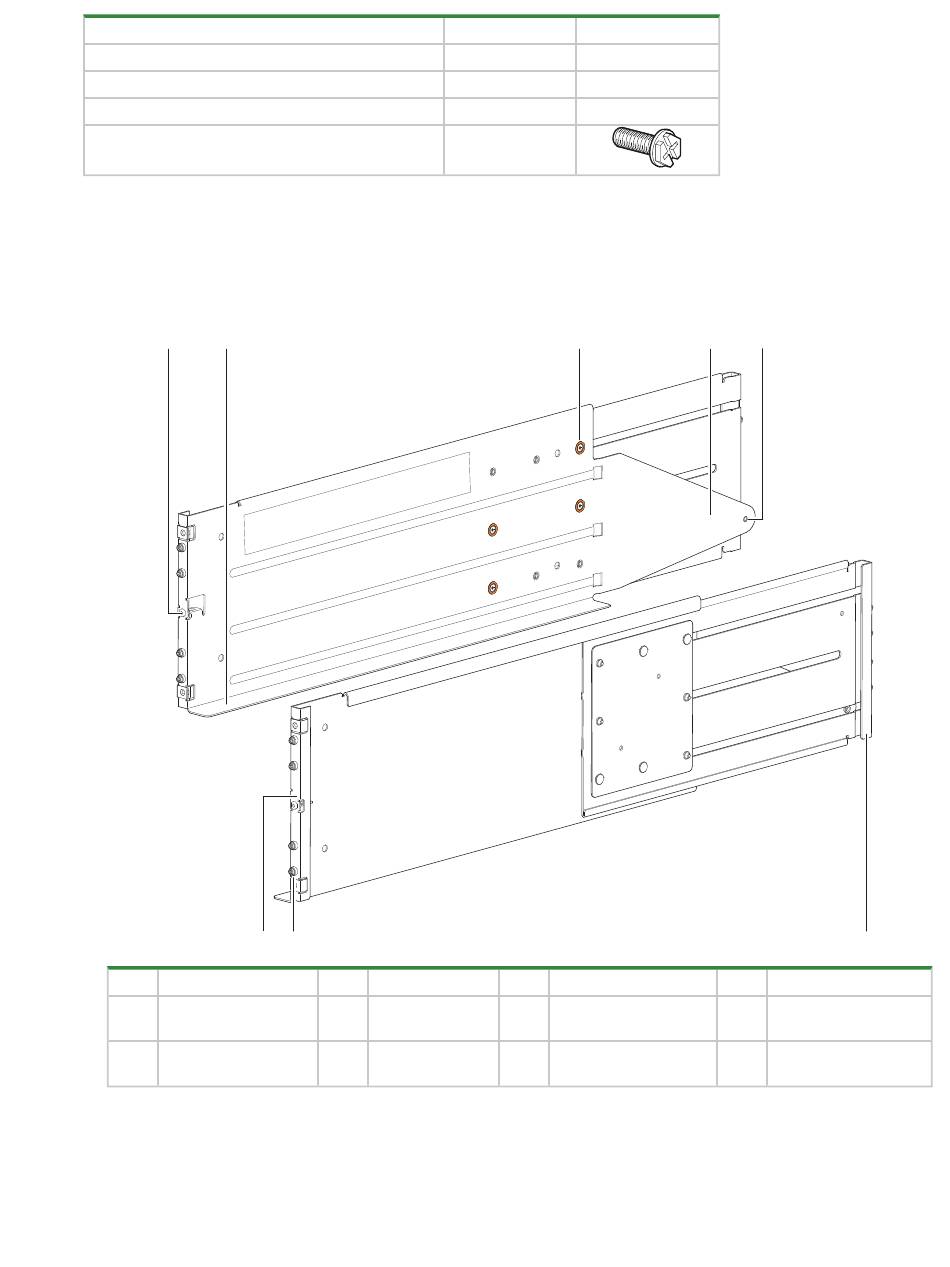

Figure 21 5U left and right rail components

Qty Identification
2 N/A
1 N/A
1 N/A
8
3
Item Description
5 Rear mount
6 Right front mount
bracket
Chapter 5 Installation of 5U enclosures
4 5
8
Item Description
7 Rack pin
8 Right rear mount
bracket
